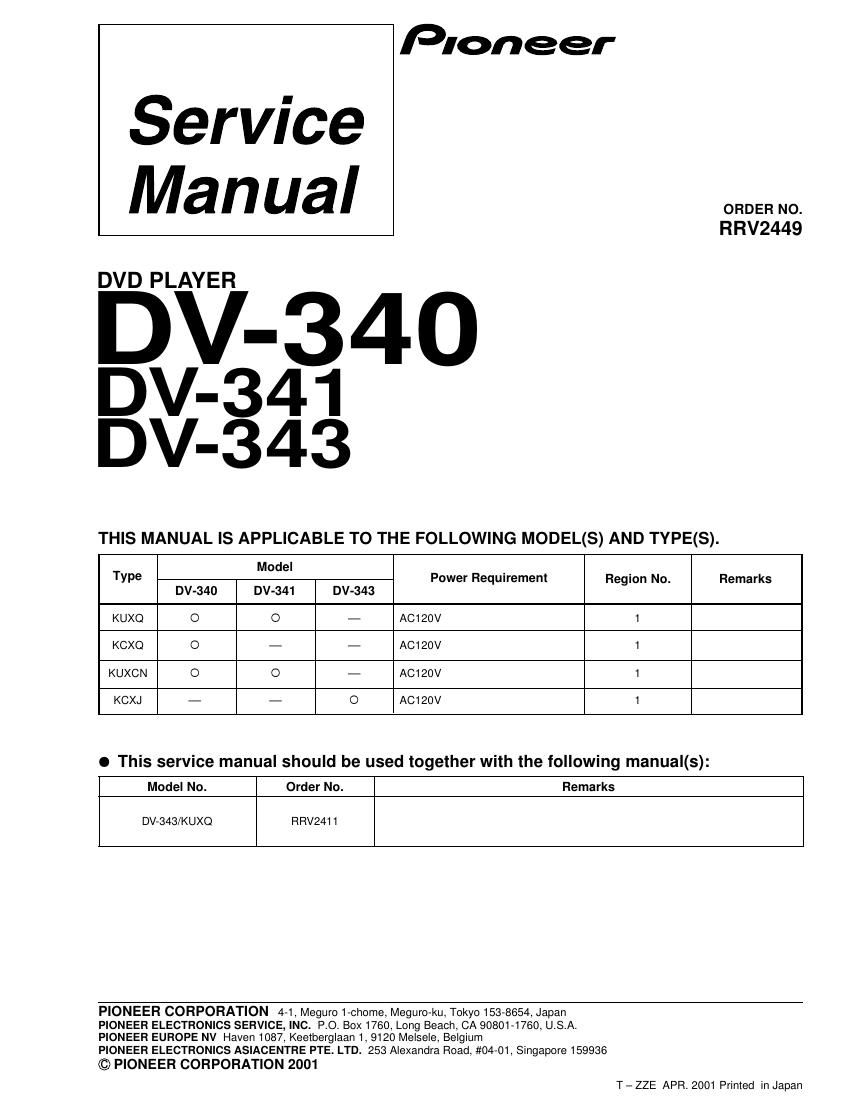

Page 1
Pioneer
Service
Manual
RRV2449
DVD PLAYER
DV- 40
DV-341
DV-343
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
TYPE Model Power Requirement Region No. Remarks
DV-340 DV-341 DV-343
KUXQ O o - AC120V 1
KCXQ O - - AC120V 1
KUXCN O o - AC120V 1
KCXJ - - O AC120V 1
o This service manual should be used together with the following manual(s):
Model No. Order No. Remarks
DV-343/KUXQ RRV2411
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Meisele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
© PIONEER CORPORATION 2001
T-ZZE APR. 2001 Printed in Japan
Page 2
DV-340, DV-341, DV-343
1. CONTRAST OF MISCELLANEOUS PARTS
NOTES .'
0 Parts marked by NSP " are generally unavailable because they are not in our Master Spare Parts List.
0 The A mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
0 Reference Nos. indicate the pages and Nos. in the service manualfor the base model.
0 When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm ( tolerance is shown by
J = 5%, andK = 10%).
5609*56X10->561. RDl/4PU-E
47kQ->47><103->473 RDl/4PUEE
0.5Q->R50 ................. RN2H®-@K
IQ->1R0 ............................. RS]Pm®@K
Ex. 2 When there are 3 eflective dig n high prec ion metal film resistors).
5.62kQ->562><10->5621 ........................................... RN1/4PC-EEEF
l CONTRAST TABLE for DV-340/KUXQ and DV-341/KUXQ
DV-340/KUXQ, DV-341/KUXQ and DV-343/KUXQ are constructed the same except for the following:
Ref. M . . Part No.
ark Symbol and Description Remarks
"0- DV-343/KUXQ DV-340/KUXQ DV-341/KUXQ
PCB ASSEMBLIES
NSP FLJB Assy VWM2076 VWM2099 VWM2099
P5 - 4 L FLJB Assy VWV1830 VWV1864 VWV1864
PACKING
P3 - 9 Packing Case VHG2015 VHG2082 VHGZOB4
P3 -13 Operating Instructions (English) VRB1263 VRB1271 VRB1271
EXTERIOR
P5 -12 Rear Panel VNA2270 VNA2343 VNA2351
P5 -15 Pioneer Name Plate VAM1109 VAM1116 VAM1109
P5 -16 Tray Panel VN K4752 VNK4790 VNK4915
P5 -17 Front Panel Assy VXA2426 VXA2468 VXA2471
P5 -20 Bonnet Case S VXX2757 VXX2759 VXX2757
P5 -24 Screw BCZ40P060FZK BCZ4OP060FN| BCZ40P060FZK
P5 -26 FL Lens VNK4745 Not used Not used
P5 -26 NSP FL Lens Not used VNK4789 VNK4789
NSP Sensormatic Seal Not used VAN1002 Not used For Bonnet Case
0 For PCB assemblies, Refer to "CONTRAST OF PCB ASSEMBLIES.
