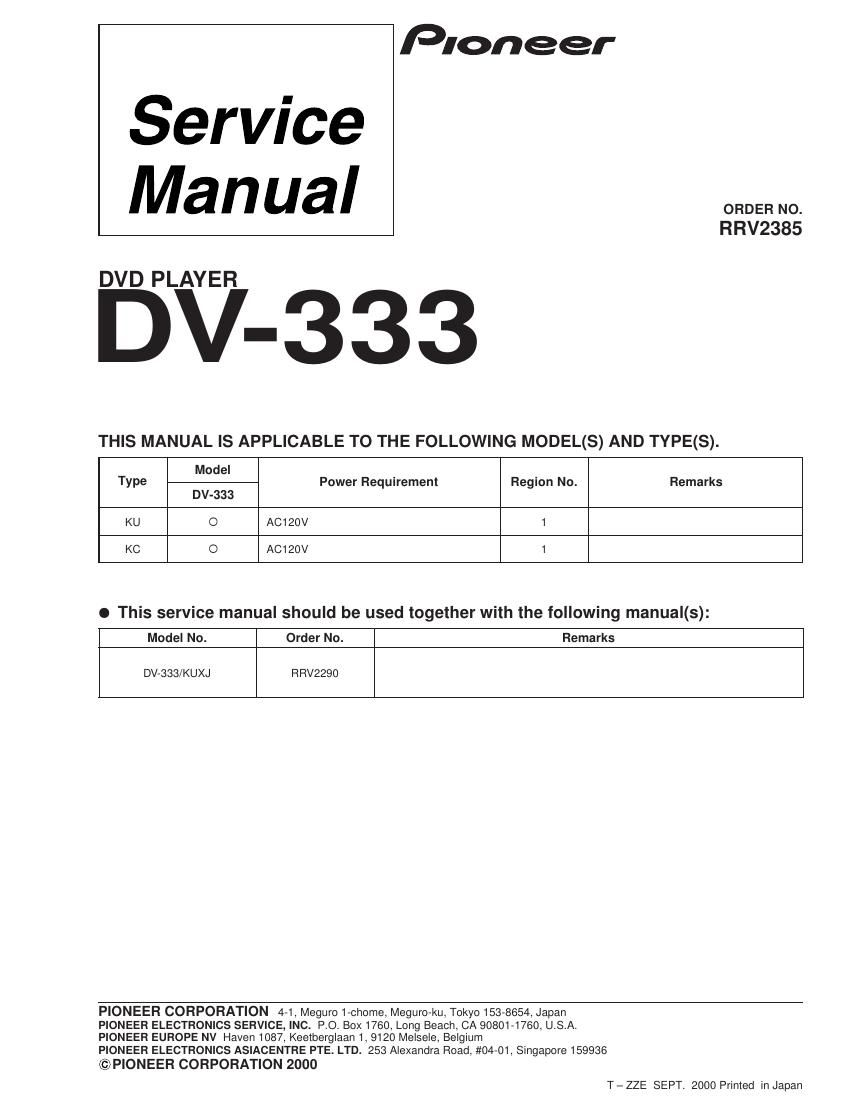

Pioneer dv 333 service manual

Page 1

DV-333 2 7 CONTRAST TABLE for KU TYPE DV-333/KU and KUXJ are constructed the same except for the following: PACKING P3 - 1 Power Cord ADG7022 ADG7021 P3 - 2 Audio Cord VDE1052 VDE1033 P3 - 3 Video Cord VDE1053 VDE1034 P3 - 9 Packing Case VHG1901 VHG1989 EXTERIOR SECTION P5 -12 Rear Panel VNA2161 VNA2256 P5 -17 Front Panel Assy VXA2391 VXA2438 LOADING MECHANISM ASSY P6 - 7 Belt VEB1315 VEB1320 P6 -15 Flexible Cable (08P) VDA1822 VDA1854 P6 -18 Flexible Cable (24P) VDA1821 VDA1843 Ref. No.Remarks KUXJ type KU typePart No. Mark Symbol and Description 1. CONTRAST OF MISCELLANEOUS PARTS NOTES :ÖParts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. ÖThe mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. ÖScrew adjacent to ° mark on the product are used for disassembly. ÖReference Nos. indicate the pages and Nos. in the service manual for the base model. 7 CONTRAST TABLE for KC TYPE DV-333/KC and KCXJ are constructed the same except for the following: PACKING P3 - 1 Power Cord ADG7022 ADG7021 P3 - 2 Audio Cord VDE1052 VDE1033 P3 - 3 Video Cord VDE1053 VDE1034 P3 - 9 Packing Case VHG1923 VHG1989 KC Label Not used VRW1716 For Packing Case EXTERIOR SECTION P5 -12 Rear Panel VNA2161 VNA2256 P5 -17 Front Panel Assy VXA2391 VXA2438 LOADING MECHANISM ASSY P6 - 7 Belt VEB1315 VEB1320 P6 -15 Flexible Cable (08P) VDA1822 VDA1854 P6 -18 Flexible Cable (24P) VDA1821 VDA1843 Ref. No.Remarks KCXJ type KC typePart No. Mark Symbol and Description
