Pioneer dv 290 k service manual
This is the 2 pages manual for pioneer dv 290 k service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer dv 290 k service manual (Ocr-read)
Page 1

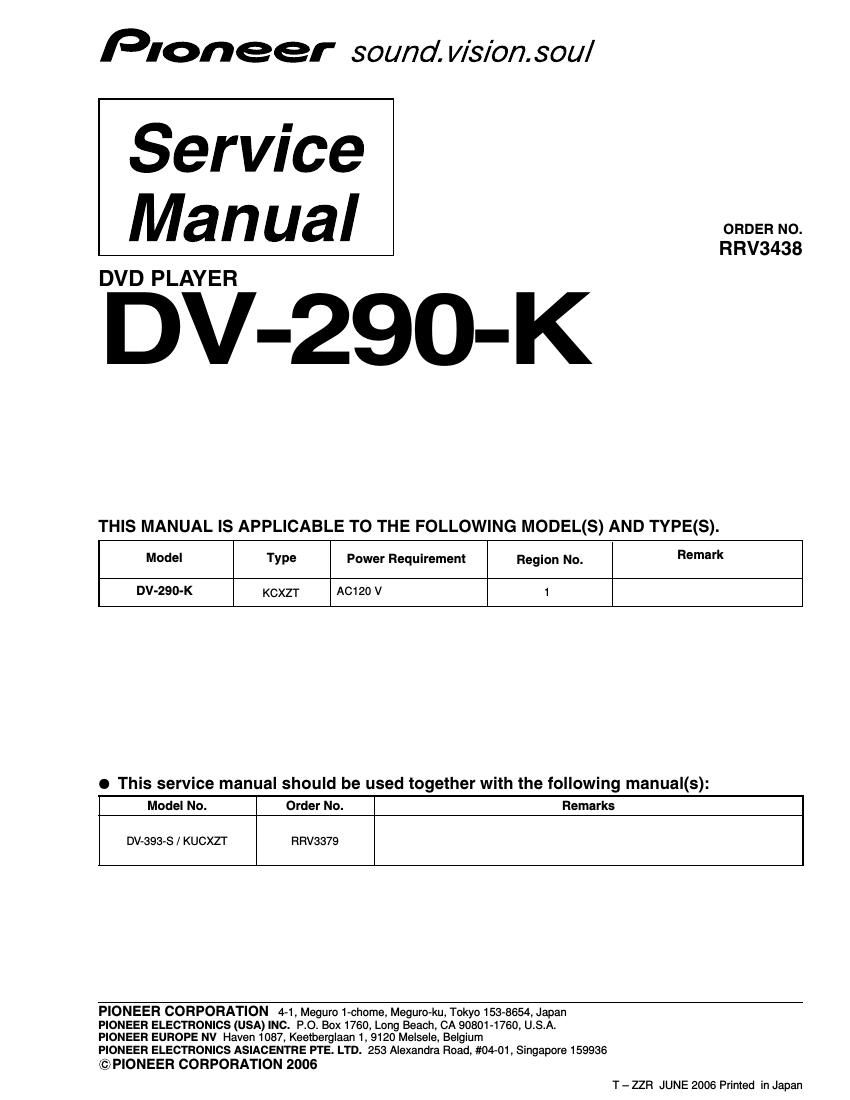

2 1 23 4 1234 C D F A B E DV-290-K 1. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: CONTRAST TABLE DV-290-K/KCXZT and DV-393-S/KUCXZT are constructed the same except for the following: DV-393-S / KUCXZTDV-290-K / KCXZT PACKING SECTION P7- 6 NSP GUARNTEE CARD J2I80102A J2D30902A P7-15 GIFT BOX 793WCD1754 793WCDD234 EXTERIOR SECTION P9-14 CABINET, TOP 702WSB0114 702WSB0115 P9-20 SCREW, TAP TITE (B) 8109K3060U 8109K3060S P9-24 NSP SHEET, JACK 2 7226310104 722631A127 P9-25 NSP SHEET, JACK 3 7226310103 722631A128 P9-101 FRONT, CABI ASSY 7A7010210A 7A701A762A P9-101D FLAP, DVD 712WPD184 712WPJC270 Ref. No.Remarks Part No. MarkSymbol and Description
