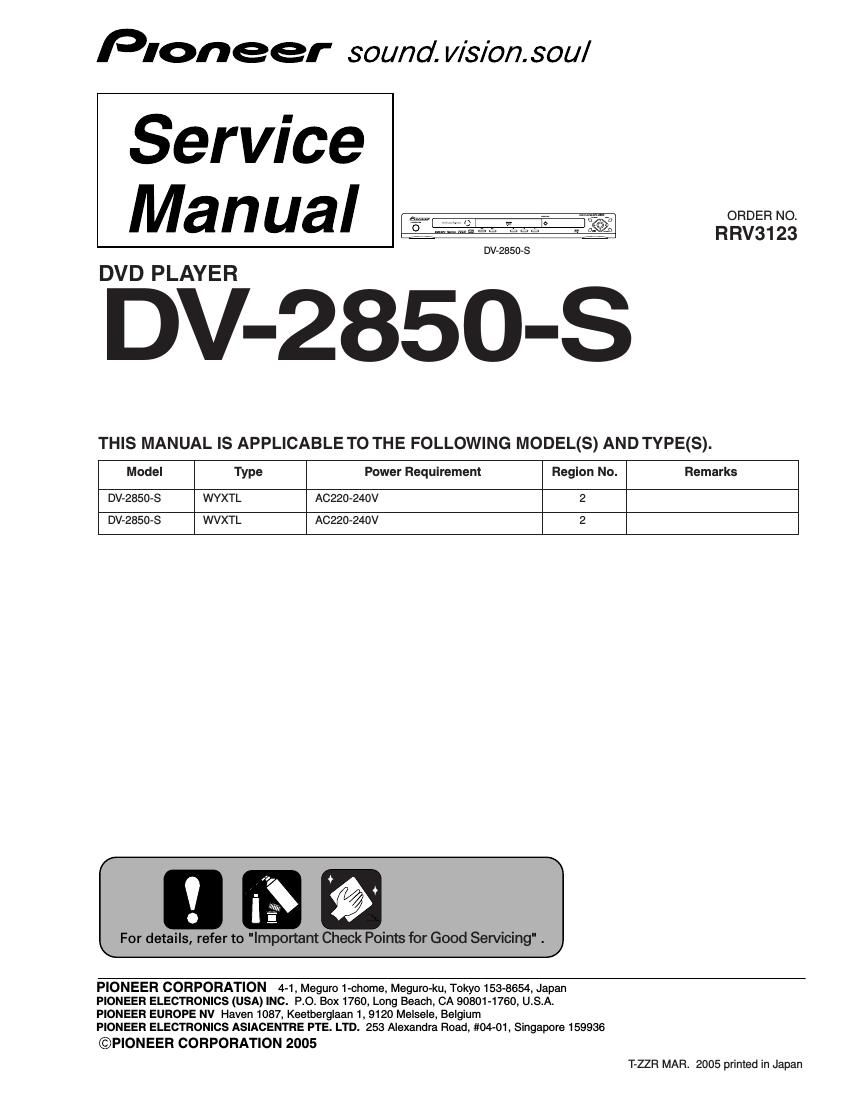

Page 1

Pioneer sound. vision. soul

Service
Manual

ORDER NO.
RRV31 23
Dvrzssors
DVD PLAYER
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model Type Power Requirement Region No. Remarks
DV-2850-S WYXTL AC220-240V 2
DV-2850-S WVXTL A0220-240V 2

w, o
' (1%
la

For details, refer to "important Check Points for Good Servicing" .

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. PO. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keelberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©P|ONEER CORPORATION 2005
T-ZZR MAR. 2005 printed in Japan

Page 2

SAFETY INFORMATION

This service manual is intended for qualified service technicians ; it is not meant for the casual do-
it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and
may void the warranty. If you are not qualified to perform the repair of this product properly and
safely, you should not risk trying to do so and refer the repair to a qualified service technician.

WARNING !

THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1
BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR
CLASS 1.

A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS.

LASER DIODE CHARACTERISTICS -

FOR DVD: MAXIMUM OUTPUT POWER : 5 mW
WAVELENGTH : 650 nm

FOR CD: MAXIMUM OUTPUT POWER : 5 mW
WAVELENGTH : 780 nm

LABELCHECK

Location: inside of the unit

CAUTION : VlSlBLE AND INVlSIBLE LASER RADlATION WHEN OPEN. AVOlD EXPOSURE TO BEAM 7260000356 SH
VORSICHT SIGHTBARE UND UNSICHTBARE LASERSTRAHLUNGWENNABDECKUNG GEOFFNET NIGHT DEM STRAHL AUSSETZEN

ADVARSEL SVNLlG oe USVNLlG LASERSTRAUNG VED ABMNG UNDGA UDSIETTELSE FOR srRALme

VAFINING : SVNLlG OCH OSYNLlG LASERSTRALNING MAR DENNA DEL AR OPPNAD BEIRAKTA EJ STRALEN

VARO! : AVAWAESSA ALTISTUT NAKWA JA NAKVMATTGMALLE LASERSATEIL VLLE. ALA KATSO SATEESEN

CUIDADO . RADlAClON LASER VlslBLE E lNVlSlBLE AL ESTAR ABIERTO EVITAR EXPOSICION AL RAVO

Additional Laser Caution

CLASSl L

0 Laser diode is driving with Q2303,Q2305(650nm LD) and 02302,
02304(780nm LD)on the DVD MT PCB Assy.

Therefore, when shortvcircuit between the emitter and collector of these

transistors or the base voltage is supplied for transistors turn on, the

laser oscillates. (failure mode)

0 In the test mode 9r , there is the mode that the laser oscillates except

for the discjudgment and playback. LD ON mode in the test mode

oscillates with the laser forcibly.

LASERPRODUCT

(Printed on the Rear Panel)

2. When the cover is open, close viewing through the objective lens with
the naked eye will cause exposure to the laser beam.

r : See page 53.
