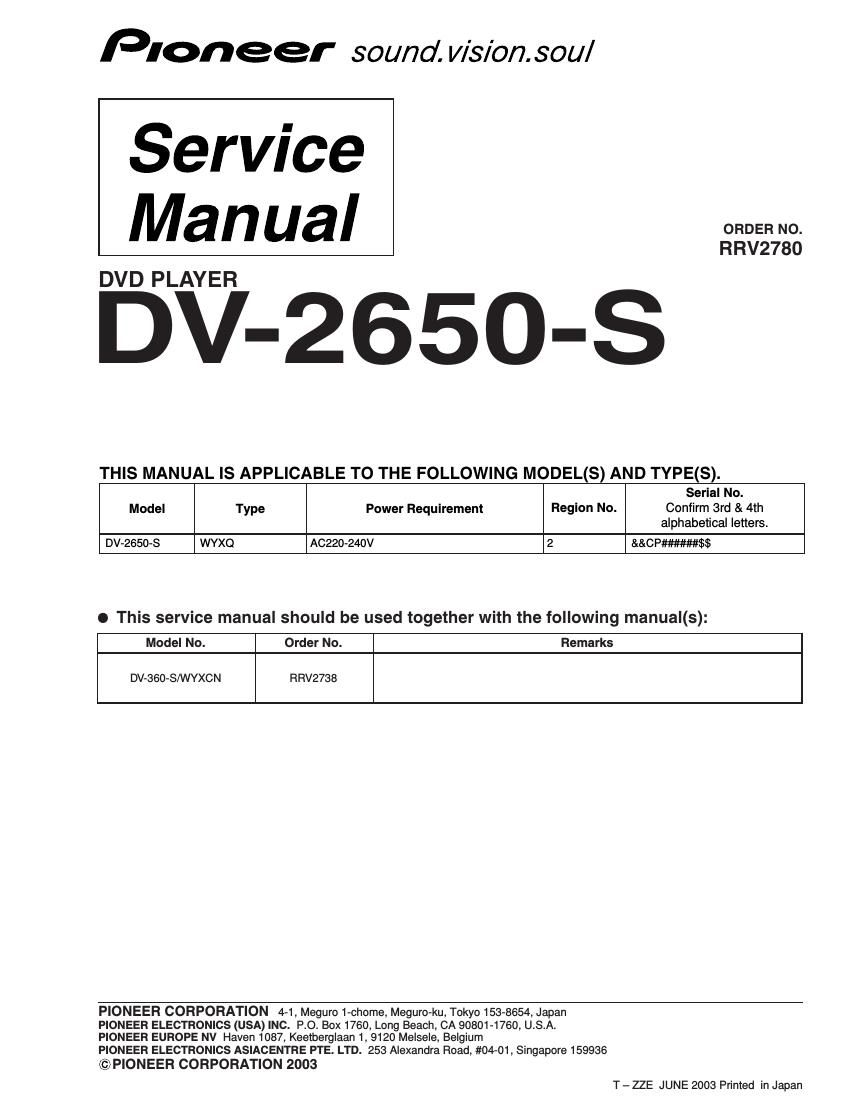

Pioneer dv 2650 s service manual
This is the 5 pages manual for pioneer dv 2650 s service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer dv 2650 s service manual (Ocr-read)
Page 1
2 1 23 4 1234 C D F A B E DV-2650-S 1. CONTRAST OF MISCELLANEOUS PARTS 7 CONTRAST TABLE DV-2650-S/WYXQ and DV-360-S/WYXCN are constructed the same except for the following: -For PCB assemblies, Refer to PCB PARTS LIST and 2. SCHEMATIC DIAGRAM. PCB ASSEMBLIES NSP 1..FLKB Assy VWM2171 VWM2176 P11 - 1 2..FLKY Assy VWG2408 VWG2413 P11 - 2 NSP 2..IRKY Assy VWG2415 VWG2414 P9 -21 NSP 2..SCRB Assy VWV1934 VWV1934 PACKING P7 - 2 Audio / Video Cable VDE1078 VDE1077 P7 - 5 NSP AA/R6P Dry Cell Batteries VEM1010 VEM1030 P7 -15 Packing Case VHG2343 VHG2403 EXTERIOR SECTION P9 - 4 Connector Assy VKP2280 PF13PP-D25 P9 - 5 Flexible Cable (15P) VDA1962 VDA1963 P9 - 6 Connector Assy (5P) VKP2299 VKP2301 P9 -11 NSP Base Chassis VNA2562 VNA2614 P9 -12 Rear Panel VXA2598 VNA2590 P9 -13 PCB Base VNE2279 VNE2278 P9 -15 Tray Panel VNK5184 VNK5155 P9 -20 Flexible Cable (20P) VDA1950 VDA1949 FRONT PANEL SECTION P11 - 3 Connector Assy (4P) VKP2298 VKP2300 P11 - 6 Front Panel Assy VXA2607 VXA2592 Ref. No.Remarks DV-360-S/WYXCN DV-2650-S/WYXQ Part No. Mark Symbol and Description Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 561 473 R50 1R0 5621 560 Ω 47k Ω 0.5 Ω 1 Ω RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0561 473 5.62k Ω RN1/4PC F 562 x 10 1 5621
Page 2
3 5 678 5 67 8 C D F A B E DV-2650-S FLKY ASSY [VWG2413] SEMICONDUCTORS IC101 PE5374A SWITCHES AND RELAYS S105–S107, S109–S118 ASG7013 CAPACITORS C183 CKSRYB102K50 C102, C105 CKSRYF104Z25 C104 CKSRYF104Z50 RESISTORS All Resistors RS1/16S###J OTHERS CN102 CONNECTOR B4B-PH-K V101 FLUORESCENT TUBE VAW1077 CN101 15P CONNECTOR VKN1219 FL HOLDER(FE) VNE2313 X101 (5MHz) VSS1142 IRKY ASSY [VWG2414] SWITCHES AND RELAYS S101, S103, S104 ASG7013 CAPACITORS C182 CKSRYF104Z25 RESISTORS All Resistors RS1/16S###J OTHERS CN104 CONNECTOR B4B-PH-K IC103 REMOTE RECEIVER RPM7240-H4 F C F D Mark No. Description Part No. 7 PCB PARTS LIST
