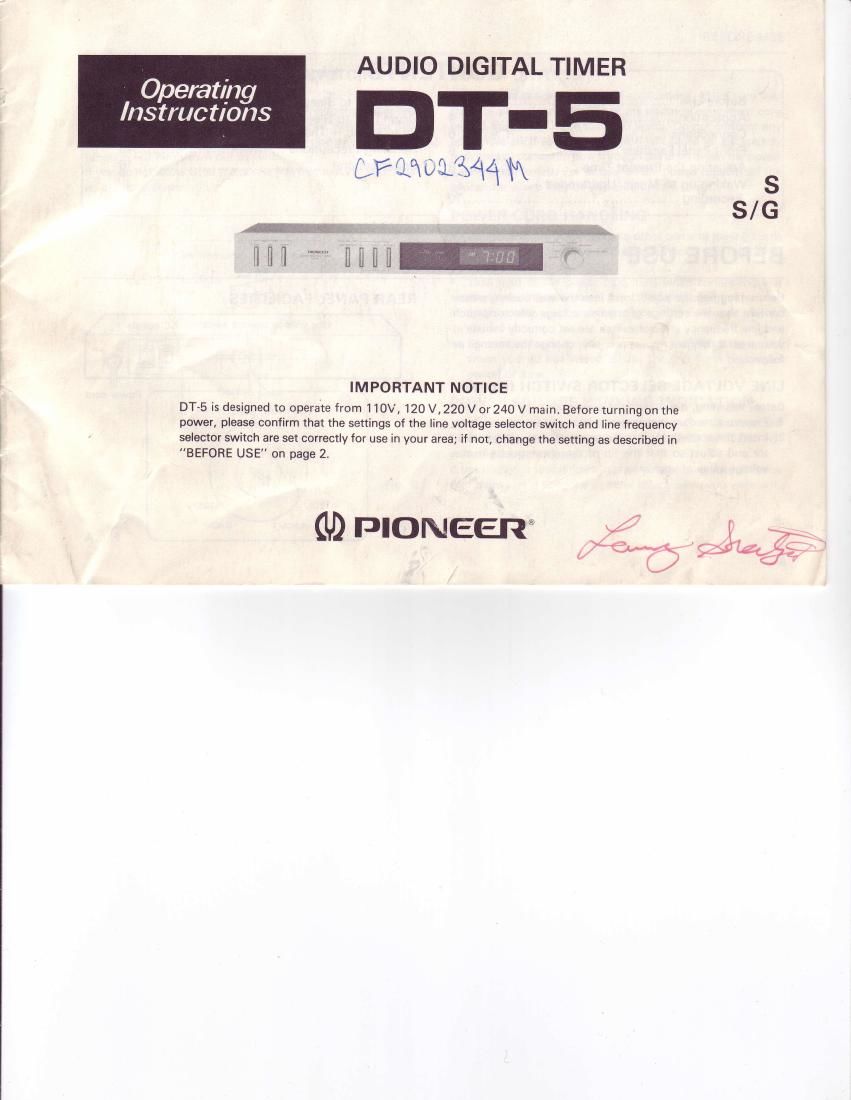

Pioneer dt 5 owners manual
This is the 16 pages manual for pioneer dt 5 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer dt 5 owners manual (Ocr-read)
Page 1
-l I CONTENTS BEFORE USE Before plugging the power cord into the wall socket, please confirm that the settings of the line voltage selector switch and line frequency selector switch are set correctly for use in your area, lf they are not set properly, change the settings as follows. LINE VOLTAGE SELECTOR SWTTCH (Fig. A) Before adjusting. disconnect the power cord. 1. Prepare a medium size screwdriver. 2. Insert the screwdriver into the arrow on the voltage selec_ tor and adjust so that the tip of the arrow points to the voltage value of vour area. REAR PANEL FACILITIES / Line voltdge selector switch nC orfo, \ --l--. I rf-- /^ llEFl lEEl \@ ) llI| lI la '/tr l' "-' IVY VC]LTAGE SELECTOFI Power cord A Fig
Page 2
BEFORE USE LINE FREOUENCY SELECTOR SWITCH (Fig. B) Set the switch to the position corresponding to the power line frequency (50 Hz or 60 Hz) used in your area. Remember that if this switch is not set properly, the time display of the clock function will be thrown out of sync. lf you do not know what the power line frequency in your area is, ask your dealer. POWER OUTLETS This timer is designed for audio applications. Make sure that the total power consumption of the electrical equipment con- nected to it is not more than 500 watts. Do not connect any appliances such as a TV set which will cause an excessively high level of current to flow through the timer when the power switch is set to ON. For details on the power capacity of the appliances which may be connected, turn to page 5. POWER CORD HANDLING . Connecting the power cord to other cords or joining cords together can cause fire and electric shocks. and thus is ex- tremely dangerous. o Take hold of the power plug itself when connecting and disconnecting the power cord. Never perform these op- erations with wet hands since you may receive an electric shock, . Remember to disconnect the power plug from the outlet when you do not intend to use the unit for a prolonged oeriod of time. POWER FAILURE WINKING INDICATION When the timer's power plug is connected to, or disconnected from, the household power outlet, "AM 12:00" or "0:00" will wink on the time display. lf this display is found flashing after you return home, it means that there was a ternporary power failure while you were out. frequency selector switch :'l;ffi- For 60 Hz Bottom plate Fis. B
