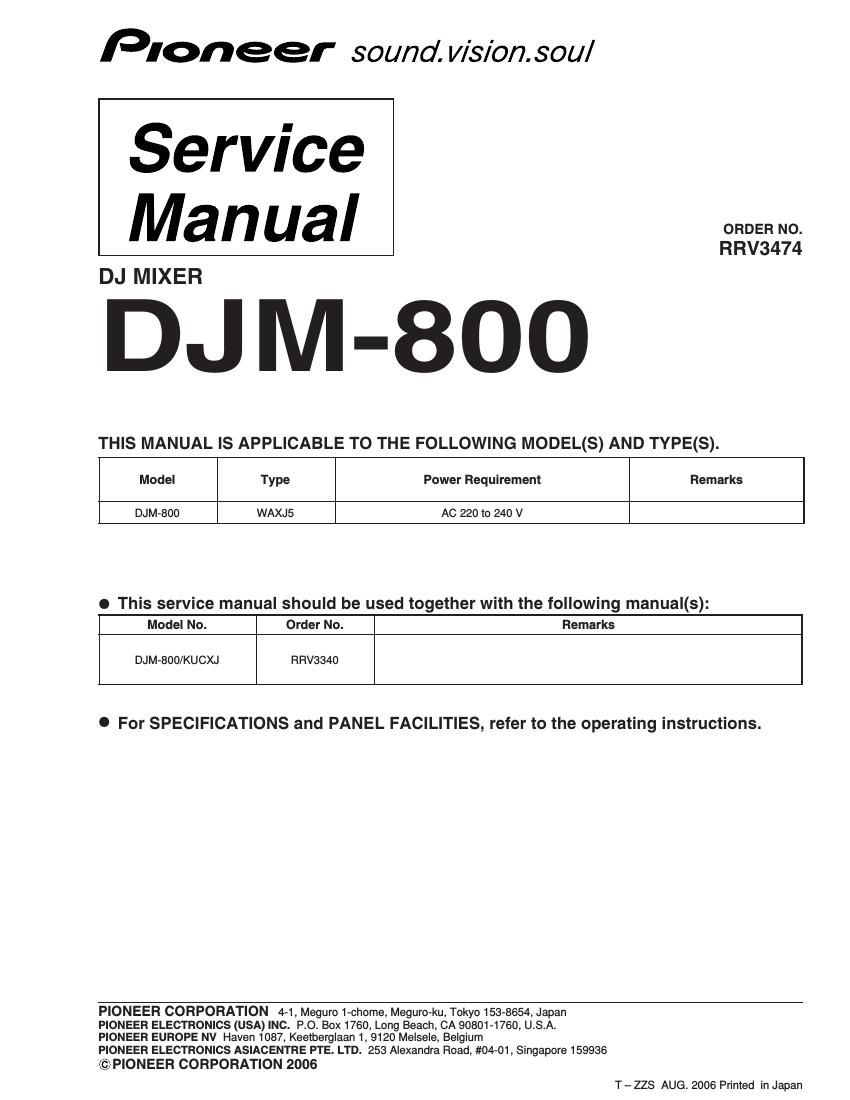

Pioneer djm 800 service manual

Page 1

2 1 23 4 1234 C D F A B E DJM-800 1. CONTRAST OF MISCELLANEOUS PARTS jpfy For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: -When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω→56 × 10 1 →561........................................................RD1/4PU 5 6 1 J 47k Ω→47 × 10 3 →473........................................................RD1/4PU 4 7 3 J 0.5 Ω→R50.....................................................................................RN2H R 5 0 K 1 Ω→1R0.....................................................................................RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω→562 × 10 1→5621......................................................RN1/4PC 5 6 2 1 F CONTRAST TABLE Ref.Part No. No.Mark Symbol and Description DJM-800 DJM-800Remarks /KUCXJ /WAXJ5 PACKING SECTION P7-5 Instruction Manual (English) DRB1393 Not used P7-5 Instruction Manual (English, Chinese) Not used DRB1395 P7-6 Packing Case DHG2559 DHG2603 P7-8 Power Cord DDG1028 ADG7105 P7-11 NSP Warranty Card ARY7043 Not used EXTERIOR SECTION P9-28 AC Inlet Assy DKP3761 DKP3762 P9-34 NSP Rear Panel DNC1800 DNC1793 P9-55 NSP Label DRW2294 DRW2297 P9-70 NSP Caution Label DRW1975 Not used NSP CCC S&E Label Not used DRW2310 P9-71 NSP Earth Label DRW2276 Not used NSP Serial Label DRW2311 VRW1629 DJM-800/WAXJ5 and DJM-800/KUCXJ are constructed the same except for the following :
