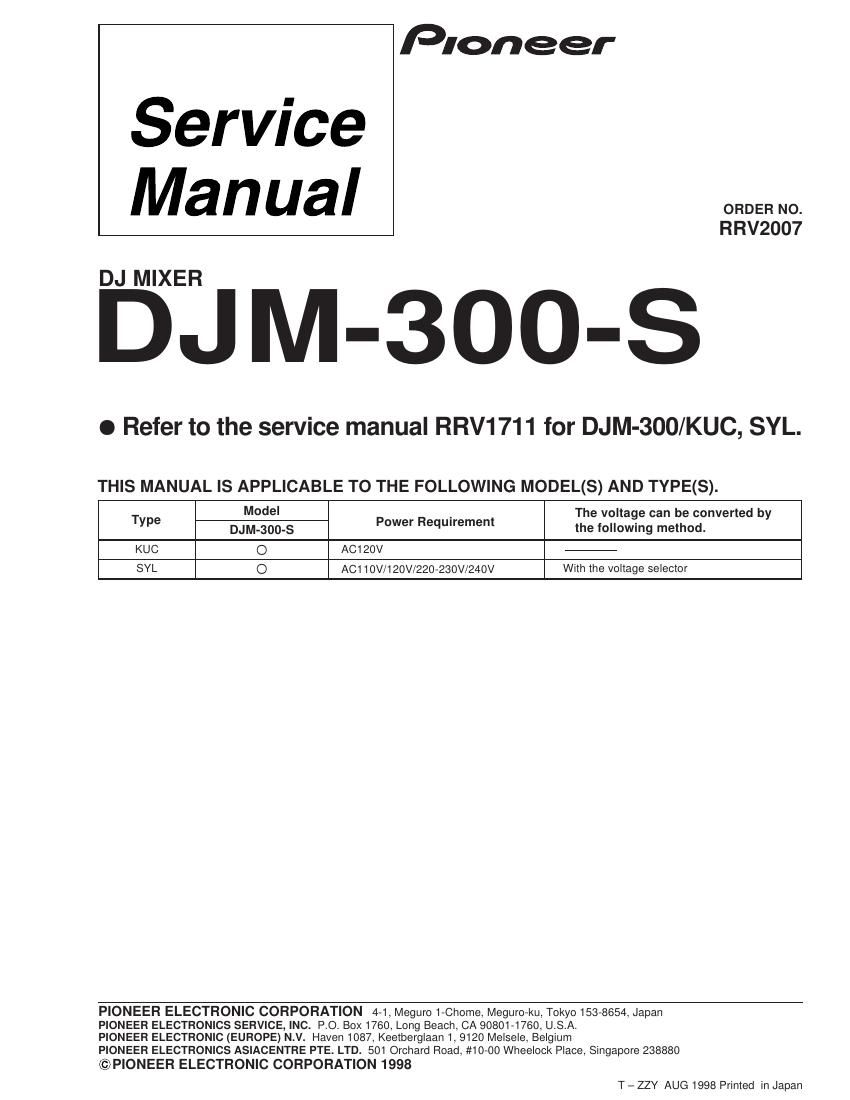

Pioneer djm 300 service manual

Page 1

DJM-300-S 2 1. CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 561 473 R50 1R0 5621 560 47k 0.5 1RD1/4PU J RD1/4PU J RN2H K RS1P K 56 x 10 1 47 x 10 3 R50 1R0561 473 5.62k RN1/4PC F562 x 10 1 5621 CONTRAST TABLE ( for DJM-300-S/SYL type) DJM-300-S/KUC and DJM-300/KUC are constructed the same except for the following : PACKING P3 - 5 Packing Case DHG1737 DHG1862 EXTERIOR P5 - 13 NSP Rear Panel DNC1438 DNC1491 FRONT PANEL SECTION P7 - 24 Slider Panel DAH1825 DAH1892 P7 - 25 Control Panel DNB1068 DNB1070 Part No. DJM-300 /KUC Ref. No. Symbol and Description Remarks MarkDJM-300-S /KUC DJM-300-S/SYL and DJM-300/SYL are constructed the same except for the following : PACKING P3 - 5 Packing Case DHG1736 DHG1861 EXTERIOR P5 - 13 NSP Rear Panel DNC1437 DNC1490 FRONT PANEL SECTION P7 - 24 Slider Panel DAH1825 DAH1892 P7 - 25 Control Panel DNB1068 DNB1070 Part No. DJM-300 /SYL Ref. No. Symbol and Description Remarks MarkDJM-300-S /SYL CONTRAST TABLE ( for DJM-300-S/KUC type)
