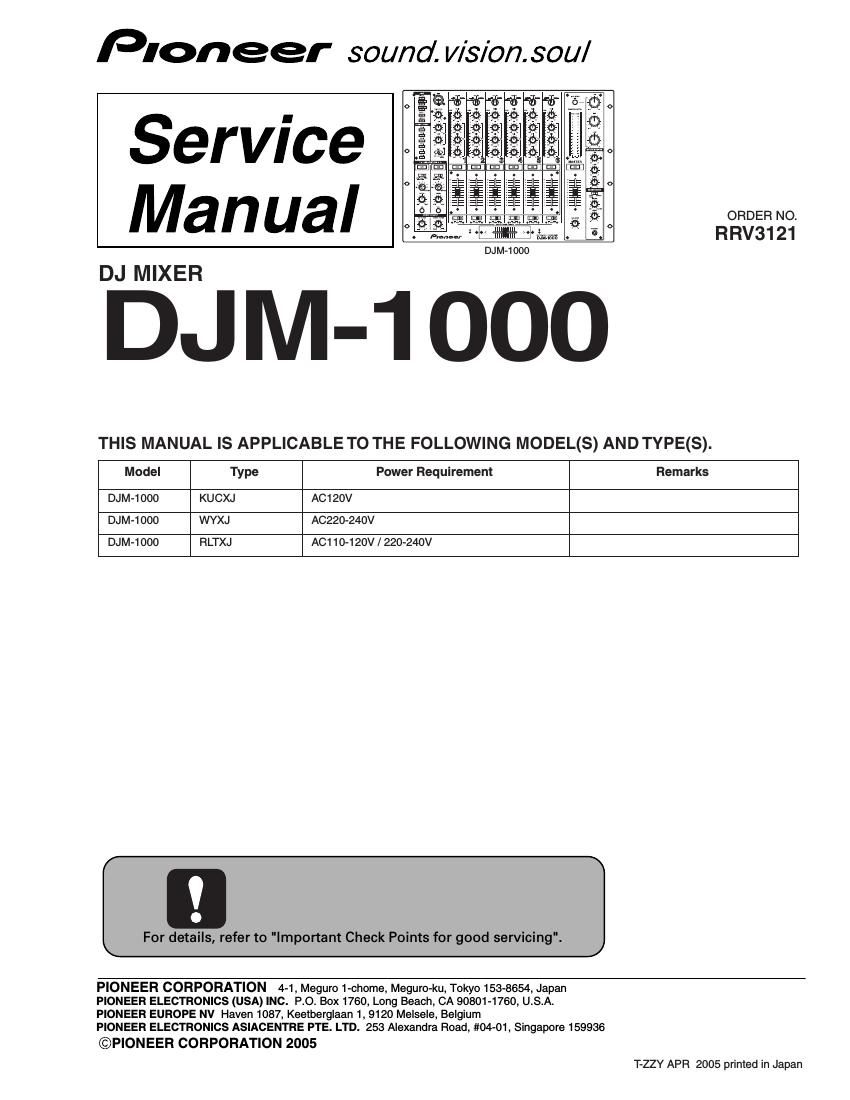

Page 1

Pioneer sound. vision. soul

Service
Manual

DJ MIXER

DJ M-1

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

ORDER NO.

RRV3121

em a. @- 9.9 e;-

DJM71000

Model Type Power Requirement Remarks
DJM-1000 KUCXJ AC120V
DJM-1000 WYXJ A0220-24OV
DJM-1000 RLTXJ AC1 10-120V / 220-240V

For details, refer to "Important Check Points for good servicing".

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

©P|ONEER CORPORATION 2005

T-ZZY APR 2005 printed in Japan

Page 2

SAFETY INFORMATION

This service manual is intended for qualified service technicians ; it is not meant for the casual do-it-
yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained
to properly and safely repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.

WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
cause cancer, birth defects or other reproductive harm.

Health & Safety Code Section 25249.6 - Proposition 65

NOTICE

(FOR CANADIAN MODEL ONLY)

Fuse symbols EEHfast operating fuse) and/or EE (slow operating fuse) on PCB indicate that replacement parts must
be of identical designation.

REMARQUE

(POUR MODELE CANADIEN SEULEMENT)

Les symboles de fusible EB (fusible de type rapide) et/ou a (fusible de type lent) sur CCI indiquent que les pieces
de remplacement doivent avoir la meme designation.

7 (FOR USA MODEL ONLY)
ANY MEASUREMENTS NOT WITHIN THE LIMITS
1' SAFETY PRECAUTIONS OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL
The f°°w'"9 Che Shou'd be performed f the SHOCK HAZARD AND MUST BE CORRECTED BEFORE
continued protection of the customer and serVIce RETURNINGTHE APPLIANCETOTHE CUSTOMER.
technICIan.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground 2. PRODUCT SAFETY NOTICE
(water pipe. conduit, etc.) by connecting a leakage Many electrical and mechanical parts in the appliance
current tester such as Simpson Model 229-2 or have special safety related characteristics. These are
equivalent between the earth ground and all exposed often not evident from visual inspection nor the protection
metal parts of the appliance (input/output terminals, afforded by them necessarily can be obtained by using
screwheads, metal overlays, control shaft, etc). Plug replacement components rated for voltage, wattage, etc.
the AC line cord of the appliance directly into a 120V Replacement parts which have these special safety
AC 60 Hz outlet and turn the AC power switch on. Any characteristics are identified in this Service Manual.
current measured must not exceed 0.5 mA. EleCtrical components having such features are
identified by marking with a Q on the schematics and on
S the parts list in this Service Manual.
0 Reading should The use of a substitute replacement component which
Leakage not be above , .
Device current 05 mA does not have the same safety characteristics as the
under tester PIONEER recommended replacement one, shown in the
5 =' |-+ parts list in this Service Manual, may create shock, fire,
Test all or other hazards.
23%;: metal Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
7" information, always consult the current PIONEER Service
63 Also testwith Manual. A subscription to, or additional copies of,
PMS reversed e Earth PIONEER Service Manual may be obtained at a nominal
(Usmg AC adapter ground
p|ug as required) charge from PIONEER.
AC Leakage Test

2 DJM-1000

1 I 2 - 3 I 4 l
