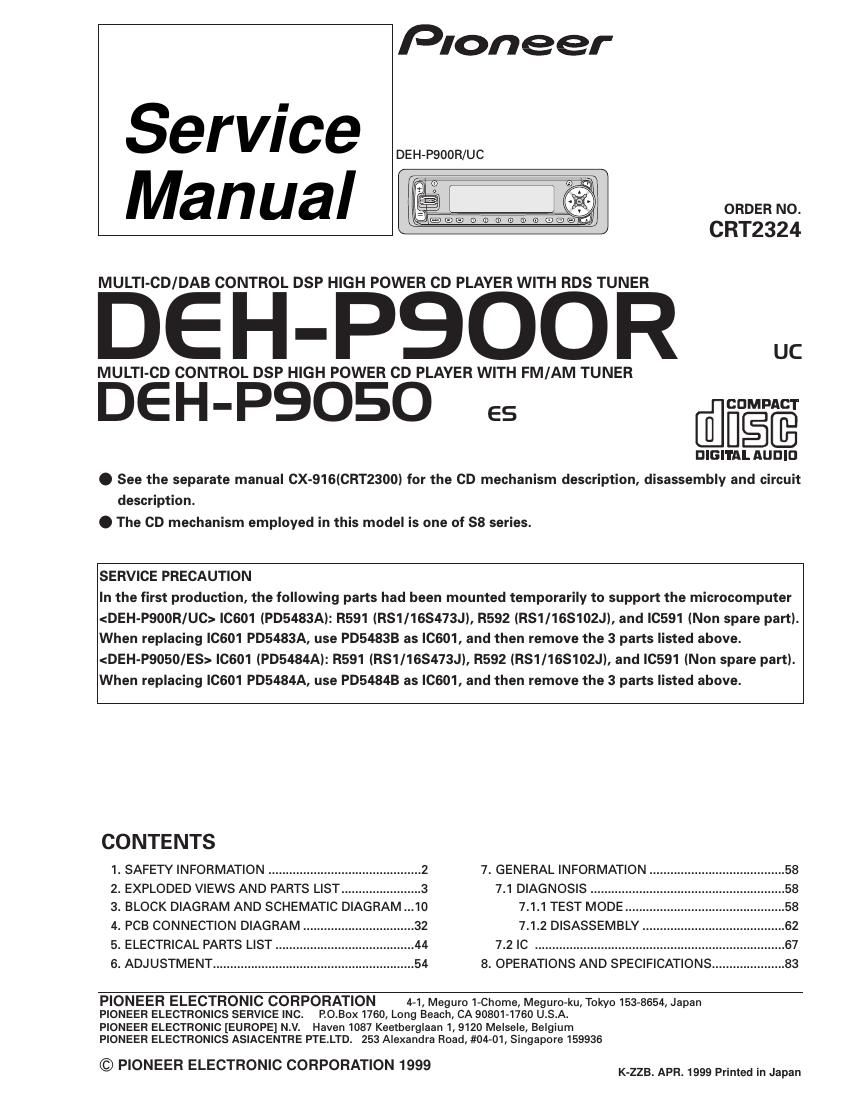

Pioneer dehp 9050 service manual
This is the 89 pages manual for pioneer dehp 9050 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer dehp 9050 service manual (Ocr-read)
Page 1
2 DEH-P900R,P9050 -CD Player Service Precautions 1. For pickup unit(CXX1285) handling, please refer to"Disassembly"(see page 62). During replacement, handling precautions shall be taken to prevent an electrostatic discharge(protection by a short pin).2. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a con- nector is plugged or unplugged. 3. Please checking the grating after changing the ser- vice pickup unit(see page 56). 1. SAFETY INFORMATION CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. W ARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65
Page 2
DEH-P900R,P9050 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 8 1 2226 21 27 25 24 28 1318 197 15 10 11 12 14 9 1617 23 20 6 5 23 4 3
