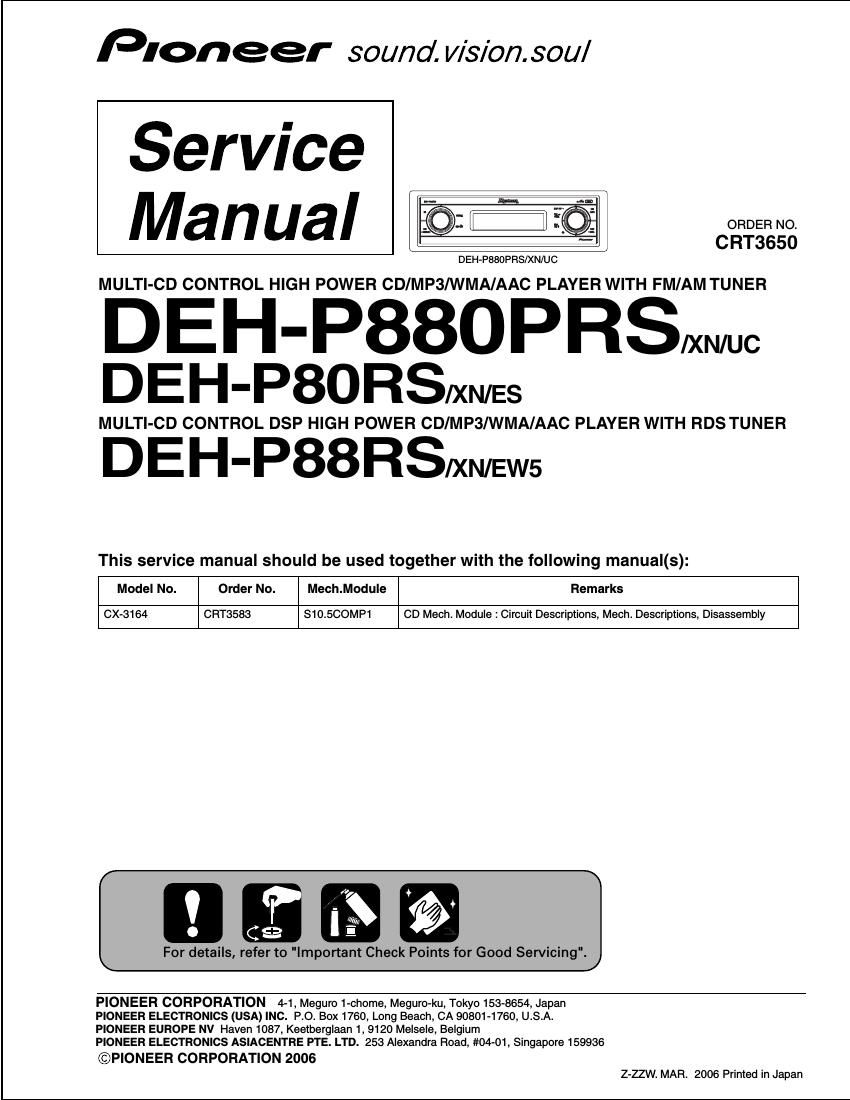

Page 1

Pioneer sound. vision. sou/

Service
Manual

ORDER NO.

CRT3650

DEH~PSBOPRSIXNIUC

MULTI-CD CONTROL HIGH POWER CD/MP3NVMA/AAC PLAYER WITH FM/AM TUNER

D E H'P880 P RS/XN/UC
DEH-PBORS/xwes

MULTI-CD CONTROL DSP HIGH POWER CD/MP3NVMA/AAC PLAYER WITH RDS TUNER

DEH-P88RS/xmews

This service manual should be used together with the following manual(s):

Model No. Order No.

Mech.Module

Remarks

CX-3164 CRT3583

S10.SCOMP1

CD Mech. Module :Circuit Descriptions, Mech. Descriptions, Disassembly

n 9 .
E

For details, refer to "Important Check Points for Good Servicing".

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

©PIONEER CORPORATION 2006

Z-ZZW. MAR. 2006 Printed in Japan

Page 2

SAFETY INFORMATION

CAUTION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely
repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.

WARNING

This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of
California to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65

. Safety Precautions for those who Service this Unit.

- When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable
results.

Caution:
1. During repair or tests, minimum distance of 13cm from the focus lens must be kept.
2. During repair or tests, do not view laser beam for 10 seconds or longer.

CAUTION:
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION

This product contains a laser diode of higher class
than i.To ensure continued safety, do not
remove any covers or attempt to gain access to
the insrde of the product.

Refer all servicing to qualified personnel.

The followmg caution label appears on your unit.

Location: on the bottom of the unit

CLASS 1

LASER PRODUCT

En

DEH-PBBOPRS/XN/UC
1 I 2 3 I 4
