Extracted text from pioneer dehp 7850 bt schematic (Ocr-read)

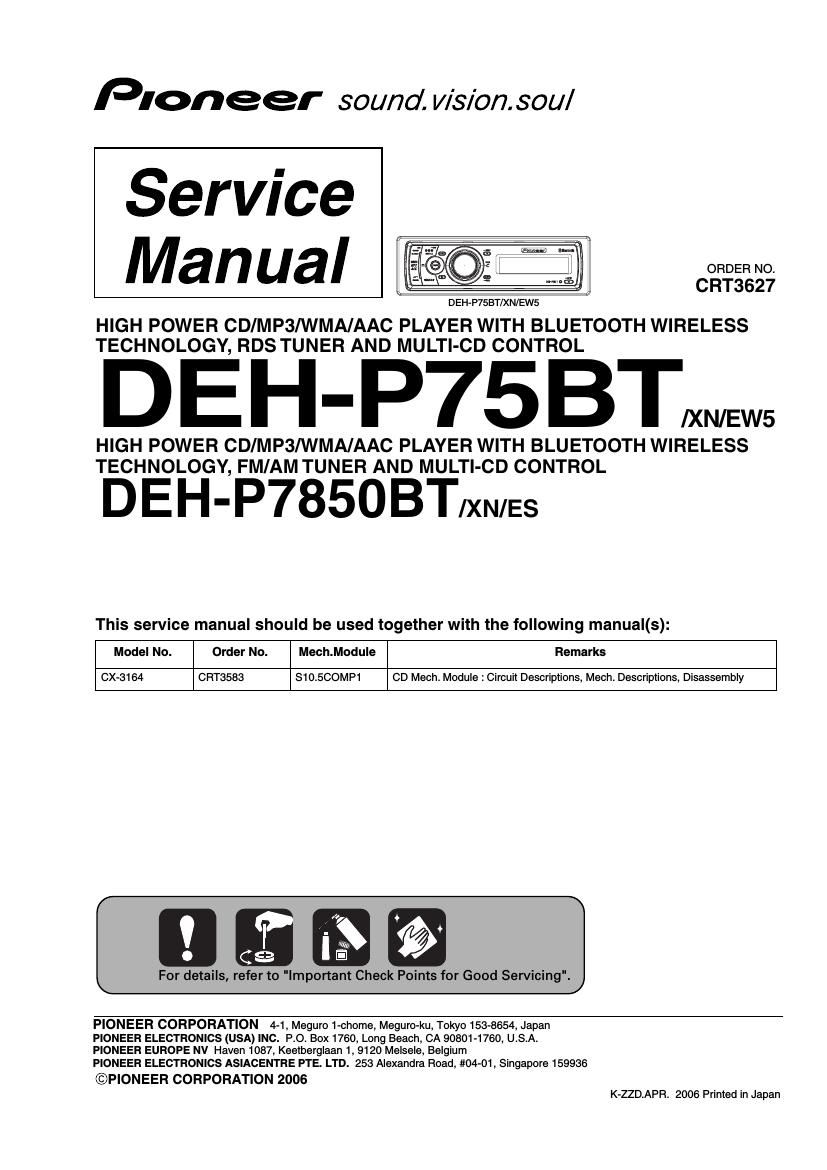

Page 1
Pioneer sound. vision. soul
$Mw
Manual
ORDER NO.
CRT3627
DE H-P75BT/XN/EW5
HIGH POWER CD/MP3/WMA/AAC PLAYER WITH BLUETOOTH WIRELESS
TECHNOLOGY, RDS TUNER AND MULTI-CD CONTROL
DEH-P75 BTWS
HIGH POWER CD/MP3/WMA/AAC PLAYER WITH BLUETOOTH WIRELESS
TECHNOLOGY, FM/AM TUNER AND MULTI-CD CONTROL
DEH'P78503T/XN/ES
This service manual should be used together with the following manual(s):
Model No.
Order No.
Mech.Module
Remarks
CX-3164
C RT3583
S10.SCOMP1
CD Mech. Module :Circuil Descriptions, Mech. Descriptions, Disassembly
09
For details, refer to "Important Check Points for Good Servicing".
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. FD. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087,Keetberg|aan1,9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road,#O4-01, Singapore 159936
©PIONEER CORPORATION 2006
K-ZZDAPR. 2006 Printed in Japan
