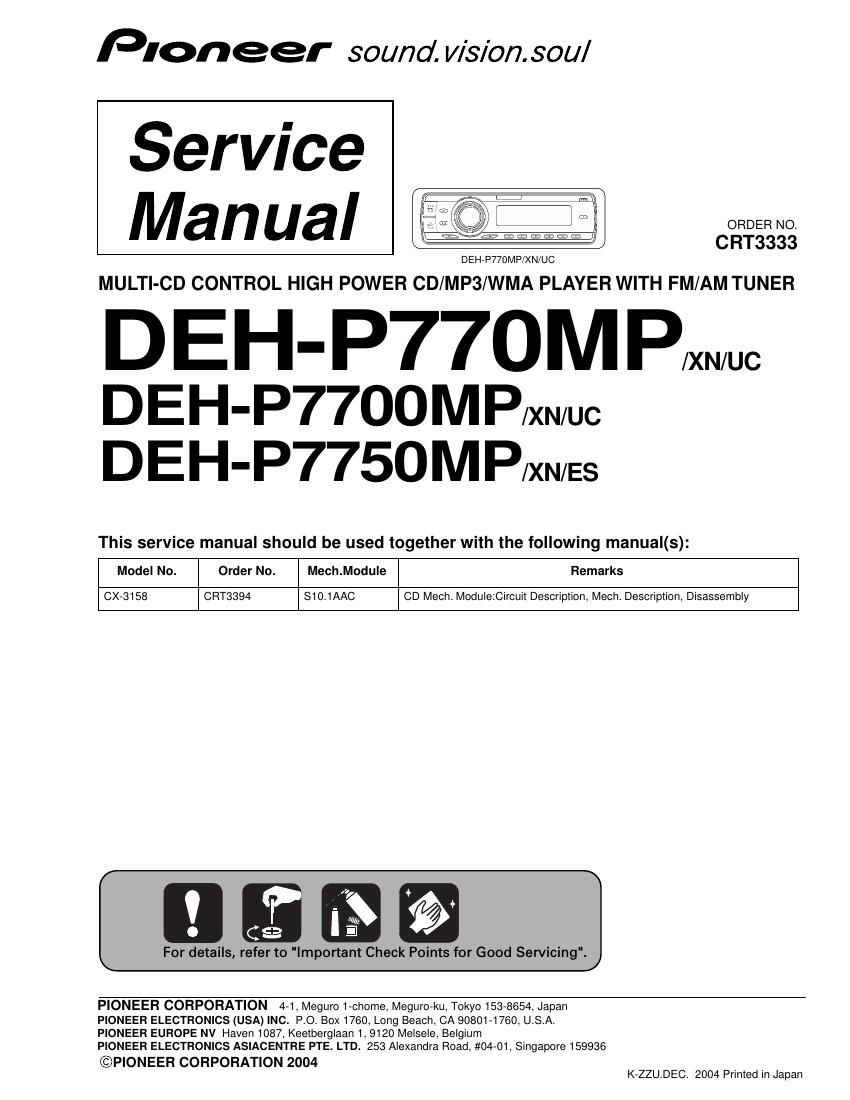

Extracted text from pioneer dehp 7700 mp service manual (Ocr-read)

Page 1

Pioneer sound. vision. sou/

Service
Manual

ORDER NO.

CRT3333

DEHrP770MP/XN/UC

MULTI-CD CONTROL HIGH POWER CD/MP3/WMA PLAYER WITH FM/AM TUNER

DEH-P77OMPW

DEH-P77OOMP/XN/uc
DEH'P7750MP/XN/ES

This service manual should be used together with the following manual(s):

Model No. Order No. Mech.Module Remarks

CX-3158 CRT3394 S10.1AAC CD Mech. Module:Circuit Description, Mech. Description, Disassembly

n H

For details, refer to "Important Check Points for Good Servicing".

PIONEER CORPORATION 4-1, Meguro l-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keelberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
