Pioneer dehp 770 mp service manual

This is the 19 pages manual for pioneer dehp 770 mp service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 19

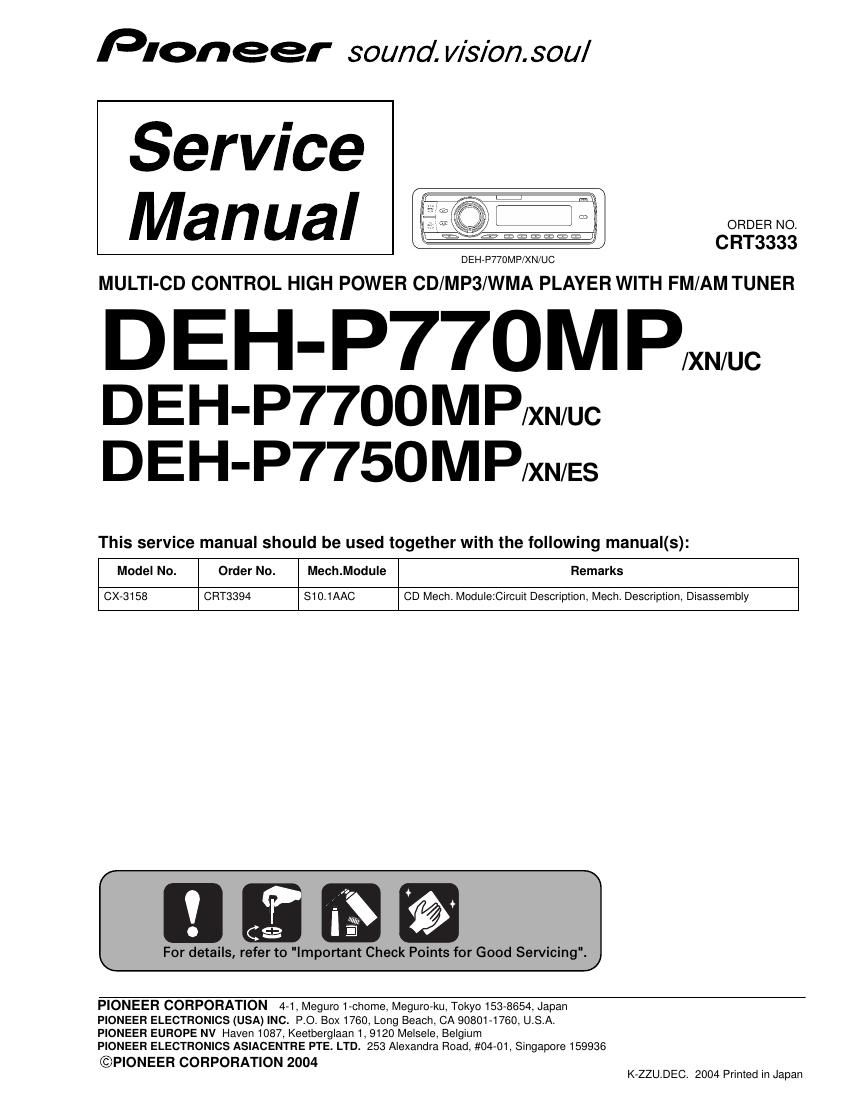

Extracted text from pioneer dehp 770 mp service manual (Ocr-read)

Page 1

Pioneer sound. vision. sou/

Service
Manual

ORDER NO.

CRT3333

DEHrP770MP/XN/UC

MULTI-CD CONTROL HIGH POWER CD/MP3/WMA PLAYER WITH FM/AM TUNER

DEH-P77OMPW

DEH-P77OOMP/XN/uc
DEH'P7750MP/XN/ES

This service manual should be used together with the following manual(s):

Model No. Order No. Mech.Module Remarks

CX-3158 CRT3394 S10.1AAC CD Mech. Module:Circuit Description, Mech. Description, Disassembly

n H

For details, refer to "Important Check Points for Good Servicing".

PIONEER CORPORATION 4-1, Meguro l-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keelberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
