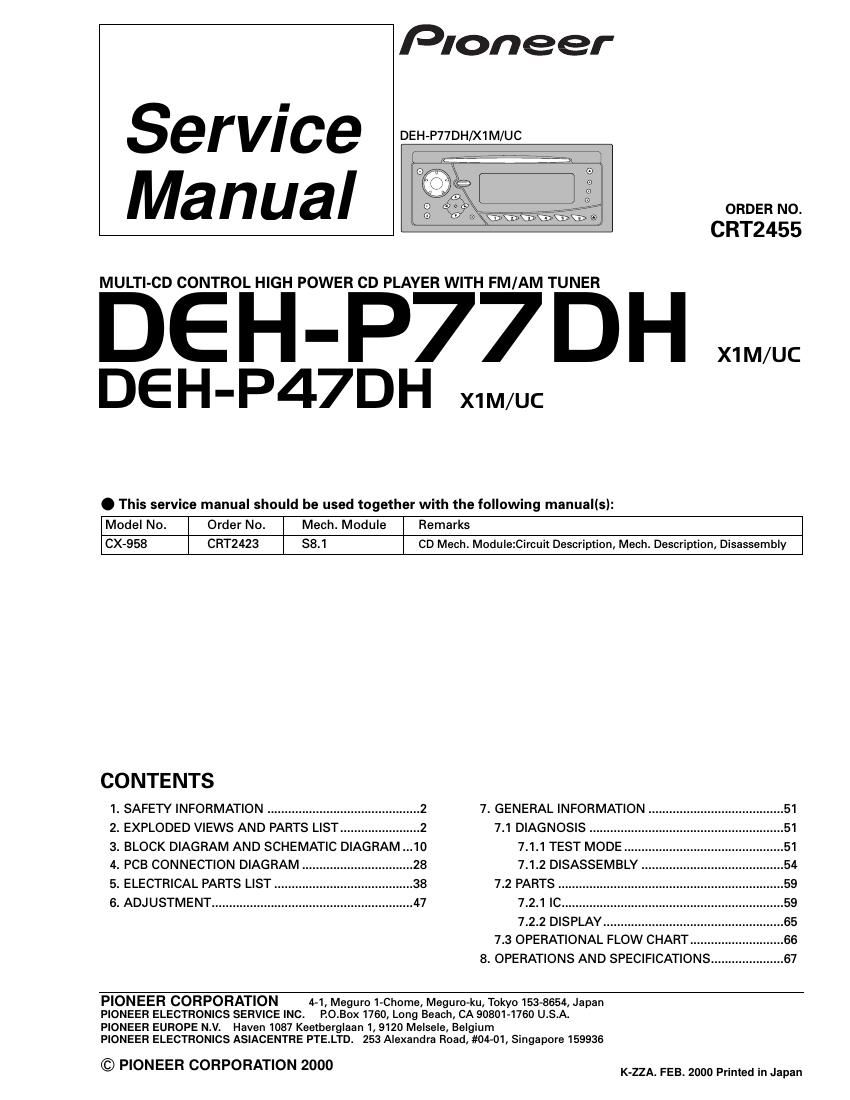

Pioneer dehp 77 dh service manual
This is the 75 pages manual for pioneer dehp 77 dh service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer dehp 77 dh service manual (Ocr-read)
Page 1
2 DEH-P77DH,P47DH -CD Player Service Precautions 1. For pickup unit(CXX1285) handling, please refer to"Disassembly"(see page 54). During replacement, handling precautions shall be taken to prevent an electrostatic discharge(protection by a short pin).2. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a con- nector is plugged or unplugged. 3. Please checking the grating after changing the ser- vice pickup unit(see page 49). 1. SAFETY INFORMATION CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. W ARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 8 3 9 7 9 2 5 6 1 11 4
Page 2
* 1-1 Card ARY1048 1-2 Owners Manual See Contrast table(2) 1-3 Installation Manual See Contrast table(2) * 1-4 Label CRW1343 2 Cord Assy CDE6216 3 Accessory Assy CEA2006 4 Polyethylene Bag CEG1116 * 5 Polyethylene Bag CEG1272 6 Battery See Contrast table(2) 7 Carton See Contrast table(2) 8 Contain Box See Contrast table(2) 9 Protector CHP2255 10 ----- 11 Remote Control Unit See Contrast table(2) 12 Screw BSZ30P050FMC13 Nut CBN1012 * 14 Polyethylene Bag CEG1203 15 Spacer CLA2598 16 Bracket CNC6767 17 Bracket CNC5506 18 Bracket CNC5507 19 Bracket CNC5686 20 Bracket CNC5687 21 Bolt Unit CXA7960 22 Bolt Unit CXA7961 DEH-P7 7 DH,P47DH Mark No. Description Part No. Mark No. Description Part No. (1) PACKING SECTION PARTS LIST NOTE: -Parts marked by * are generally unavailable because they are not in our Master Spare Parts List. -Screws adjacent to Ñmark on the product are used for disassembly. 3 19 322 21 14 20 16 18 17 15 13 12
