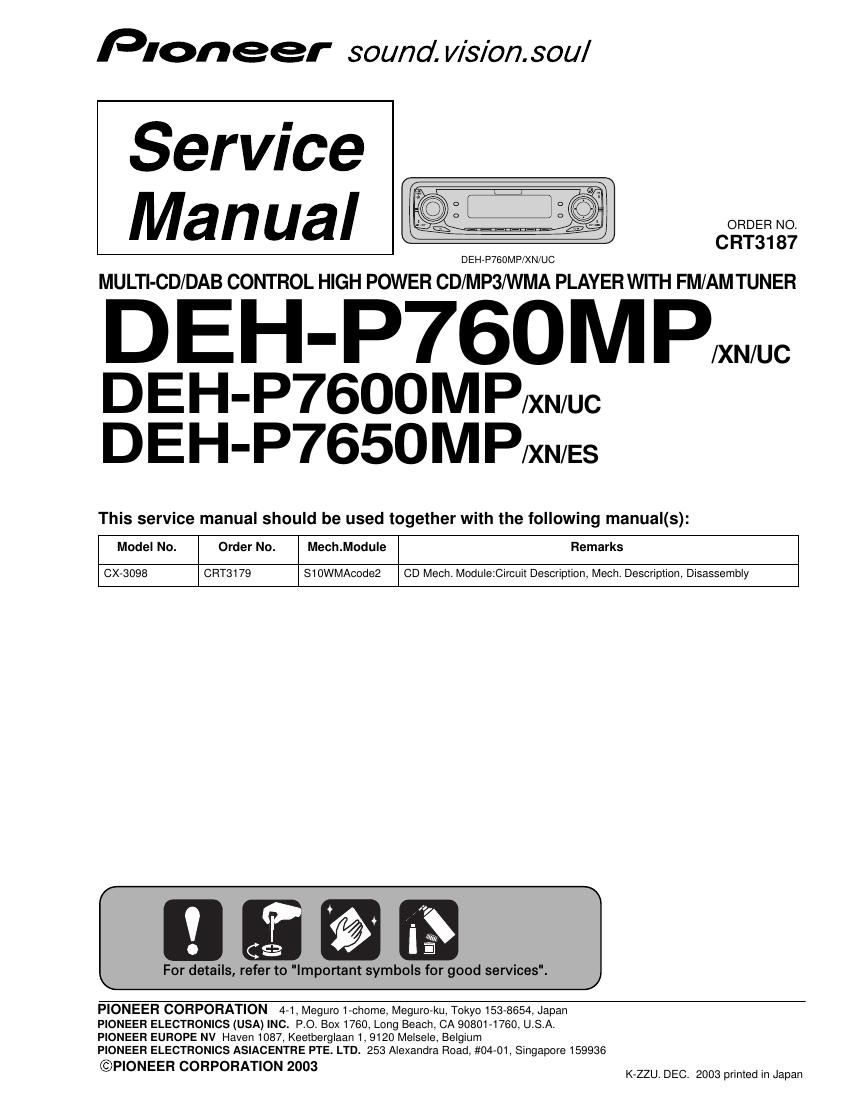

Page 1

Pioneer sound. vision. sou/

Service
Manual

ORDER NO.

CRT3187

DEH7P760MP/XN/UC

MULTI-CD/DAB CONTROL HIGH POWER CD/MP3NVMA PLAYER WITH FM/AM TUNER

DEH-P760MPW

DEH-P7600MP/XN/uc
DEH'P765OMP/XN/ES

This service manual should be used together with the following manual(s):

Model No.

Order No.

Mech.Module

Remarks

CX-3098

CRT3179

S10WMAcode2

CD Mech. Module:Circuit Description, Mech. Description, Disassembly

For details, refer to "Important symbols for good services".

PIONEER CORPORATION 4-1, Meguro l-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

©P|ONEER CORPORATION 2003

K-ZZU. DEC. 2003 printed in Japan

Page 2

1 - 2 - 3 - 4

SAFETY INFORMATION

CAUTION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely
repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the
warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk
trying to do so and refer the repair to a qualified service technician.

WARNING

This product contains lead in solder and certain electrical parts contain chemicals which are known to the
state of California to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65

. CD Player Service Precautions n
I. Before disassembling the unit, be sure to turn off the 3- After replacing the PiCkUP unit, be sure to check
power. Unplugging and plugging the connectors dur- the grating.(See p.56.)
ing power-on mode may damage the ICs inside the
unit.
2. To protect the pickup unit from electrostatic dis-
charge during serviving, take an appropriate treat»
ment(shorting-so|der) by referring to llthe DISAS-
SEMBLYll on page 60.

2 DEH-P760MP/XN/UC
1 l 2 3 I 4
