Pioneer dehp 75 bt service manual
This is the 110 pages manual for pioneer dehp 75 bt service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer dehp 75 bt service manual (Ocr-read)

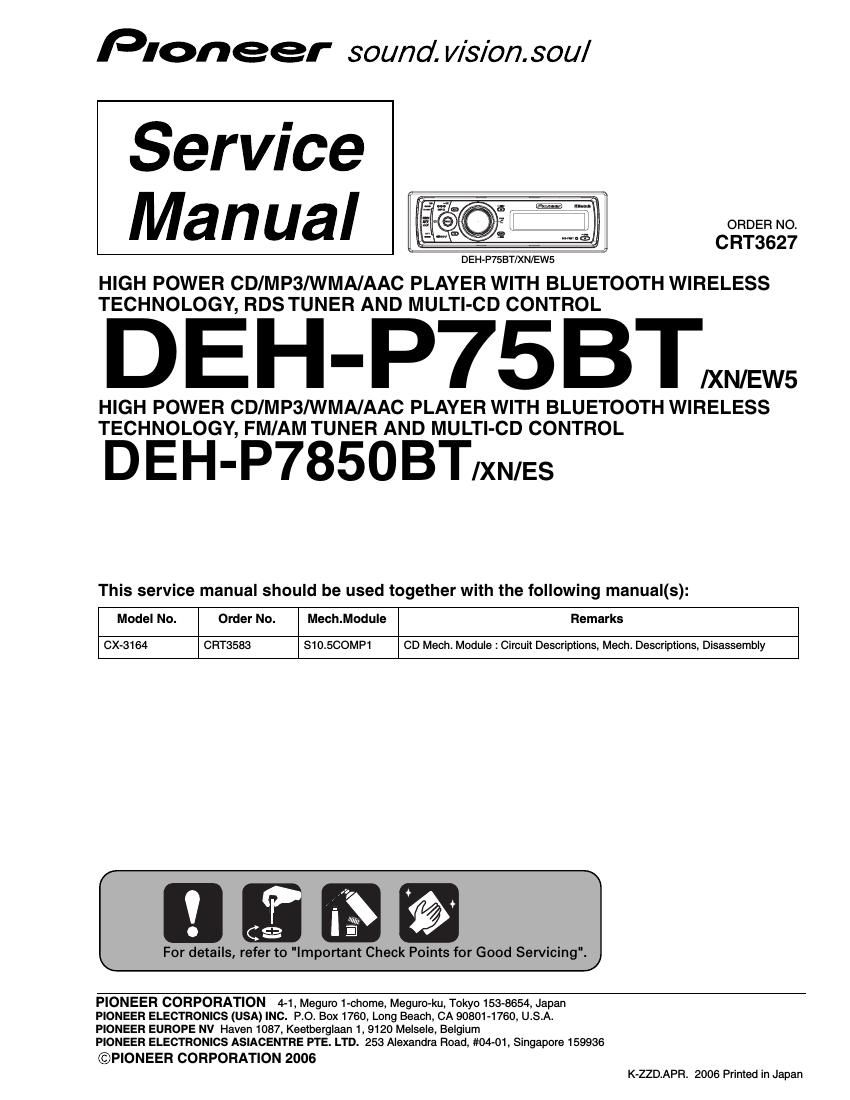

Page 1
Pioneer sound. vision. sou/
$Mw
Manual
ORDER NO.
CRT3627
DEH~P7SBTIXNIEW5
HIGH POWER CD/MP3IWMA/AAC PLAYER WITH BLUETOOTH WIRELESS
TECHNOLOGY, RDS TUNER AND MULTI-CD CONTROL
DEH-P75 BTWEWE,
HIGH POWER CD/MP3IWMA/AAC PLAYER WITH BLUETOOTH WIRELESS
TECHNOLOGY, FM/AM TUNER AND MULTI-CD CONTROL
DEH'P78503T/XN/ES
This service manual should be used together with the following manual(s):
Model No.
Order No.
Mech.Module
Remarks
CX-3164
CRT3583
S10.SCOMP1
CD Mech. Module :Circuit Descriptions, Mech. Descriptions, Disassembly
89"
For details, refer to "Important Check Points for Good Servicing".
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©PIONEER CORPORATION 2006
K-ZZD.APR. 2006 Printed in Japan
Page 2
SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely
repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.
. Safety Precautions for those who Service this Unit.
- When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable
results.
Caution:
1. During repair or tests, minimum distance of 13 cm from the focus lens must be kept.
2. During repair or tests, do not view laser beam for 10 seconds or longer.
CAUTION:
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
CAUTION
This product contains a laser diode of higher class
than l.To ensure continued safety, do not
remove any covers or attempt to gain access to
the lnsrde of the product.
Refer all servicing to qualified personnel.
The followmg caution label appears on your unit.
Location: on the bottom of the unit
CLASS 1
LASER PRODUCT
En
WARNING!
The AEL (accessible emission level )of the laser power output is less than CLASS 1
but the laser component is capable of emitting radiation exceeding the limit for
CLASS 1.
A specially instructed person should do servicing operation of the apparatus.
Laser diode characteristics
Wave length : 785 to 814 nm
Maximum output: 1 190 uW(Emitting period : unlimited
Additional Laser Caution
Transistors 0101 in PCB drive the laser diodes.
When 0101 is shorted between their terminals, the laser diodes will radiate beam.
If the top cover is removed with no disc loaded while such short-circuit is continued,
the naked eyes may be exposed to the laser beam.
DEH-P7SBT/XN/EW5
