Pioneer dehp 75 bt schematic
This is the 38 pages manual for pioneer dehp 75 bt schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

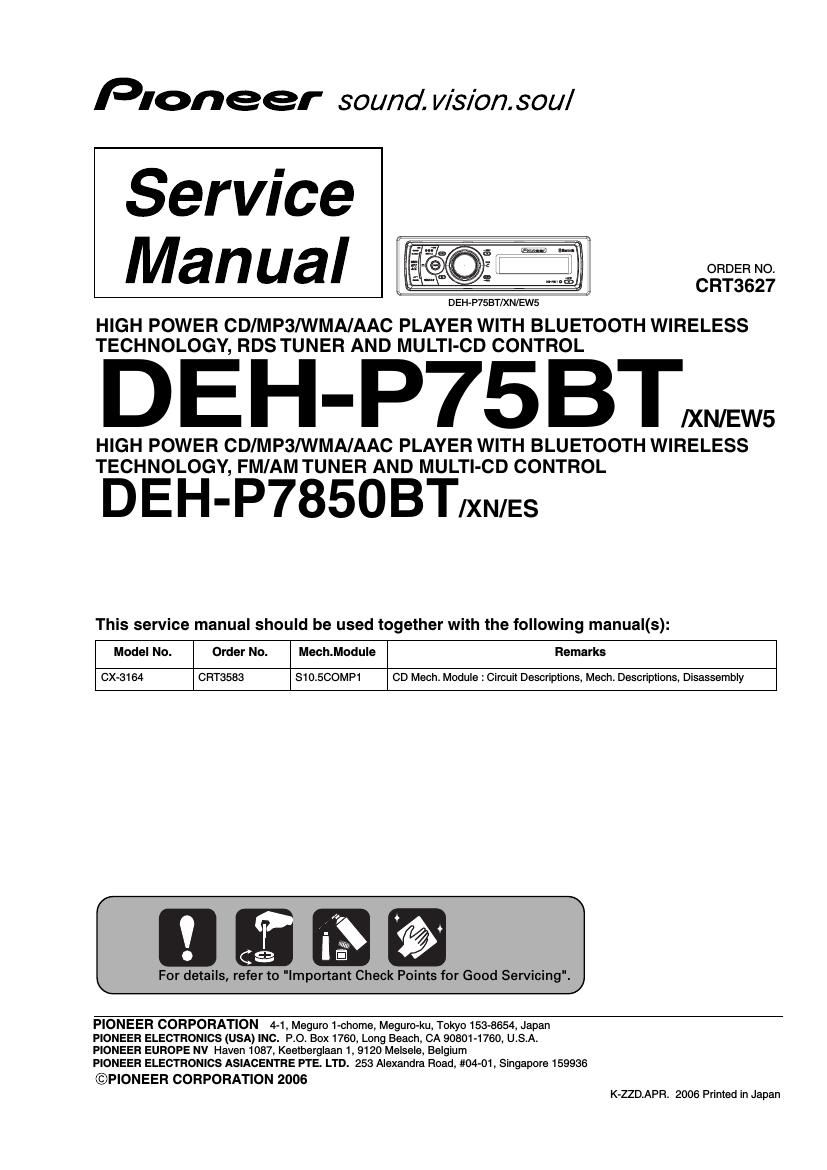

Extracted text from pioneer dehp 75 bt schematic (Ocr-read)
Page 1
Pioneer sound. vision. soul
$Mw
Manual
ORDER NO.
CRT3627
DE H-P75BT/XN/EW5
HIGH POWER CD/MP3/WMA/AAC PLAYER WITH BLUETOOTH WIRELESS
TECHNOLOGY, RDS TUNER AND MULTI-CD CONTROL
DEH-P75 BTWS
HIGH POWER CD/MP3/WMA/AAC PLAYER WITH BLUETOOTH WIRELESS
TECHNOLOGY, FM/AM TUNER AND MULTI-CD CONTROL
DEH'P78503T/XN/ES
This service manual should be used together with the following manual(s):
Model No.
Order No.
Mech.Module
Remarks
CX-3164
C RT3583
S10.SCOMP1
CD Mech. Module :Circuil Descriptions, Mech. Descriptions, Disassembly
09
For details, refer to "Important Check Points for Good Servicing".
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. FD. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087,Keetberg|aan1,9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road,#O4-01, Singapore 159936
©PIONEER CORPORATION 2006
K-ZZDAPR. 2006 Printed in Japan
