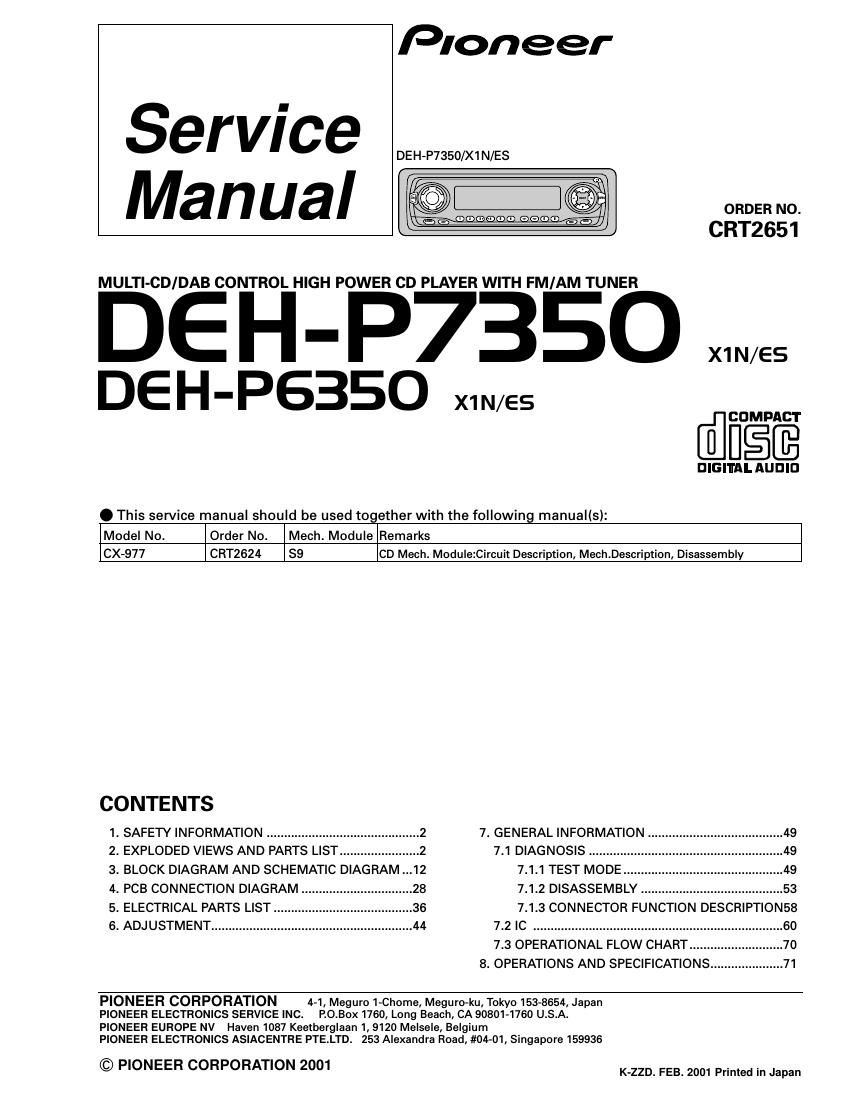

Pioneer dehp 7350 service manual
This is the 77 pages manual for pioneer dehp 7350 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer dehp 7350 service manual (Ocr-read)
Page 1
2 DEH-P7350,P6350 -CD Player Service Precautions 1. For pickup unit(CXX1480) handling, please refer to"Disassembly"(see page 53). During replacement, handling precautions shall be taken to prevent an electrostatic discharge(protection by a jumper-solder).2. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a con- nector is plugged or unplugged. 3. Please checking the grating after changing the ser- vice pickup unit(see page 47). 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING(DEH-P7350/X1N/ES) This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. 1. SAFETY INFORMATION 20 22 2524 23 14 5 8 12411 109 7 6 17 2 18 1316 15 1 19 3 21
Page 2
DEH-P7350,P6350 3 1 Carton CHG4325 2 Cord Assy CDE6438 3 Accessory Assy CEA2395 4 Spring CBH1650 5 Screw Assy CEA2396 6 Screw CBA1002 * 7 Polyethylene Bag CEG-127 8 Screw CRZ50P090FMC 9 Screw TRZ50P080FMC * 10 Polyethylene Bag CEG-158 11 Handle CNC5395 12 Bush CNV3930 13 Polyethylene Bag CEG1227 * 14 Battery CEX1006 15 Contain Box CHL432516 Protector CHP2252 17 Protector CHP2251 18 Case Assy CXB3520 19-1 Polyethylene Bag CEG1116 19-2 Owners Manual CRD3386 19-3 Owners Manual CRD3387 19-4 Installation Manual CRD3388 * 19-5 Caution Card CRP1207 * 19-6 Caution Card CRP1220 20 Remote Control Assy CXB3875 21 Inner Box CHW1759 22 Base Assy CEA2426 * 23 Base CNS5031 * 24 Sheet CZA3371 * 25 Polyethylene Bag CZE3188 Mark No. Description Part No. Mark No. Description Part No. -PACKING SECTION PARTS LIST NOTE: -Parts marked by * are generally unavailable because they are not in our Master Spare Parts List. -Screws adjacent to ∇mark on the product are used for disassembly. -Owner's Manual, Installation Manual Model Part No. Language DEH-P7350/X1N/ES CRD3386 English, Spanish, Portuguese(B) CRD3387 Arabic, Chinese CRD3388 English, Spanish, Portuguese(B), Arabic, Chinese
