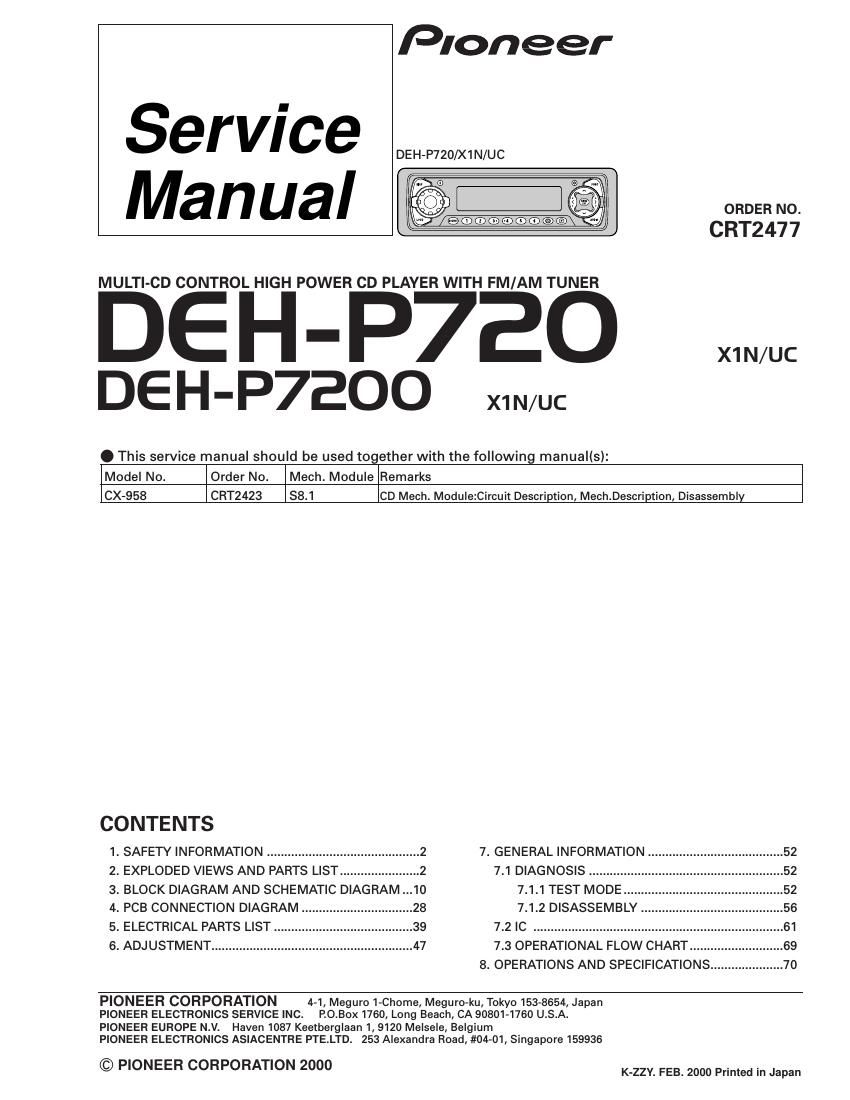

Pioneer dehp 720 service manual

This is the 76 pages manual for pioneer dehp 720 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 76
pioneer dehp 720 service manual

Extracted text from pioneer dehp 720 service manual (Ocr-read)


Page 1

2 DEH-P720,P7200 -CD Player Service Precautions 1. For pickup unit(CXX1285) handling, please refer to"Disassembly"(see page 56). During replacement, handling precautions shall be taken to prevent an electrostatic discharge(protection by a short pin).2. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a con- nector is plugged or unplugged. 3. Please checking the grating after changing the ser- vice pickup unit(see page 49). 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. W ARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 1. SAFETY INFORMATION 19 18 15 13 17 16 5 8 12411 109 7 6 3 1 2 14 20

Page 2

3 DEH-P720,P7200 1 Carton(P720) CHG4009 Carton(P7200) CHG4008 2 Cord Assy(P720) CDE6241 Cord Assy(P7200) CDE6291 * 3 Accessory Assy CEA2395 4 Spring CBH1650 * 5 Screw Assy CEA2396 6 Screw CBA1002 * 7 Polyethylene Bag CEG-127 8 Screw CRZ50P090FMC 9 Screw TRZ50P080FMC * 10 Polyethylene Bag CEG-158 11 Handle CNC5395 12 Bush CNV3930 13 Polyethylene Bag CEG117314 Battery(P720) CEX1006 15 Contain Box(P720) CHL4009 Contain Box(P7200) CHL4008 16 Protector CHP2251 17 Protector CHP2252 18 Case Assy CXB3520 19-1 Polyethylene Bag CEG1116 19-2 Owners Manual(P720) CRD3172 Owners Manual(P7200) CRD3174 19-3 Installation Manual(P720) CRD3173 Installation Manual (P7200) CRD3175 * 19-4 Warranty Card CRY1070 * 19-5 Card(P7200) ARY1048 * 19-6 Warranty Card CRP1207 20 Remote Control Assy(P720) CXB4285 Mark No. Description Part No. Mark No. Description Part No. -PACKING SECTION PARTS LIST NOTE: -Parts marked by * are generally unavailable because they are not in our Master Spare Parts List. -Screws adjacent to Ñmark on the product are used for disassembly. -Owner's Manual, Installation Manual Model Part No. Language DEH-P720/X1N/UC CRD3172 English, French CRD3173 English, French DEH-P7200/X1N/UC CRD3174 English, French CRD3175 English, French
