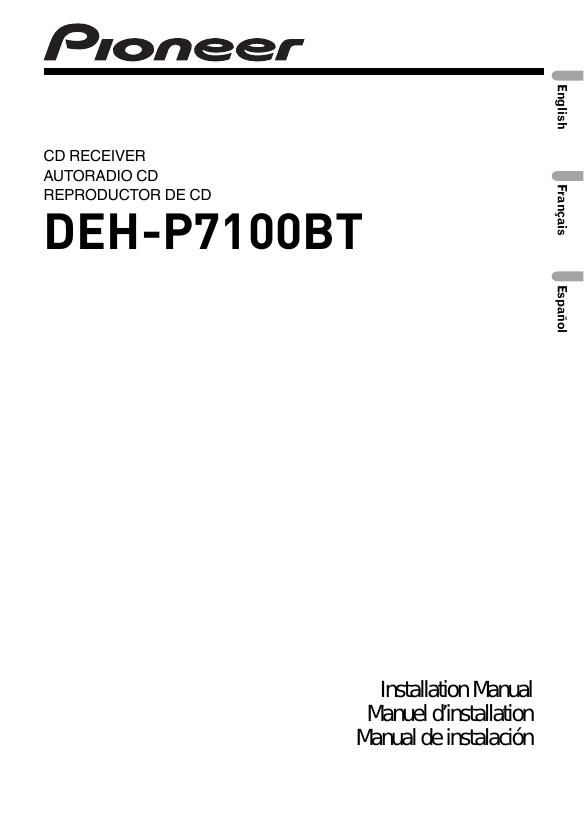

Pioneer DEH P7100BT Owners Manual
This is the 43 pages manual for Pioneer DEH P7100BT Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Pioneer DEH P7100BT Owners Manual (Ocr-read)
Page 1
2 ContentsConnecting the units Connecting the units ............................. 2 Connecting the power cord ............................ 4 When using a subwoofer without using the optional amplifier ....... 6 When connecting to separately sold power amp ........................ 8 Installation ............................................ 10 DIN Front/Rear-mount ................................... 10 Removing or attaching the trim ring .................... 10 DIN Front-mount .................................................... 11 DIN Rear mount ..................................................... 11 Fastening the front panel .............................. 12 Installing the microphone ............................. 12 When installing the microphone on the sun visor ................................................. 12 When installing the microphone on the steering column ..................................... 13 Adjusting the microphone angle .......................... 13 Installing the steering remote control ......... 13 Installing the unit on a left-hand drive car ........... 14 Note - When this unit is installed in a vehicle without ACC (accessory) position on the ignition switch, red cable must be wired to the terminal that can detect the operation of the ignition key. Otherwise, battery drain may result. ACC ONSTART OFF ONSTART OFF ACC position No ACC position - Use this unit in other than the following conditions could result in fire or malfunction.- Vehicles with a 12-volt battery and negative grounding. - Speakers with 50 W (output value) and 4 ohm to 8 ohm (impedance value). - To prevent short-circuit, overheating or malfunction, be sure to follow the directions below.- Disconnect the negative terminal of the battery before installation. - Secure the wiring with cable clamps or adhesive tape. To protect the wiring, wrap adhesive tape around them where they lie against metal parts. - Place all cables away from moving parts, such as gear shift and seat rails. - Place all cables away from hot places, such as near the heater outlet. - Do not pass the yellow cable through a hole into the engine compartment to connect to a battery. - Cover any disconnected cable connectors with insulating tape. - Do not shorten any cables. - Never cut the insulation of the power cable of this unit in order to share the power to other equipment. Current capacity of the cable is limited. - Use a fuse of the rating prescribed. - Never wire the speaker negative cable directly to ground. - Never band together multiple speaker s negative cables.
Page 2
3 English Connecting the units - Control signal is output through blue/white cable when this unit is powered on. Connect it to an external power amps system remote control or the vehicles auto-antenna relay control terminal (max. 300 mA, 12 V DC). If the vehicle is equipped with a glass antenna, connect it to the antenna booster power supply terminal. - Never connect blue/white cable to external power amps power terminal. Also, never connect it to the power terminal of the auto antenna. Otherwise, battery drain or malfunction may result. - IP-BUS connectors are color-coded. Be sure to connect connectors of the same color. - Black cable is ground. This cable and other products ground cable (especially, high-current products such as power amp) must be wired separately. Otherwise, fire or malfunction may result if they are accidentally detached.
