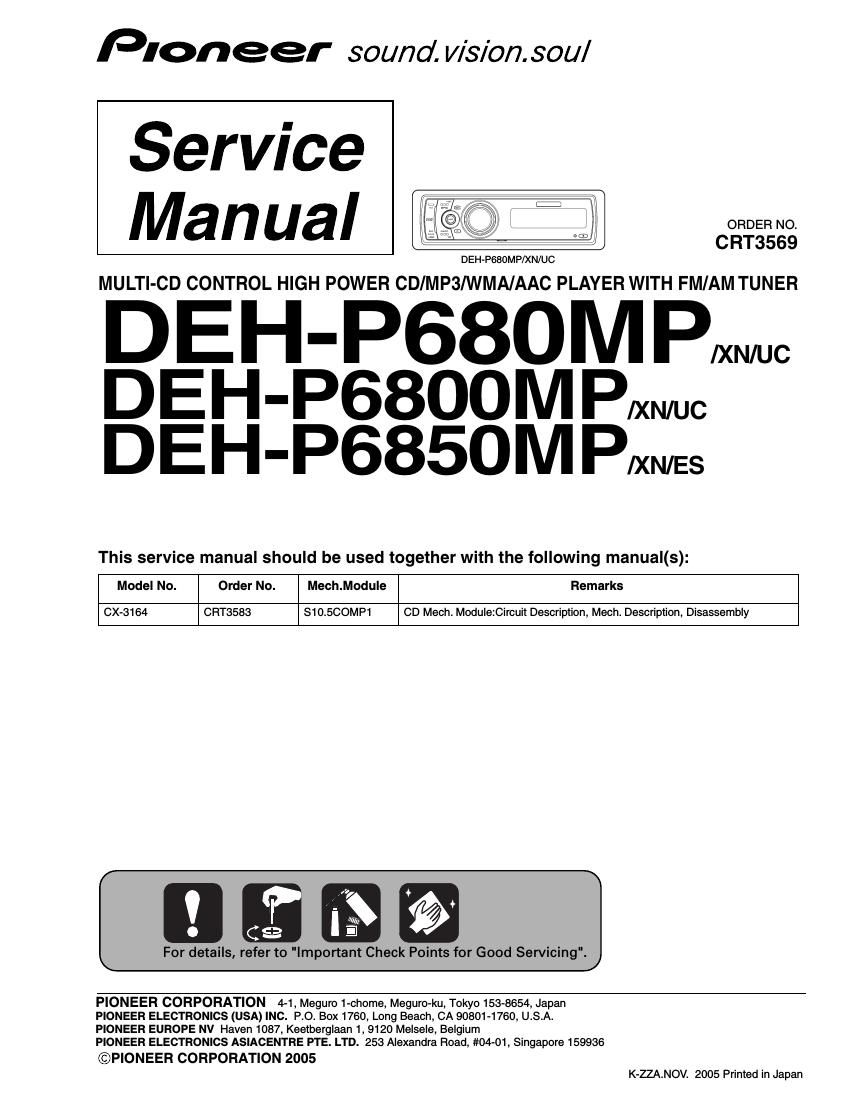

Pioneer sound. vision. sou/

Service
Manual

ORDER NO.

' a ' I CRT3569
DEH~P680MP/XN/UC

MULTI-CD CONTROL HIGH POWER CD/MP3/WMA/AAC PLAYER WITH FM/AM TUNER

D E H- P680 M P/XN/UC
DEH'P6800M P/XN/UC
DEH'P6850M P/XN/ES

This service manual should be used together with the following manual(s):

Model No.

CX-3164

Order No.

CRT3583

Mech.Module

S10.SCOMP1

Remarks

CD Mech. Module:Circuit Description, Mech. Description, Disassembly

For details, refer to "Important Check Points for Good Servicing".

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS (USA) INC. PO. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

OPIONEER CORPORATION 2005

K-ZZA.NOV. 2005 Printed in Japan

Page 2

ITI

SAFETY INFORMATION

CAUTION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely
repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the
warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk
trying to do so and refer the repair to a qualified service technician.

WARNING

This product contains lead in solder and certain electrical parts contain chemicals which are known to the
state of California to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65

. Service Precaution

1. You should conform to the regulations governing
the product (safety, radio and noise, and other
regulations), and should keep the safety during
servicing by following the safety instructions
described in this manual.

2. Before disassembling the unit, be sure to turn off
the power. Unplugging and plugging the connectors
during power-on mode may damage the ICs inside
the unit.

3. To protect the pickup unit from electrostatic discharge
during servicing, take an appropriate treatment
(shorting-solder) by referring to llthe DISASSEMBLY"

4. After replacing the pickup unit, be sure to check the
grating.

@figffi @05@

DIGITAL AUDIO TEXT

DEH-P680MP/XN/UC
1 I 2 3 I 4
