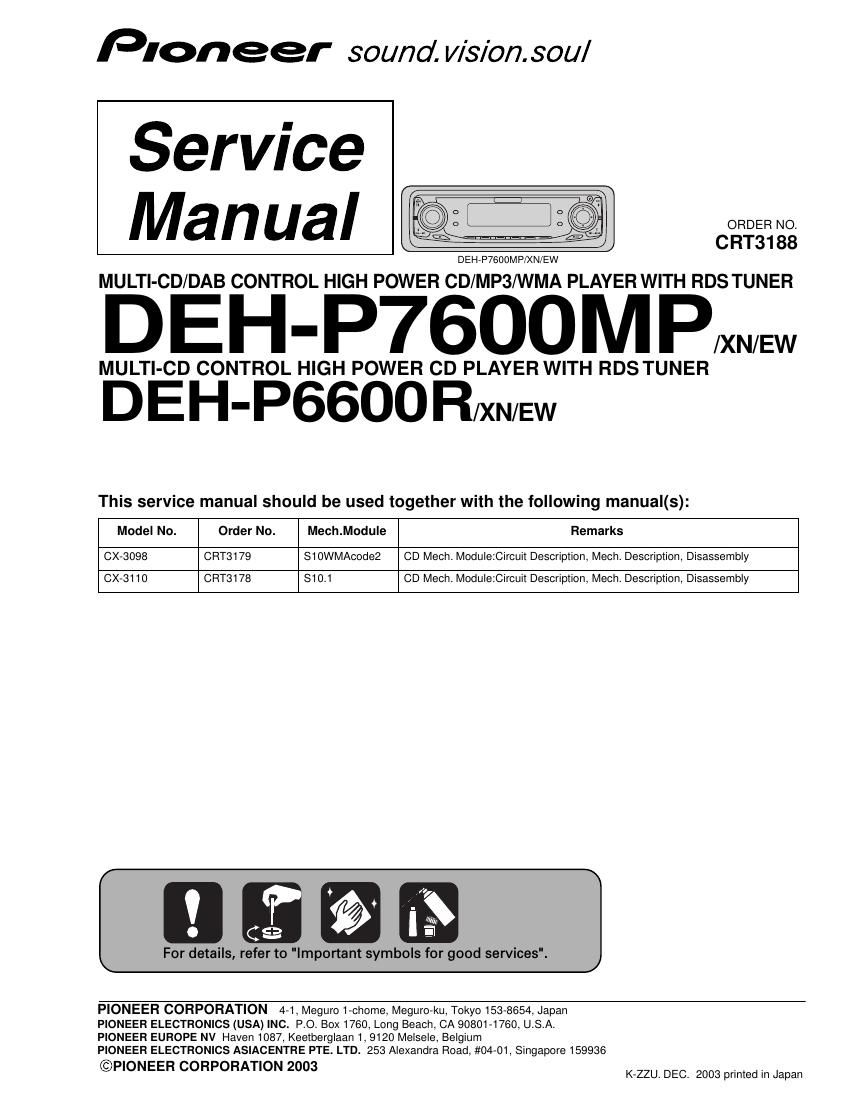

Page 1

Pioneer sound. vision. sou/

Service
Manual

ORDER NO.

CRT3188

DEHrF7600MP/XN/EW

MULTI-CD/DAB CONTROL HIGH POWER CD/MP3NVMA PLAYER WITH RDS TUNER

D E H ' P7600 M P/XN/EW

MULTI-CD CONTROL HIGH POWER CD PLAYER WITH RDS TUNER

DEH-P6600 R/XN/Ew

This service manual should be used together with the following manual(s):

Model No. Order No. Mech.Module Remarks
CX-3098 CRT3179 S10WMAcode2 CD Mech. Module:Circuit Description, Mech. Description, Disassembly
CX-3110 CRT3178 510.1 CD Mech. Module:Circuit Description, Mech. Description, Disassembly

ago.

For details, refer to "Important symbols for good services".

PIONEER CORPORATION 4-1, Meguro l-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. FLO. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

©P|ONEER CORPORATION 2003

K-ZZU. DEC. 2003 printed in Japan

Page 2

1 - 2 - 3

SAFETY INFORMATION

. CD Section Precaution n

I. Before disassembling the unit, be sure to turn off
the power. Unplugging and plugging the connectors
during power-on mode may damage the le inside
the unit.

2. To protect the pickup unit from electrostatic discharge
during servicing, take an appropriate treatment
lshorting»solder) by referring to "the DISASSEMBLY"
on page 77.

3. After replacing the pickup unit, be sure to check the
grating. (See p.72.)

DEH-P7600MP/XN/EW
1 I 2 3
