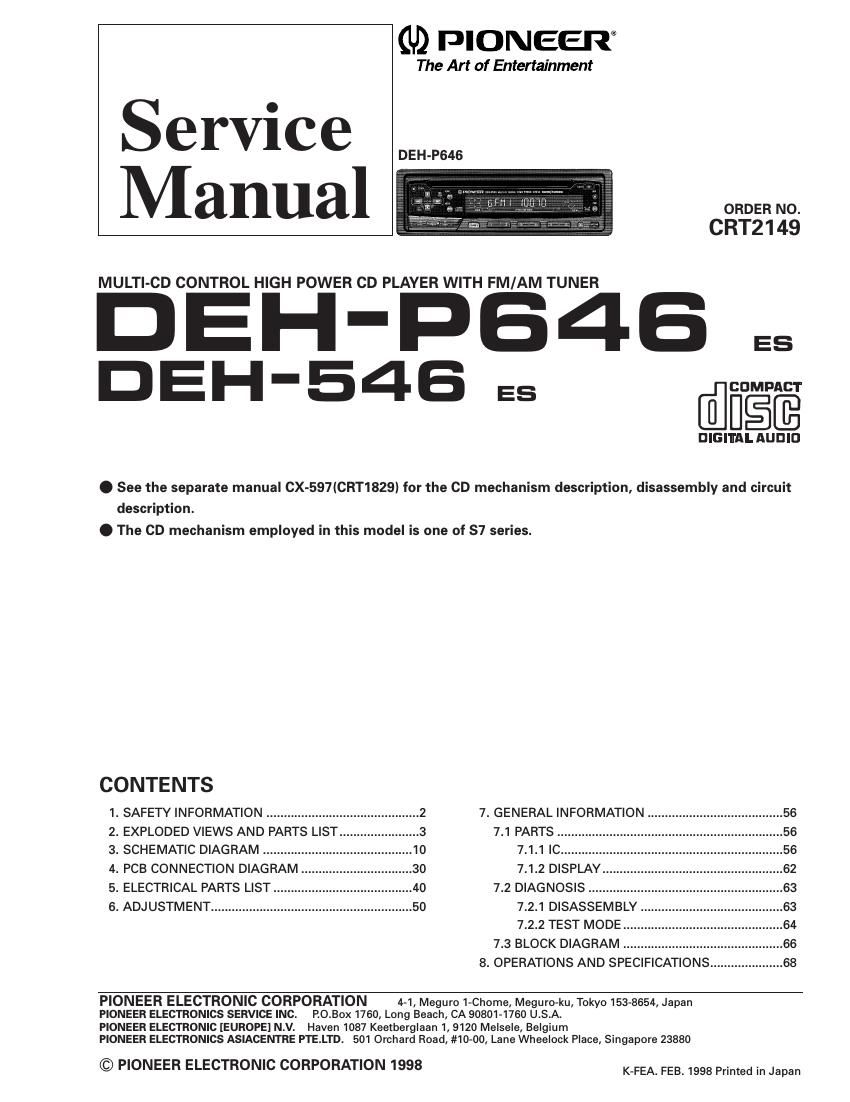

Pioneer dehp 646 service manual
This is the 77 pages manual for pioneer dehp 646 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer dehp 646 service manual (Ocr-read)
Page 1
2 DEH-P646,546 -CD Player Service Precautions 1. For pickup unit(CXX1230) handling, please refer to"Disassembly"(CX-597 Service Manual CRT1829). During replacement, handling precautions shall be taken to prevent an electrostatic discharge(protection by a short pin).2. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a con- nector is plugged or unplugged. 3. Please checking the grating after changing the ser- vice pickup unit(see page 54). This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. 1. SAFETY INFORMATION
Page 2
3 DEH-P646,546 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING Fig. 1 -PACKING SECTION PARTS LIST Mark No. Description Part No.Mark No. Description Part No. NOTE: -Parts marked by "*"are generally unavailable because they are not in our Master Spare Parts List. -Screws adjacent to Ñmark on the product are used for disassembly. 1 Cord Assy(DEH-P646/ES) CDE5483 Cord Assy(DEH-546/ES) CDE5484 2 Accessory Assy CEA2002 3 Polyethylene Bag CEG-162 4 Battery CEX1030 5 Carton(DEH-P646/ES) CHG3437 Carton(DEH-546/ES) CHG3446 6 Contain Box (DEH-P646/ES) CHL3437 Contain Box(DEH-546/ES) CHL3446 7 Protector CHP17668 Protector CHP1767 9-1 Polyethylene Bag CEG1116 9-2 Owner's Manual(DEH-P646/ES) CRD2561 Owner's Manual(DEH-546/ES) CRD2714 9-3 Owner's Manual(DEH-P646/ES) CRD2562 9-4 Installation Manual (DEH-P646/ES) CRD2563 Installation Manual (DEH-546/ES) CRD2579 9-5 Caution Card CRP1182 10 Case Assy CXB1063 11 Remote Control Unit CXB1225 1 2 3 4 5 6 7 8 9 10 11
