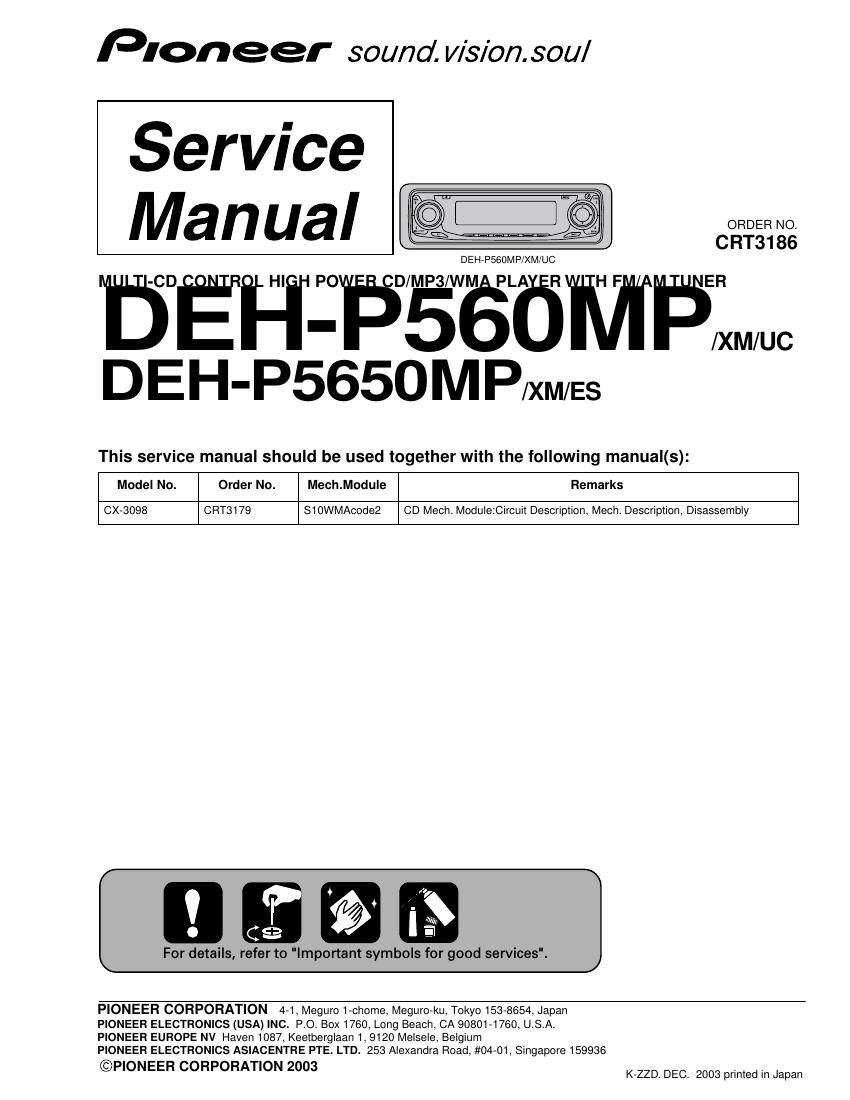

Pioneer dehp 560 mp service manual
This is the 78 pages manual for pioneer dehp 560 mp service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer dehp 560 mp service manual (Ocr-read)
Page 1
DEH-P560MP/XM/UC 2 1234 1234 C D F A B E SAFETY INFORMATION CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the If you are not qualified to perform the repair of this product properly and safely, you should not risk and refer the repair to a qualified service technician. W ARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65repair warranty. trying to do so state -CD Player Service Precautions 1. Before disassembling the unit, be sure to turn off the power. Unplugging and plugging the connectors dur- ing power-on mode may damage the ICs inside the unit. 2. To protect the pickup unit from electrostatic dis- charge during serviving, take an appropriate treat- ment(shorting-solder) by referring to "the DISAS- SEMBLY" on page 56.3. After replacing the pickup unit, be sure to check the grating.(See p.52.)
Page 2
DEH-P560MP/XM/UC 3 5 678 567 8 C D F A B E [ Important symbols for good services ]In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely. When you find the procedures bearing any of the symbols, be sure to fulfill them: 2. Adjustments To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable. In accordance with the procedures or instructions described in this manual, adjustments should be performed. 3. Cleaning For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning, proper cleaning should be performed to restore their performances. 5. Lubricants, glues, and replacement parts Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed ones should be used. 4. Shipping mode and shipping screws To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or the shipping screws should be installed before shipping out in accordance with this manual, if necessary. 1. Product safety You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and should keep the safety during servicing by following the safety instructions described in this manual.
