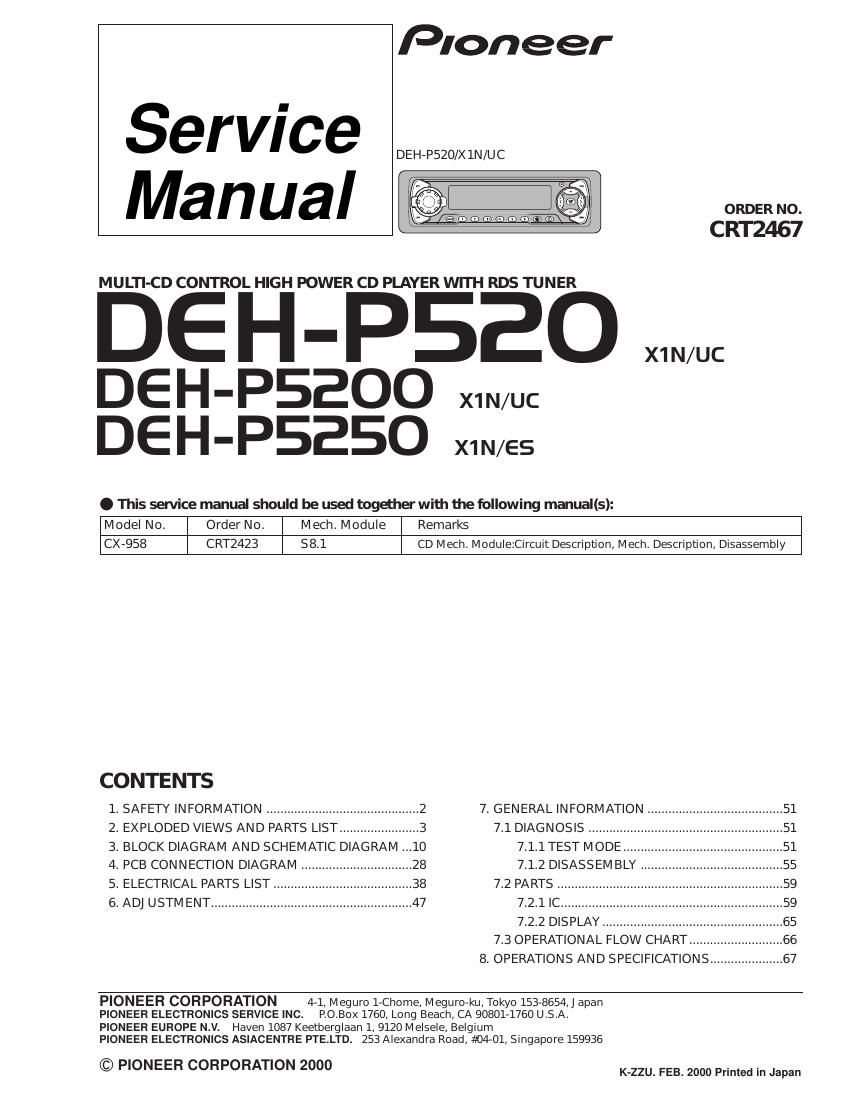

Pioneer dehp 5250 service manual
This is the 73 pages manual for pioneer dehp 5250 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer dehp 5250 service manual (Ocr-read)
Page 1
2 DEH-P520.P5200,P5250 -CD Player Service Precautions 1. For pickup unit(CXX1285) handling, please refer to"Disassembly"(see page 55). During replacement, handling precautions shall be taken to prevent an electrostatic discharge(protection by a short pin).2. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a con- nector is plugged or unplugged. 3. Please checking the grating after changing the ser- vice pickup unit(see page 49). 1. SAFETY INFORMATION CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. W ARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65
Page 2
1 Cord Assy See Contrast table(2) * 2 Accessory Assy CEA2395 3 Spring CBH1650 * 4 Screw Assy CEA2396 5 Screw CBA1002 * 6 Polyethylene Bag CEG-127 7 Screw CRZ50P090FMC 8 Screw TRZ50P080FMC * 9 Polyethylene Bag CEG-158 10 Handle CNC5395 11 Bush CNV3930 12 Polyethylene Bag CEG117313 Case Assy CXB3520 14 Carton See Contrast table(2) 15 Contain Box See Contrast table(2) 16 Protector CHP2251 17 Protector CHP2252 18-1 Polyethylene Bag CEG1116 18-2 Owners Manual See Contrast table(2) 18-3 Owners Manual See Contrast table(2) 18-4 Installation Manual See Contrast table(2) * 18-5 Warranty Card See Contrast table(2) * 18-6 Card See Contrast table(2) 19 Remote Control Unit See Contrast table(2) 20 Battery See Contrast table(2) DEH-P520.P5200,P5250 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 18 13 15 12 16 17 4 7 11310 98 6 5 2 14 1 20 19 Mark No. Description Part No. Mark No. Description Part No. (1) PACKING SECTION PARTS LISTNOTE: -Parts marked by * are generally unavailable because they are not in our Master Spare Parts List. -Screws adjacent to Ñmark on the product are used for disassembly. 3
