Extracted text from pioneer dehp 5100 rb service manual (Ocr-read)

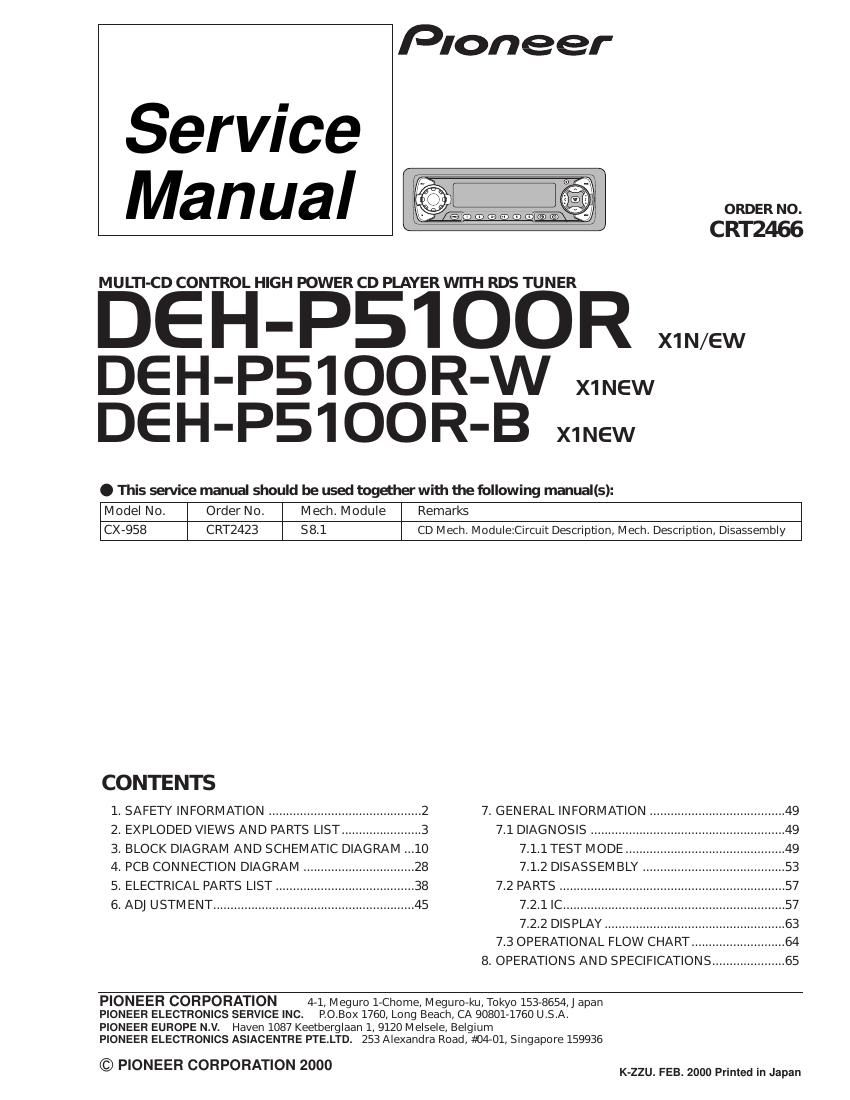

Page 1
2 DEH-P5100R,P5100R-W,P5100R-B -CD Player Service Precautions 1. For pickup unit(CXX1285) handling, please refer to"Disassembly"(see page 53) During replacement, handling precautions shall be taken to prevent an electrostatic discharge(protection by a short pin).2. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a con- nector is plugged or unplugged. 3. Please checking the grating after changing the ser- vice pickup unit(see page 47). 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. 1. Safety Precautions for those who Service this Unit. - When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results. Caution: 1. During repair or tests, minimum distance of 13cm from the focus lens must be kept. 2. During repair or tests, do not view laser beam for 10 seconds or longer. 2. A CLASS 1 LASER PRODUCT label is affixed to the bottom of the player.3. The triangular label is attached to the mechanism unit frame. CLASS 1 LASER PRODUCT 4. Specifications of Laser Diode Specifications of laser radiation fields to which human access is possible during service. Wavelength = 800 nanometers
Page 2
DEH-P5100R,P5100R-W,P5100R-B 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 11 8 9 5 4 6 3 2 7 12 13 10 1 14 1 Cord Assy CDE6240 * 2 Accessory Assy CEA2397 3 Screw CBA1002 4 Handle CNC5395 5 Bush CNV3930 * 6 Polyethylene Bag E36-615 7 Polyethylene Bag CEG-162 8-1 Polyethylene Bag CEG1116 8-2 Owners Manual CRD3146 8-3 Owners Manual CRD31478-4 Owners Manual CRD3148 8-5 Installation Manual CRD3149 * 8-6 Passport CRY1013 * 8-7 Warranty Card CRY1157 9 Case Assy CXB3520 10 Carton See Contrast table(2) 11 Contain Box See Contrast table(2) 12 Protector CHP2251 13 Protector CHP2252 14 Inner Box CHW1754 Mark No. Description Part No. Mark No. Description Part No. (1) PACKING SECTION PARTS LISTNOTE: -Parts marked by * are generally unavailable because they are not in our Master Spare Parts List. -Screws adjacent to Ñmark on the product are used for disassembly. 3
