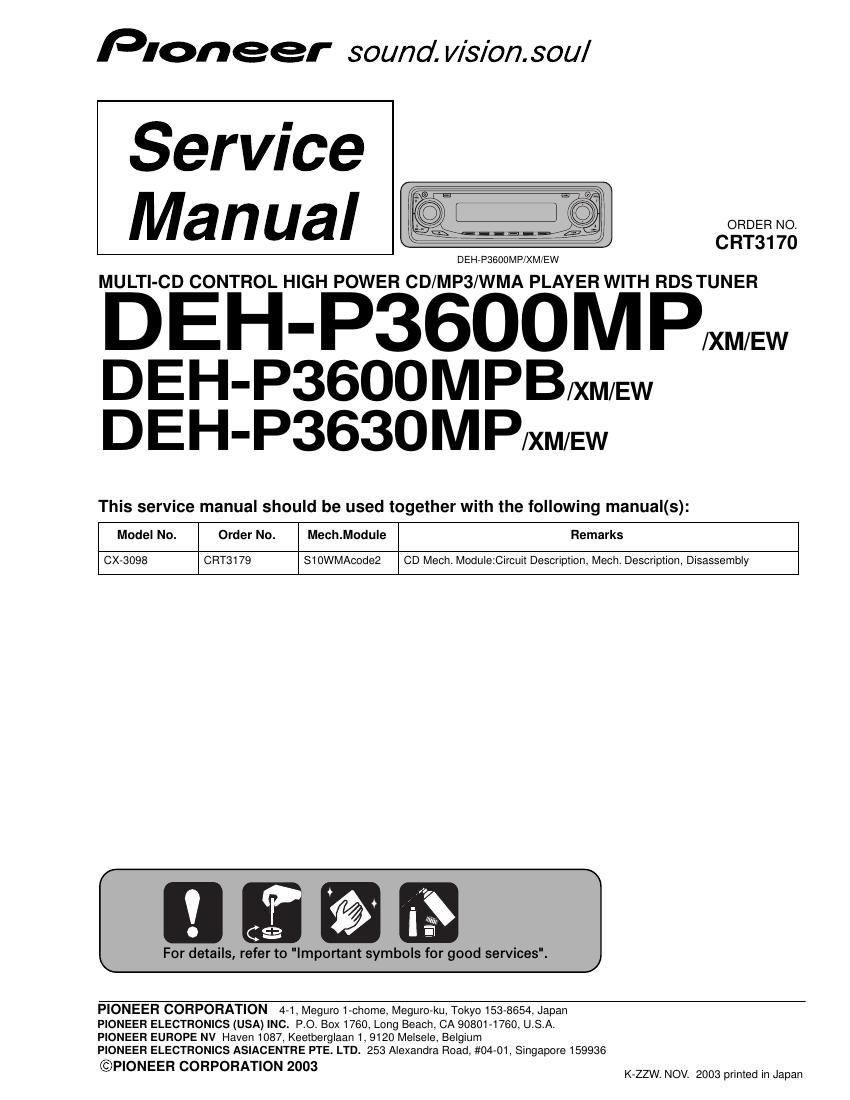

Page 1

Pioneer sound. vision. sou/

Service
Manual

ORDER NO.

CRT317O

DEHrPSGOOMP/XM/EW

MULTI-CD CONTROL HIGH POWER CD/MP3/WMA PLAYER WITH RDS TUNER

D E H ' P3600 M P/XM/EW

DEH-P3600MPB/XM/Ew
DEH-P363OMmeaw

This service manual should be used together with the following manual(s):

Model No.

Order No.

Mech.Module

Remarks

CX-3098

CRT3179

S10WMAcode2

CD Mech. Module:Circuit Description, Mech. Description, Disassembly

For details, refer to "Important symbols for good services".

PIONEER CORPORATION 4-1, Meguro l-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keelberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

©P|ONEER CORPORATION 2003

K-ZZW. NOV. 2003 printed in Japan

Page 2

1 - 2 - 3 - 4

SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely
repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.

1. Safety Precautions for those who Service this Unit.
- When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable
results.

Caution:
1. During repair or tests, minimum distance of 13cm from the focus lens must be kept.
2. During repair or tests, do not view laser beam for 10 seconds or longer.

2. A "CLASS 1 LASER PRODUCT" label is affixed to the 3. The triangular label is attached to the mechanism
bottom of the player. unit frame.

CLASS 1
LASER PRODUCT

4. Specifications of Laser Diode

Specifications of laser radiation fields to which human access is possible during service.
Wavelength = 800 nanometers

. CD Player Service Precautions n

1. Before disassembling the unit, be sure to turn off the 3. After replacing the pickup unit, be sure to check
power. Unplugging and plugging the connectors dur- the grating.l$ee p.51.)
ing power-on mode may damage the le inside the
unit.

2. To protect the pickup unit from electrostatic dis-
charge during serviving, take an appropriate treat-
mentlshorting-solder) by referring to "the DISAS-
SEMBL " on page 54.
