Pioneer dehp 3350 service manual
This is the 67 pages manual for pioneer dehp 3350 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

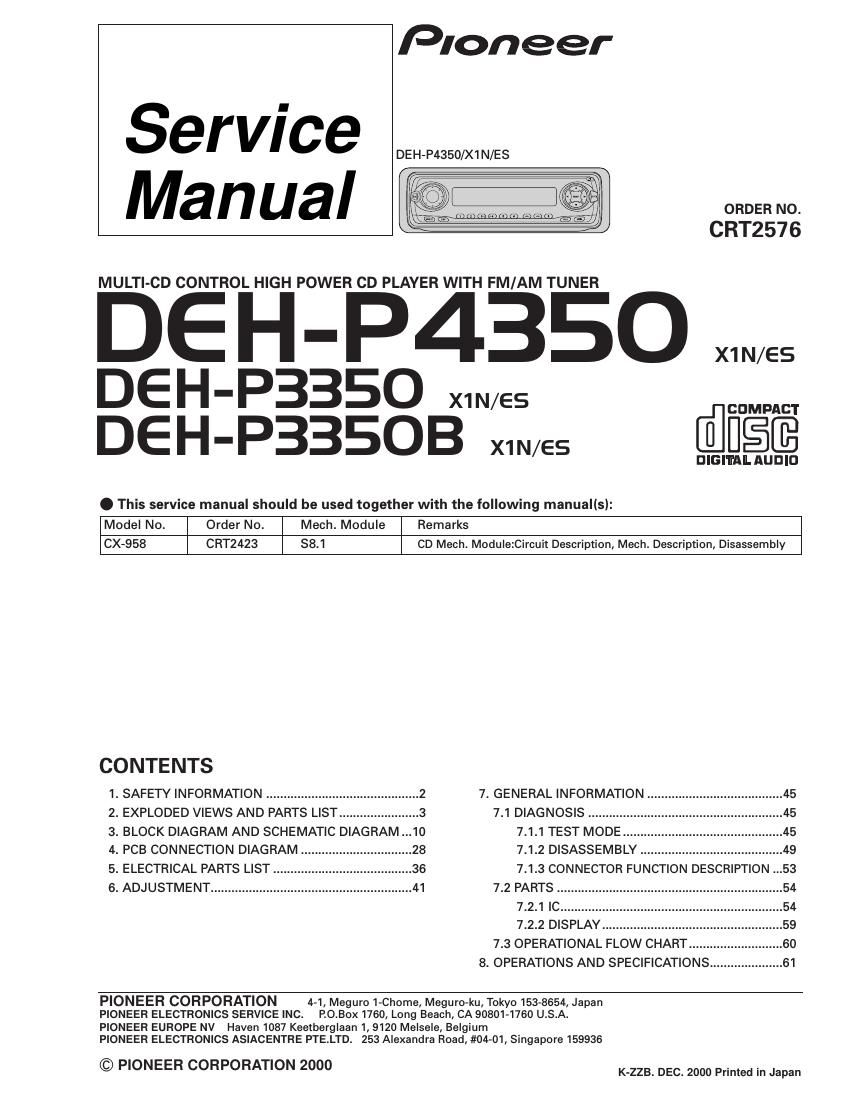

Extracted text from pioneer dehp 3350 service manual (Ocr-read)
Page 1
2 DEH-P4350,P3350,P3350B -CD Player Service Precautions 1. For pickup unit(CXX1285) handling, please refer to"Disassembly"(see page 49). During replacement, handling precautions shall be taken to prevent an electrostatic discharge(protection by a short pin).2. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a con- nector is plugged or unplugged. 3. Please checking the grating after changing the ser- vice pickup unit(see page 43). 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician.
Page 2
DEH-P4350,P3350,P3350B 3 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 4 7 11310 98 6 5 16 217 1215 14 131 18 19 20
