Pioneer dehp 3150 service manual
This is the 83 pages manual for pioneer dehp 3150 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

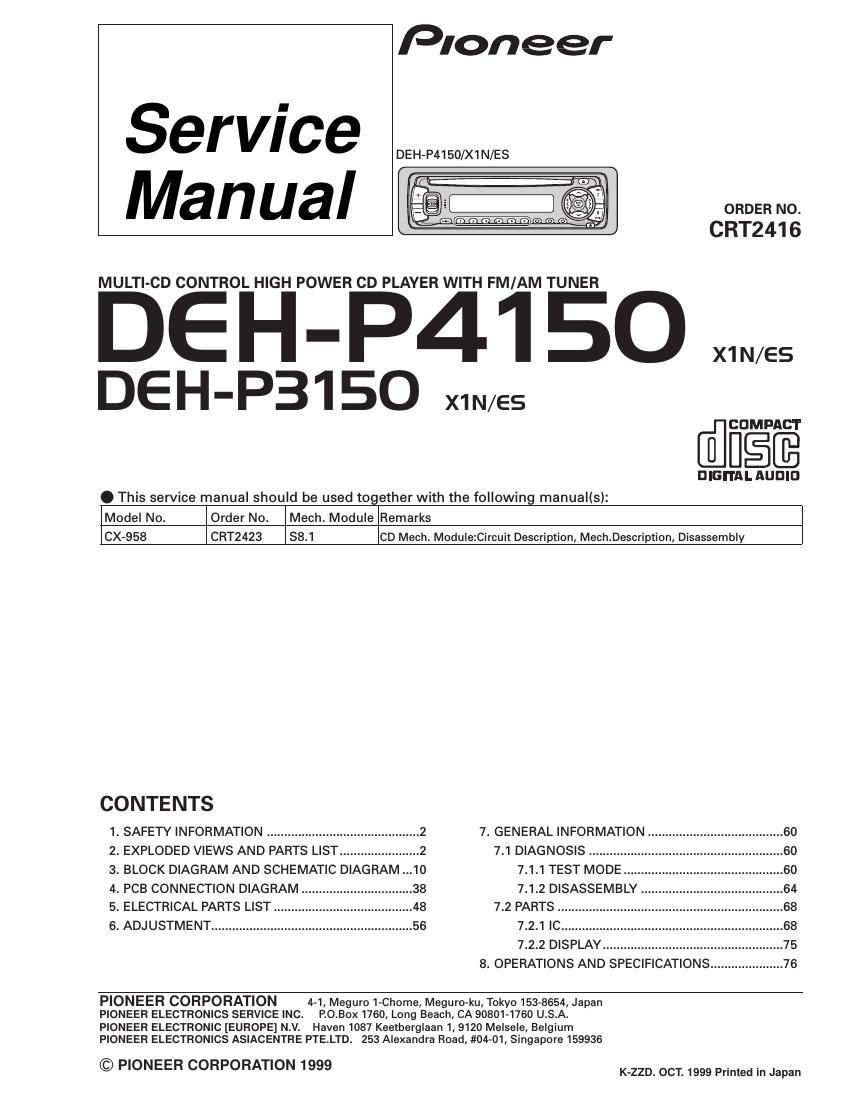

Extracted text from pioneer dehp 3150 service manual (Ocr-read)
Page 1
2 DEH-P4150,P3150 -CD Player Service Precautions 1. For pickup unit(CXX1285) handling, please refer to"Disassembly"(see page 64). During replacement, handling precautions shall be taken to prevent an electrostatic discharge(protection by a short pin).2. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a con- nector is plugged or unplugged. 3. Please checking the grating after changing the ser- vice pickup unit(see page 56). This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. 1. SAFETY INFORMATION 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 20 19 15 12 16 17 4 7 11310 98 6 5 2 14 18 13 1
Page 2
-Owners Manual Model Part No. Language DEH-P4150/X1N/ES CRD3068 English, Spanish, Portuguese(B) CRD3069 Arabic, Chinese DEH-P3150/X1N/ES CRD3144 English, Spanish, Portuguese(B) -Installation Manual Model Part No. Language DEH-P4150/X1N/ES CRD3070 English, Spanish, Portuguese(B), Arabic, Chinese DEH-P3150/X1N/ES CRD3145 English, Spanish, Portuguese(B) 3 DEH-P4150,P3150 1 Cord Assy See Contrast table(2) * 2 Accessory Assy CEA2395 3 Spring CBH1650 4 Screw Assy CEA2396 5 Screw CBA1002 * 6 Polyethylene Bag CEG-127 7 Screw CRZ50P090FMC 8 Screw TRZ50P080FMC * 9 Polyethylene Bag CEG-158 10 Handle CNC5395 11 Bush CNV3930 12 Polyethylene Bag CEG1116 13 Battery See Contrast table(2) 14 Carton See Contrast table(2) 15 Contain Box See Contrast table(2) 16 Protector CHP2251 17 Protector CHP2252 18 Remote Control Unit See Contrast table(2) 19 Case Assy CXB3520 20-1 Owners Manual See Contrast table(2) 20-2 Owners Manual See Contrast table(2) 20-3 Installation Manual See Contrast table(2) 20-4 Polyethylene Bag CEG-162 Mark No. Description Part No. Mark No. Description Part No. (1) PACKING SECTION PARTS LIST NOTE: -Parts marked by * are generally unavailable because they are not in our Master Spare Parts List. -Screws adjacent to Ñmark on the product are used for disassembly. Part No. Mark No.Symbol and Description DEH-P4150/X1N/ES DEH-P3150/X1N/ES 1 Cord Assy CDE6234 CDE6235 13 Battery CEX1030 Not used 14 Carton CHG3878 CHG3885 15 Contain Box CHL3878 CHL3885 18 Remote Control Unit CXB4285 Not used 20-1 Owners Manual CRD3068 CRD3144 20-2 Owners Manual CRD3069 Not used 20-3 Installation Manual CRD3070 CRD3145 (2) CONTRAST TABLE DEH-P4150/X1N/ES and DEH-P3150/X1N/ES are constructed the same except for the following:
