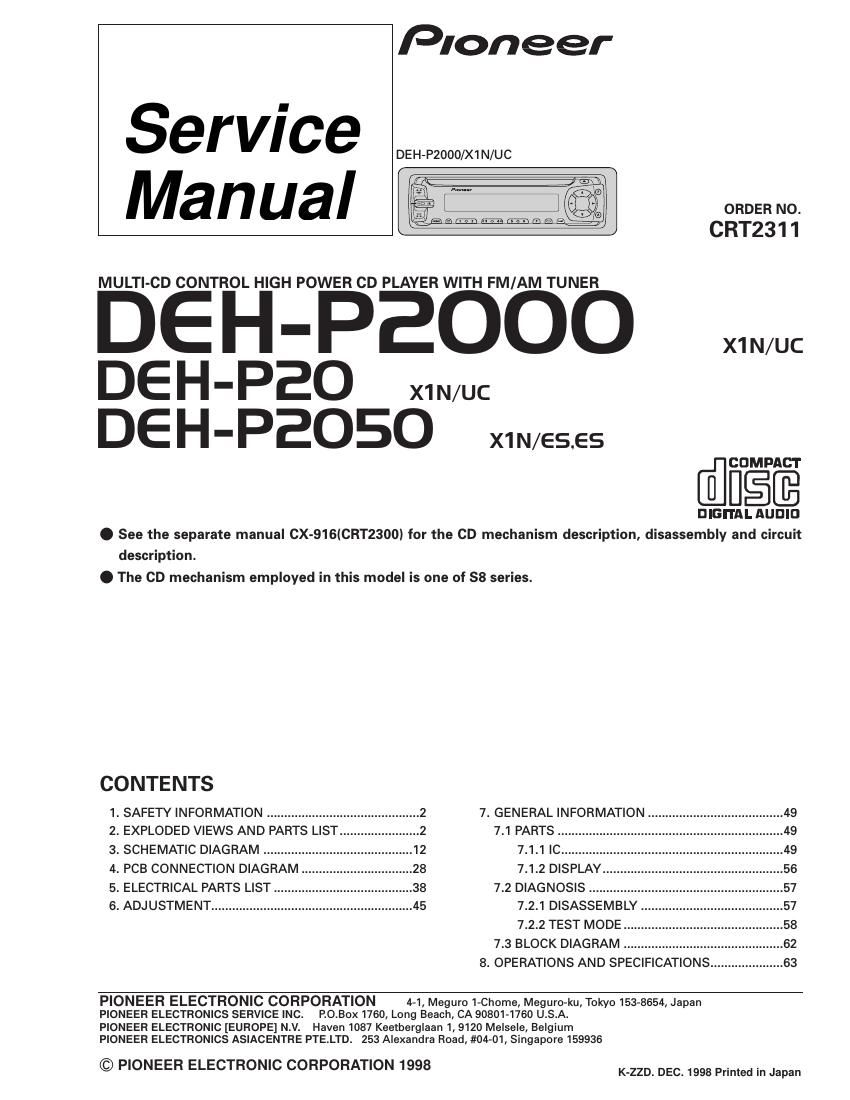

Pioneer dehp 2050 service manual
This is the 75 pages manual for pioneer dehp 2050 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer dehp 2050 service manual (Ocr-read)
Page 1
2 DEH-P2000,P20,P2050 -CD Player Service Precautions 1. For pickup unit(CXX1285) handling, please refer to"Disassembly"(CX-916 Service Manual CRT2300). During replacement, handling precautions shall be taken to prevent an electrostatic discharge(protection by a short pin).2. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a con- nector is plugged or unplugged. 3. Please checking the grating after changing the ser- vice pickup unit(see page 47). CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. W ARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 1. SAFETY INFORMATION 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 20 19 15 12 16 17 4 7 11310 98 6 5 2 14 1
Page 2
3 DEH-P2000,P20,P2050 -Owners Manual Model Part No. Language DEH-P2000/X1N/UC, DEH-P20/X1N/UC CRD2851 English, French, Spanish DEH-P2050/X1N/ES, DEH-P2050/ES CRD2855 English, Spanish, Portuguese CRD2856 Arabic, Chinese -Installation Manual Model Part No. Language DEH-P2000/X1N/UC, DEH-P20/X1N/UC CRD2852 English, French, Spanish DEH-P2050/X1N/ES, DEH-P2050/ES CRD2857 English, Spanish, Portuguese, Arabic, Chinese 1 Cord Assy CDE5874 * 2 Accessory Assy CEA2395 3 Spring CBH1650 4 Screw Assy CEA2396 5 Screw CBA1002 * 6 Polyethylene Bag CEG-127 7 Screw CRZ50P090FMC 8 Screw TRZ50P080FMC * 9 Polyethylene Bag CEG-158 10 Handle CNC5395 11 Bush CNV3930 12 Polyethylene Bag See Contrast table(2) 13 ----- 14 Carton See Contrast table(2) 15 Contain Box See Contrast table(2) 16 Protector CHP2101 17 Protector CHP2102 18 ----- 19 Case Assy CXB3520 20-1 Owners Manual See Contrast table(2) 20-2 Owners Manual See Contrast table(2) 20-3 Installation Manual See Contrast table(2) 20-4 Polyethylene Bag CEG1116 * 20-5 Card See Contrast table(2) Mark No. Description Part No. Mark No. Description Part No. (1) PACKING SECTION PARTS LIST NOTE: -Parts marked by * and | can not be supplied. -Screws adjacent to Ñmark on the product are used for disassembly. Part No. Mark No.Symbol and Description DEH-P2000/X1N/UC DEH-P20/X1N/UC DEH-P2050/X1N/ES DEH-P2050/ES 12 Polyethylene Bag CEG1173 CEG1173 CEG-162 CEG-162 14 Carton CHG3657 CHG3656 CHG3659 CHG3762 15 Contain Box CHL3657 CHL3656 CHL3659 CHL3762 20-1 Owners Manual CRD2851 CRD2851 CRD2855 CRD2855 20-2 Owners Manual Not used Not used CRD2856 CRD2856 20-3 Installation Manual CRD2852 CRD2852 CRD2857 CRD2857 * 20-5 Card ARY1048 ARY1048 Not used Not used (2) CONTRAST TABLE DEH-P2000/X1N/UC, DEH-P20/X1N/UC, DEH-P2050/X1N/ES and DEH-P2050/ES are constructed the same except for the following:
