Pioneer deh 635 service manual
This is the 108 pages manual for pioneer deh 635 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer deh 635 service manual (Ocr-read)

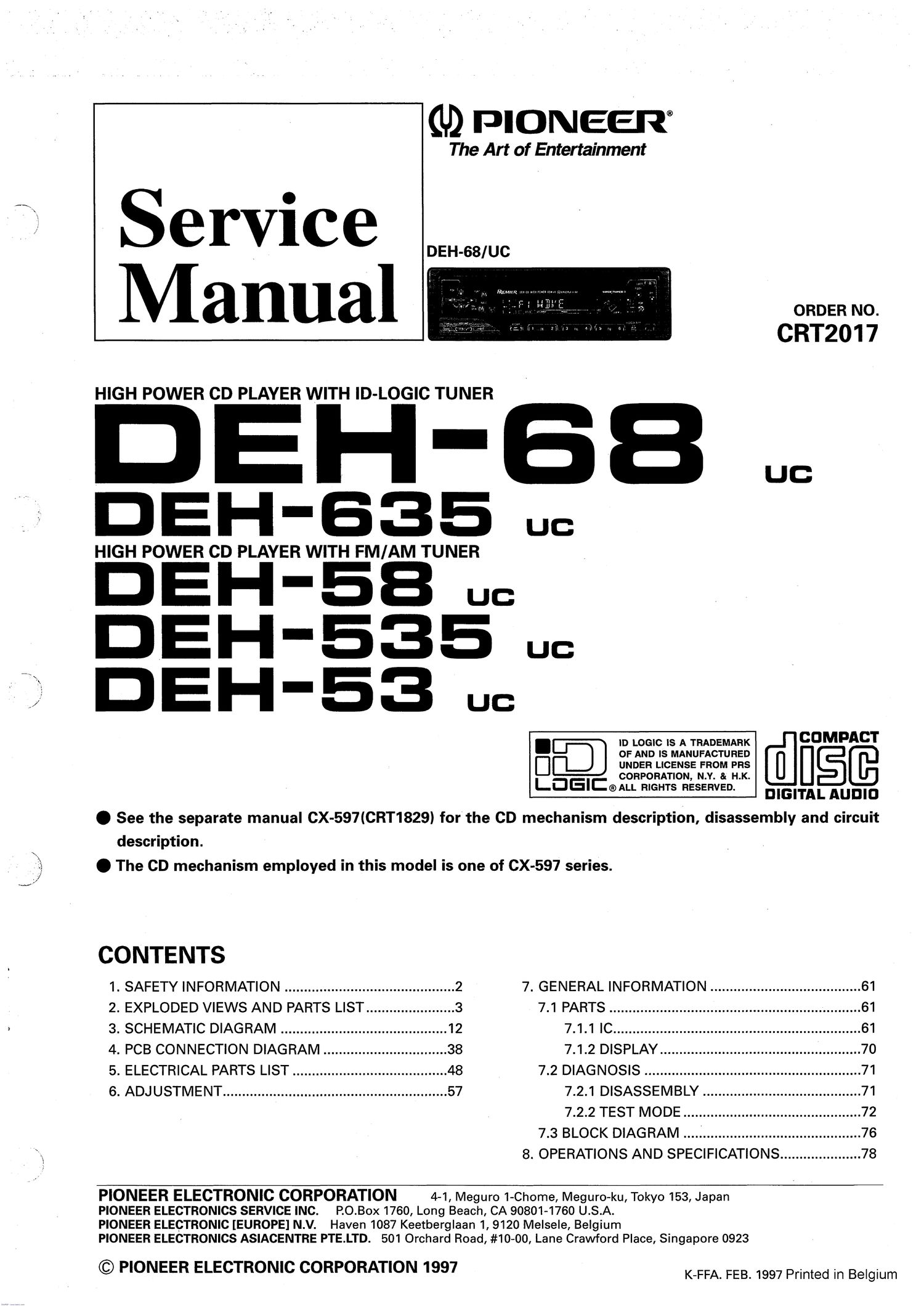

Page 1
(U) PIONEER®
The Art of Entertainment
Service
DEH-68/UC
ORDER NO.
CRT2017
HIGH POWER CD PLAYER WITH ID- LOGIC TUNER
-EH-G35 uc
HIGH POWER CD PLAYER WITH FM/AM TUNER
EH-5 uc
IEH'535 uc:
:7: E H - 5 3 I uc
. ID LOGIC, IS A TRADEMARK
OF AND IS MANUFACTURED
.@ UNDER LICENSE FROM PRS
CORPORATION, N.Y. 8: H. K.
L- a E I C ® ALL RIGHTS RESERVED.
l°sc
DIGITAL AUDIO
0 See the separate manual CX-597ICRT1829) for the CD mechanism description, disassembly and circuit
description.
> O The CD mechanism employed in this model is one of CX-597 series.
CONTENTS
1. SAFETY INFORMATION ............................................ 2 7. GENERAL INFORMATION ....................................... 61
2. EXPLODED VIEWS AND PARTS LIST ....................... 3 , 7.1 PARTS ........................... ' ............................ - .......... 61
3. SCHEMATIC DIAGRAM ........................................... 12 7.1.1 IC ................................................................ 61
4. PCB CONNECTION DIAGRAM ................................ 38 7.1.2 DISPLAY ......................................... I ........... 70
5. ELECTRICAL PARTS LIST ........................................ 48 . 7.2 DIAGNOSIS ........................................................ 71
6. ADJUSTMENT .................................................. . ........ 5 7 7.2.1 DISASSEMBLY ......................................... 71
7.2.2 TEST MODE .............................. _ ................ 72
. 7.3 BLOCK DIAGRAM ......................................... 76
_ . - 8. OPERATIONS AND SPECIFICATIONS ........... I .......... 78
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 USA.
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 501 Orchard Road, #1000, Lane Crawford Place, Singapore 0923
© PIONEER ELECTRONIC CORPORATION 1997 K-FFA. FEB. 1997 Minted in Belgium
