Pioneer deh 4200 ub service manual
This is the 5 pages manual for pioneer deh 4200 ub service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer deh 4200 ub service manual (Ocr-read)

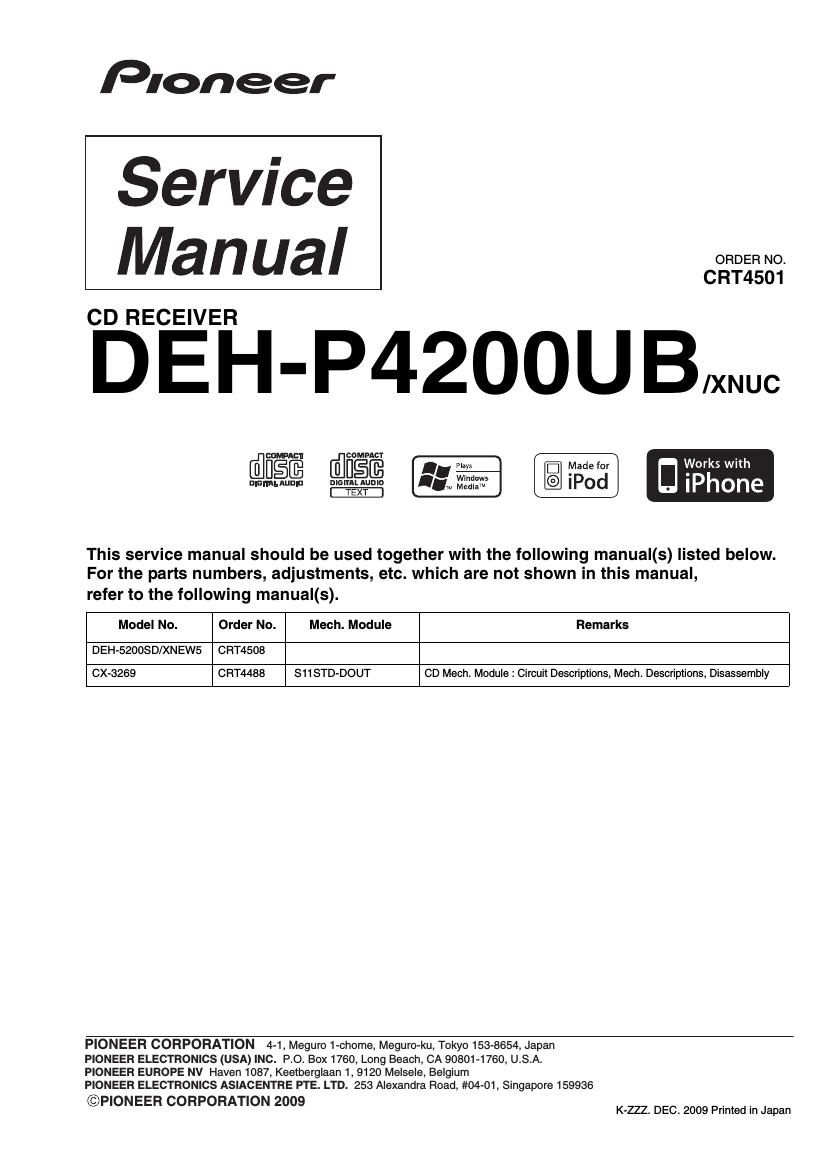

Page 1
Pioneer
Service
Manual
CRT4501
CD RECEIVER
DEH-P4200U Bm
dlfimmT [filfigfi .- mm B Made for Works with
nIGrlnuunin nlsnrngguum . W We??? IPOd D iPhone
This service manual should be used together with the following manual(s) listed below.
For the parts numbers, adjustments, etc. which are not shown in this manual,
refer to the following manua|(s).
Model No. Order No. Mech. Module Remarks
DEH-SZOOSD/XNEWS CRT4508
(EX-3269 CRT4488 511 STD-DOUT CD Mech. Module : Circuit Descriptions, Mech. Descriptions, Disassembly
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
\Q/PIONEER CORPORATION 2009 K-ZZZ. DEC. 2009 Printed in Japan
Page 2
SAFETY INFORMATI6N
WARNING
This product may contain a chemical known to the State of California to cause cancer, or birth defects or
other reprodu
ctive harm.
Health & Safety Code Section 25249.6 - Proposition 65
EXPLODED VIEWS AND PARTS LIST
PAC KlNG(Page 36)
PACKING SECTION PARTS LIST *zNon spare part
Mark No. Description DEH-52008D/XNEW5 DEH-P4200UB/XNUC
1 Cord Assy CDP1268 CDP1269
2 Polyethylene Bag CEG-162 CEG1173
3 Unit Box QHG3057 QHG3070
4 Contain Box QHL3057 QHL3070
5 Case Assy YXBSOOQ Not used
6 Accessory Assy YEA5083 *YEA5071
13 Protector YHP5063 CHP3962
14 Protector YHP5064 CHP3963
15 Remote Control Unit Not used CXE2758
16 CD-ROM QPJ3003 Not used
* 17-1 Caution Card CRP1389 Not used
* 17-2 Caution Card CRP1394 Not used
17»3 Passport CRY1268 Not used
* 17-4 Warranty Card CRY1279 CRY1276
17-5 Quick start GUI Manual QRD3042 Not used
17-6 Installation Manual QRD3044 QRD3054
17-8 Operation Manual Not used QRD3053
Screw Assy Not used YEA5072
" Polyethylene Bag Not used CEG-127
Screw Not used CRZSOPOQOFTC
Screw Not used TRZ50P080FTC
Operation Manual, Installation Manual
Part No. Language
QRD3053 English, French, Spanish
QRD3054 English, French, Spanish
///\\
// \\
// \\\
TRZSOPOBOFTC\ \
/ /< >% )
K CEG- 127 o //
\\ //
\\/ CRZSOPOQOFTC ///
YEA5072 \\\\/////
1 - 2 - 4
