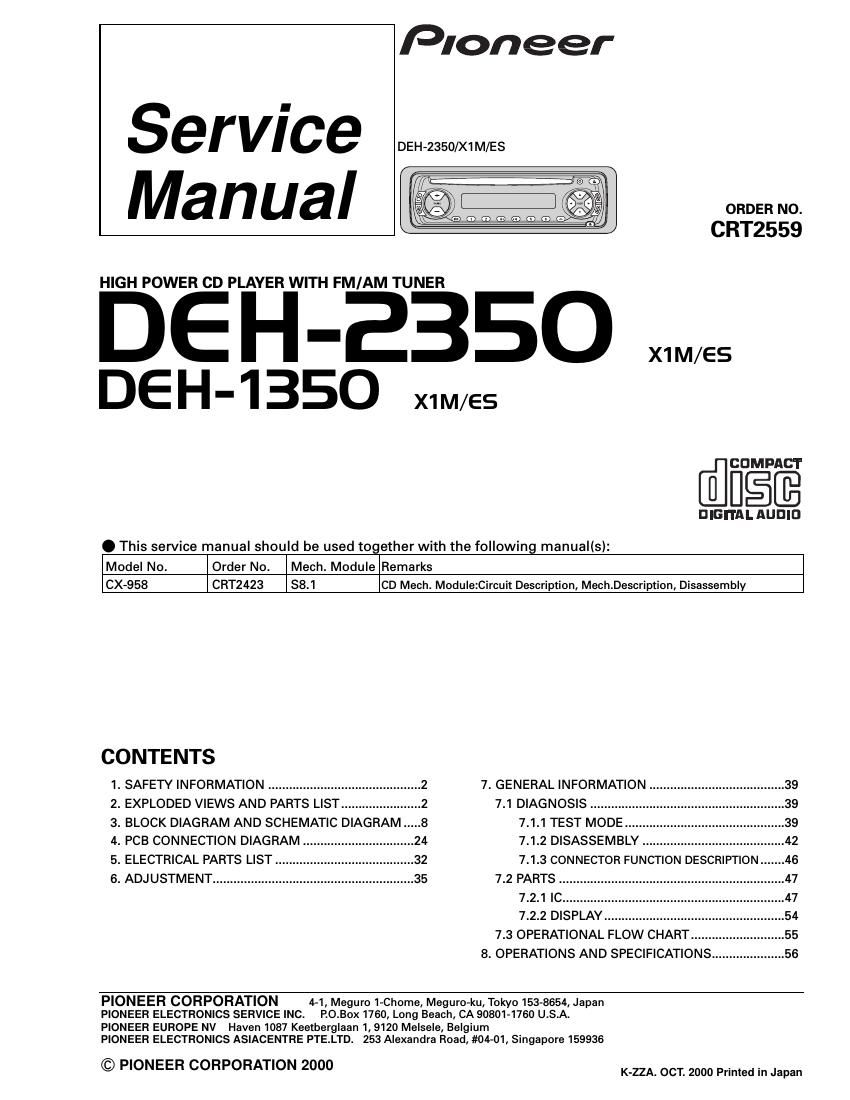

Pioneer deh 2350 service manual
This is the 60 pages manual for pioneer deh 2350 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer deh 2350 service manual (Ocr-read)
Page 1
2 DEH-2350,1350 -CD Player Service Precautions 1. For pickup unit(CXX1285) handling, please refer to"Disassembly"(see page 42). During replacement, handling precautions shall be taken to prevent an electrostatic discharge(protection by a short pin).2. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a con- nector is plugged or unplugged. 3. Please checking the grating after changing the ser- vice pickup unit(see page 37). 1. SAFETY INFORMATION 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 14 116 10 121315 11 5 928 76 4 3 This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician.
Page 2
3 DEH-2350,1350 1 Cord Assy CDE6468 2 Spring CBH1650 3 Screw CBA1002 * 4 Polyethylene Bag CEG-127 5 Screw CRZ50P090FMC 6 Screw TRZ50P080FMC * 7 Polyethylene Bag CEG-158 8 Handle CNC5395 9 Bush CNV3930 10 Polyethylene Bag CEG-16211-1 ----- 11-2 Owners Manual CRD3281 11-3 Installation Manual CRD3283 12 Carton See Contrast table(2) 13 Contain Box See Contrast table(2) 14 Protector CHP2346 15 Protector CHP2347 16 Case Assy See Contrast table(2) Mark No. Description Part No. Mark No. Description Part No. (1) PACKING SECTION PARTS LIST NOTE: -Parts marked by * are generally unavailable because they are not in our Master Spare Parts List. -Screws adjacent to ∇mark on the product are used for disassembly. Part No. Mark No.Symbol and Description DEH-2350/X1M/ES DEH-1350/X1M/ES 12 Carton CHG4150 CHG4157 13 Contain Box CHL4150 CHL4157 16 Case Assy CXB3520 Not used (2) CONTRAST TABLE DEH-2350/X1M/ES and DEH-1350/X1M/ES are constructed the same except for the following: -Owner's Manual, Installation Manual Model Part No. Language DEH-2350/X1M/ES CRD3281 English, Spanish, Portuguese(B), DEH-1350/X1M/ES CRD3283 Chinese, Arabic
