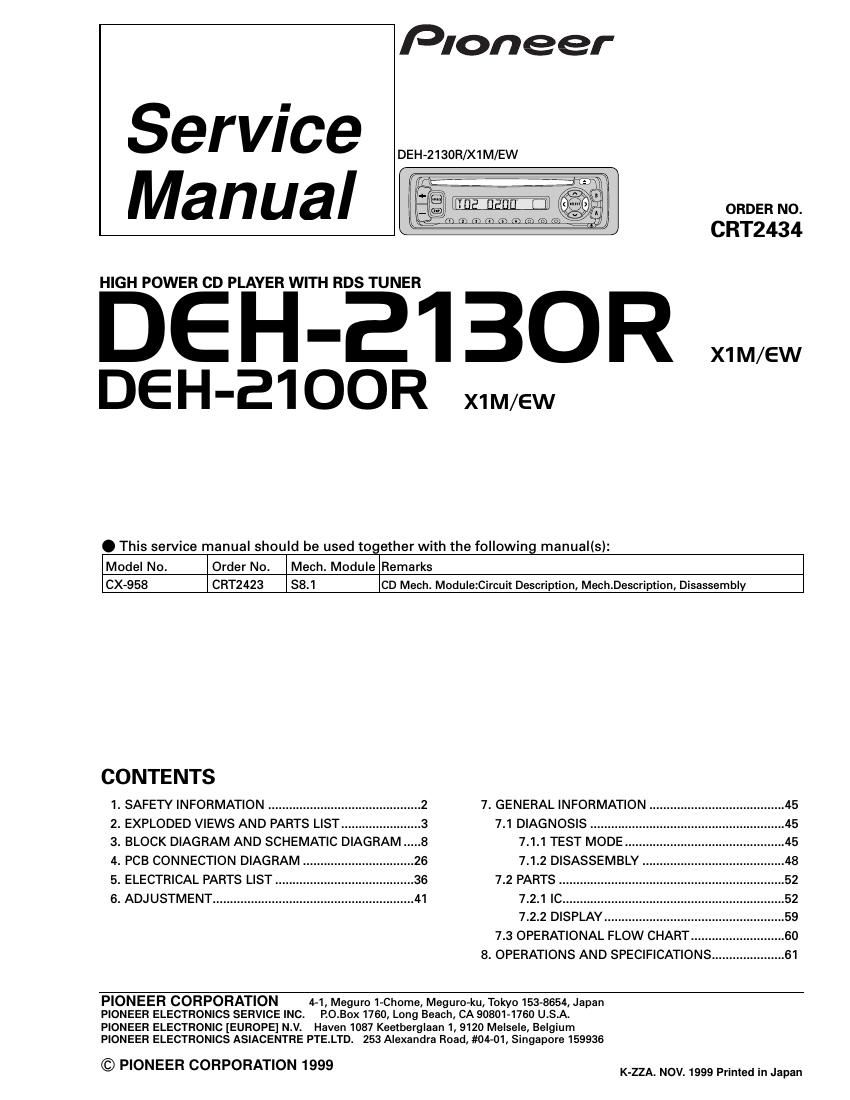

Pioneer deh 2100 r service manual
This is the 66 pages manual for pioneer deh 2100 r service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer deh 2100 r service manual (Ocr-read)
Page 1
2 DEH-2130R,2100R -CD Player Service Precautions 1. For pickup unit(CXX1285) handling, please refer to"Disassembly"(see page 48). During replacement, handling precautions shall be taken to prevent an electrostatic discharge(protection by a short pin).2. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a con- nector is plugged or unplugged. 3. Please checking the grating after changing the ser- vice pickup unit(see page 43). 1. SAFETY INFORMATION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. 1. Safety Precautions for those who Service this Unit. - When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable results. Caution: 1. During repair or tests, minimum distance of 13cm from the focus lens must be kept. 2. During repair or tests, do not view laser beam for 10 seconds or longer. 2. A CLASS 1 LASER PRODUCT label is affixed to the bottom of the player. 3. The triangular label is attached to the mechanism unit frame. 4. Specifications of Laser Diode Specifications of laser radiation fields to which human access is possible during service. Wavelength = 800 nanometers CLASS 1 LASER PRODUCT
Page 2
3 DEH-2130R,2100R 1 Cord Assy CDE6123 2 Screw CBA1002 3 Handle CNC5395 4 Bush CNV3930 * 5 Polyethylene Bag E36-615 6 Polyethylene Bag CEG-162 7-1 Polyethylene Bag CEG1116 7-2 Owner's Manual CRD3137 7-3 Owner's Manual CRD3138 7-4 Installation Manual CRD3139* 7-5 Passport CRY1013 * 7-6 Warranty Card CRY1157 8 Carton See Contrast table(2) 9 Contain Box See Contrast table(2) 10 Protector CHP2243 11 Protector CHP2244 12 Case Assy CXB3520 Mark No. Description Part No. Mark No. Description Part No. (1) PACKING SECTION PARTS LIST NOTE: -Parts marked by * are generally unavailable because they are not in our Master Spare Parts List. -Screws adjacent to ∇mark on the product are used for disassembly. 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 10 112 6 8911 7 4 3 5 2 Part No. Mark No.Symbol and Description DEH-2130R/X1M/EW DEH-2100R/X1M/EW 8 Carton CHG3951 CHG3950 9 Contain Box CHL3951 CHL3950 (2) CONTRAST TABLE DEH-2130R/X1M/EW and DEH-2100R/X1M/EW are constructed the same except for the following: -Owner's Manual, Installation Manual Model Part No. Language DEH-2130R/X1M/EW CRD3137 English, Spanish, German DEH-2100R/X1M/EW CRD3138 French, Italian, Dutch CRD3139 English, Spanish, German, French, Italian, Dutch
