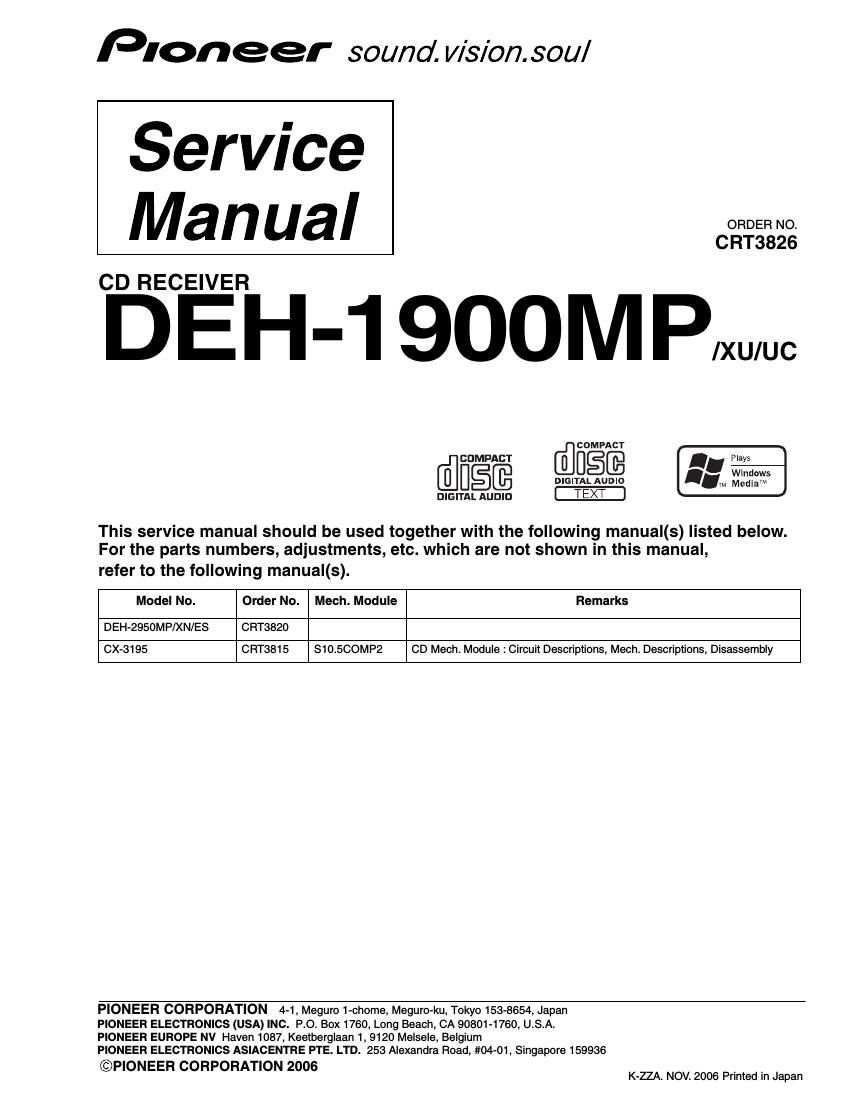

Page 1
Pioneer sound. vision. sou/
Service
Manual Cissy;
CD RECEIVER
DEH-1 900M Pm
COMPACT
[tinge -
. Windows
DIGITAL AUDIO W Media
DIGITAL AUDIO TEXT
This service manual should be used together with the following manual(s) listed below.
For the parts numbers, adjustments, etc. which are not shown in this manual,
refer to the following manual(s).
Model No. Order No. Mech. Module Remarks
DEH-2950MP/XN/ES CRT382O
CX-3195 CRT3815 S10.SCOMP2 CD Mech. Module : Circuit Descriptions, Mech. Descriptions, Disassembly
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
©PIONEER CORPORATION 2006 K-ZZA NOV 2006 Printed in Japan
Page 2
Fri
1 I
2
SAFETY INFORMATION
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of
California to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65
EXPLODED VIEWS AND PARTS LIST
PACKING(Page 8)
PACKING SECTION PARTS LIST *:Non spare part
Mark No. Description DEH-2950MP/XN/ES DEH-1900MP/XU/UC
2 Accessory Assy CEA6708 CEA6707
12 Polyethylene Bag CEG1373 CEG1374
13 Carton CHG5984 CHG6002
14 Contain Box CHL5984 CHL6002
17-1 Installation Manual CRD4139 CRD4137
17-2 Owner's Manual CRD4138 CRD4136
17-3 Owner's Manual CRD4140 Not used
* 17-5 Warranty Card Not used CRY1246
18 Case Assy CXBBSZO Not used
20 Screw Not used BPZZOPOSOFTC
Owner's Manual,|nsta|lation Manual
Part No. Language
CRD4136 English, French, Spanish
CRD4137 English, French, Spanish
EXTERIOR(Page 10)
EXTERIOR SECTION PARTS LIST
Mark No. Description DEH-2950MP/XN/ES DEH-1900MP/XU/UC
11 Tuner Amp Unit CWN2037 CWN2030
38 Detach Grille Assy CXC7309 CXC6991
40 Button(<,>) CA09867 Not used
41 Button(UP) CAC9868 Not used
