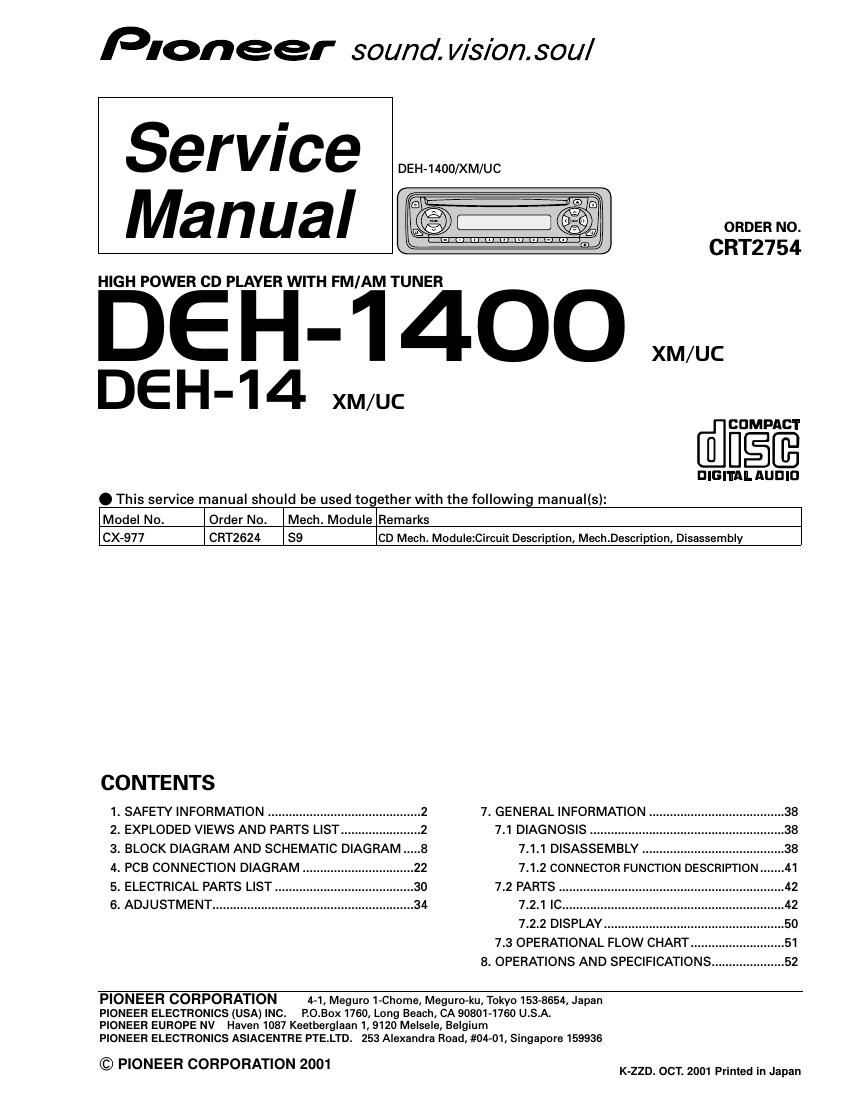

Pioneer deh 14 service manual
This is the 56 pages manual for pioneer deh 14 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer deh 14 service manual (Ocr-read)
Page 1
2 DEH-1400,14 -CD Player Service Precautions 1. For pickup unit(CXX1480) handling, please refer to"Disassembly"(see page 38). During replacement, handling precautions shall be taken to prevent an electrostatic discharge(protection by a jumper-solder). 2. During disassembly, be sure to turn the power off since an internal IC might be destroyed when a con- nector is plugged or unplugged.3. Please checking the grating after changing the pickup unit(see page 35). 4. In this product, because the memory capacity of the microcomputer is insufficient, the test mode is not installed. However grating of the pickup unit can be confirmed. CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. W ARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 1. SAFETY INFORMATION 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 14 1 10 121315 17 5 928 76 4 3 16 11
Page 2
3 DEH-1400,14 1 Cord Assy CDE6468 2 Spring CBH1650 3 Screw CBA1002 * 4 Polyethylene Sheet CNM4338 5 Screw CRZ50P090FMC 6 Screw TRZ50P080FMC * 7 Polyethylene Bag CEG-158 8 Handle CNC5395 9 Bush CNV3930 10 Polyethylene Bag CEG117311-1 Owners Manual CRD3487 11-2 Installation Manual CRD3492 * 11-3 Card ARY1048 12 Carton See Contrast table(2) 13 Contain Box See Contrast table(2) 14 Protector CHP2421 15 Protector CHP2422 16 Screw(M3x4) CBA1488 17 Accessory Assy CEA2781 Mark No. Description Part No. Mark No. Description Part No. (1) PACKING SECTION PARTS LIST NOTE: -Parts marked by * are generally unavailable because they are not in our Master Spare Parts List. -Screws adjacent to ∇mark on the product are used for disassembly. Part No. Mark No.Symbol and Description DEH-1400/XM/UC DEH-14/XM/UC 12 Carton CHG4489 CHG4493 13 Contain Box CHL4489 CHL4493 (2) CONTRAST TABLE DEH-1400/XM/UC and DEH-14/XM/UC are constructed the same except for the following: -Owner's Manual, Installation Manual Model Part No. Language DEH-1400/XM/UC CRD3487 English, French, Spanish DEH-14/XM/UC CRD3492
