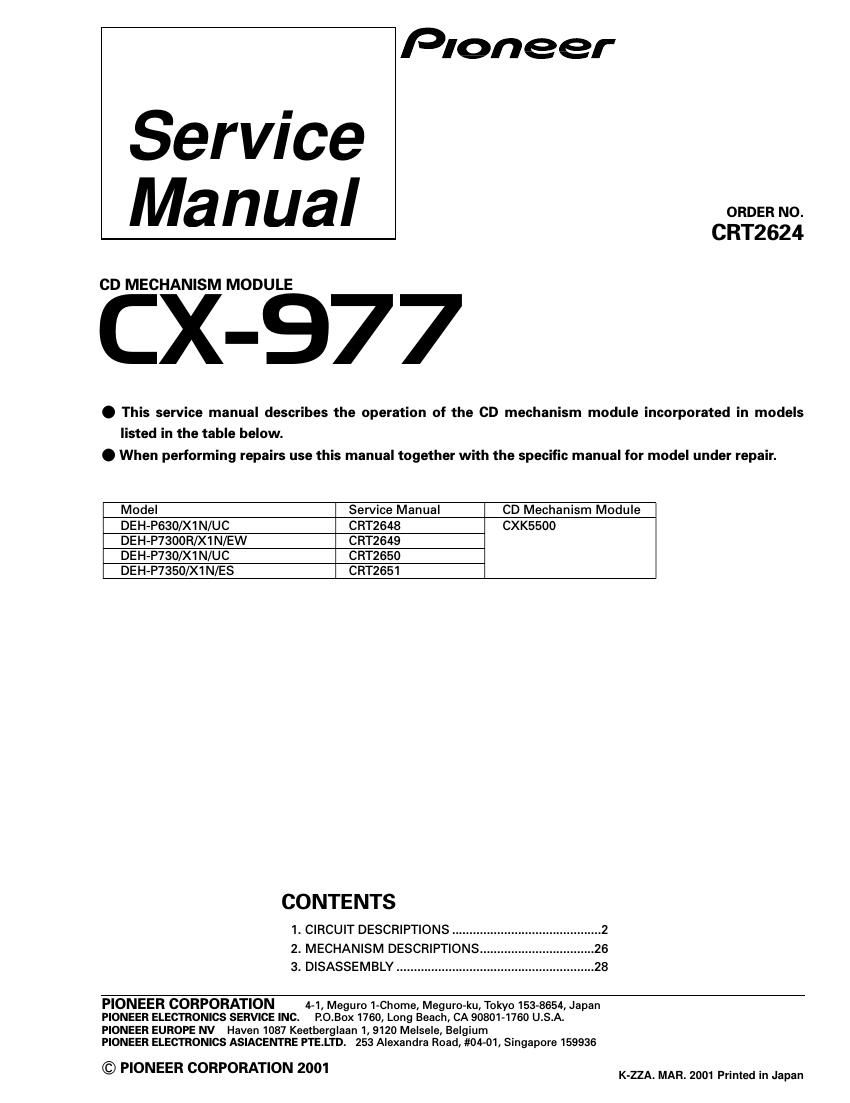

Pioneer cx 977 service manual
This is the 30 pages manual for pioneer cx 977 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer cx 977 service manual (Ocr-read)
Page 1
2 C X-97 7 1. CIRCUIT DESCRIPTIONS From divisional viewpoint, the CX-977 is roughly divided into four sections, namely, Preamplifier, Servo, Power Supply and Loading Control. This LSI realizes eight types of automatic adjustments (controls) through cooperative work between Preamplifier and Servo unit. Because the system uses the single power source (+ 5v) specification, reference voltages used in the servo system (Preamplifier, Servo DSP and Pickup) are all Vref (2.1V). 1.1 PREAMPLIFIER (TA2153FN; IC101) The Preamplifier processes output signals sent from the Pickup and generates signals to supply to each unit of the next stage, that is, Servo, Demodulator or Control. It also performs power control of Pickup's laser diode. Signals from the Pickup are I-V-converted by the Preamplifier, which is built-in in Pickup's photo detector, and then added-up by the RF amplifier to obtain signals such as RF, FE and TE. Reference voltage, Vref (2.1v), is output from #19 pin of the IC, and 2Vref (4.2v) is supplied to the Servo DSP as the reference voltage to determine its D range of A/D input. Fig. 1: TA2153FN circuit
Page 2
3 C X-97 7 1) Focus Error Amplifier unit In this sub-unit, outputs from the photo detector, namely, (A+C) and (B+D), are processed in the differential amplifier and further in the error amplifier, and then, (A+C-B-D) is output as FE signal from #16 pin of IC101 (TA2153FN). Low frequency component of voltage FE is expressed as: FE = (A+C-B-D) x (150k/(51k+1k)) x (60k/60k) x (120k/60k) = 5.77 times In FE output, "S" curve of approximately 1.45 Vpp on the basis of Vref is obtained. The cutoff frequency of the succeeding amplifier is 11.4 kHz. 2) Tracking Error Amplifier unit In this sub-unit, outputs from the photo detector, namely, E and F, are processed in the differential amplifier and further in the error amplifier, and then, (E-F) is output as TE signal from #14 pin of IC101 (TA2153FN). Low frequency component of voltage TE is expressed as: TE = (E-F) x 300k/100k x 82k/20k = 5.8 times In TE output, "TE" waveform of approximately 1.51 Vpp on the basis of Vref is obtained. The cutoff frequency of the succeeding amplifier is 20 kHz. Fig. 2: FE circuit Fig. 3: TE circuit
