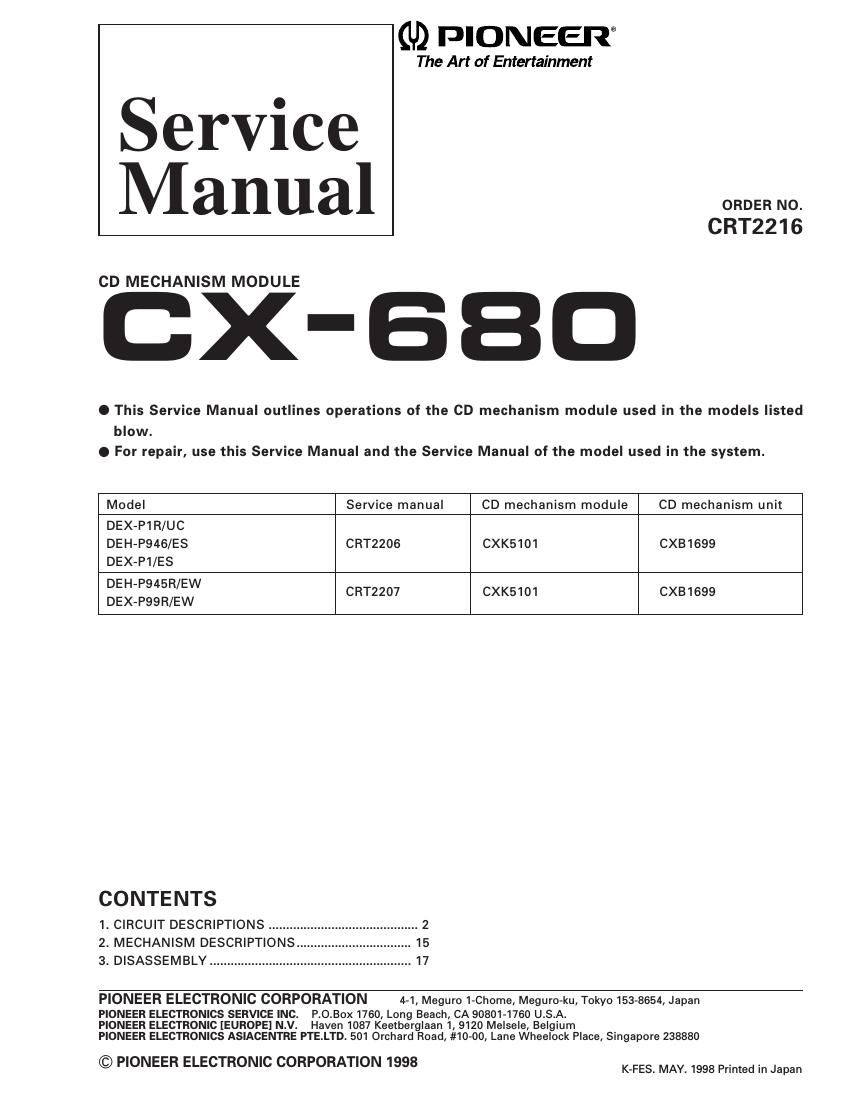

Pioneer cx 680 service manual
This is the 19 pages manual for pioneer cx 680 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer cx 680 service manual (Ocr-read)
Page 1
CX-680 2 1. CIRCUIT DESCRIPTIONS 1.1 Preamplifier (UPC2572GS: IC101) Fig. 1 Block Diagram of UPC2572GS Fig. 2 APC Circuit The preamplifier processes pickup output signals to generate signals to be sent to the servo, demodula- tor, and controller. The preamplifier with built-in photodetector converts signals from the pickup into intermediate voltage in the pickup. Then, addition is made in the RF amplifier (IC101) to obtain RF, FE, TE, and TE zero cross signals. The system consists of the UPC2572GS and other components explained below. The system uses a single power source (+5 V). There- fore, the reference voltage of IC101 and the reference voltage of the power unit and servo circuit are REFO (+2.5 V). REFO is obtained from REFOUT of servo LSI (IC201: UPD63702GF) via a buffer, and is output from Pin 19 of IC101. This REFO is used as reference for all measurements. Note: Do NOT short-circuit REFO and GND during measurement. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 X12 RF envelope AGC Detection X3 Phase detection 3T detection Bottom DC shift Peak Control DC shift Bottom Peak 120kW DEFECT circuit FEBALFE BAL Vcc Mirror circuit FEBAL APC X2 Vcc FE-BAL TE-BAL ASY EFM-OUT C.DEF DEFECT RFOK MIRR 3T-OUT C.FE FE-OUT FE- GND TE- TE-OUT1 TE-OUT2 DET-IN DET-OUT VREF-IN VREF-OUTLDONLD PDEF DB C A Vcc C2.3T C1.3TRF- RF-OUTRF-IN C AGC AGC-OUTEFM-IN HPF TE BAL EFM comparator Control 1) Automatic Power Control (APC) circuit Laser diode has negative temperature characteristics with great optical output when the diode is driven with constant current. Therefore, current must be controlled by a monitor diode to ensure constant out- put. Thus functions the APC circuit. LD current can be obtained by measuring the voltage between LD1 and GND. The current value is approximately 35 mA. Vcc (5V) Vr LD MDUPC2572GS 16 PD 17 LD 15 Q101 2SD1664 C124 0.1mF C101 (100mF/6.3V) R101 10W LD1 R102 12W5V CONT Q102 UMD2N18 5V5V 1kW150kW 16kW R112 2.2kW C104 0.33mF 5 1kW 2.5V Pickup unit
