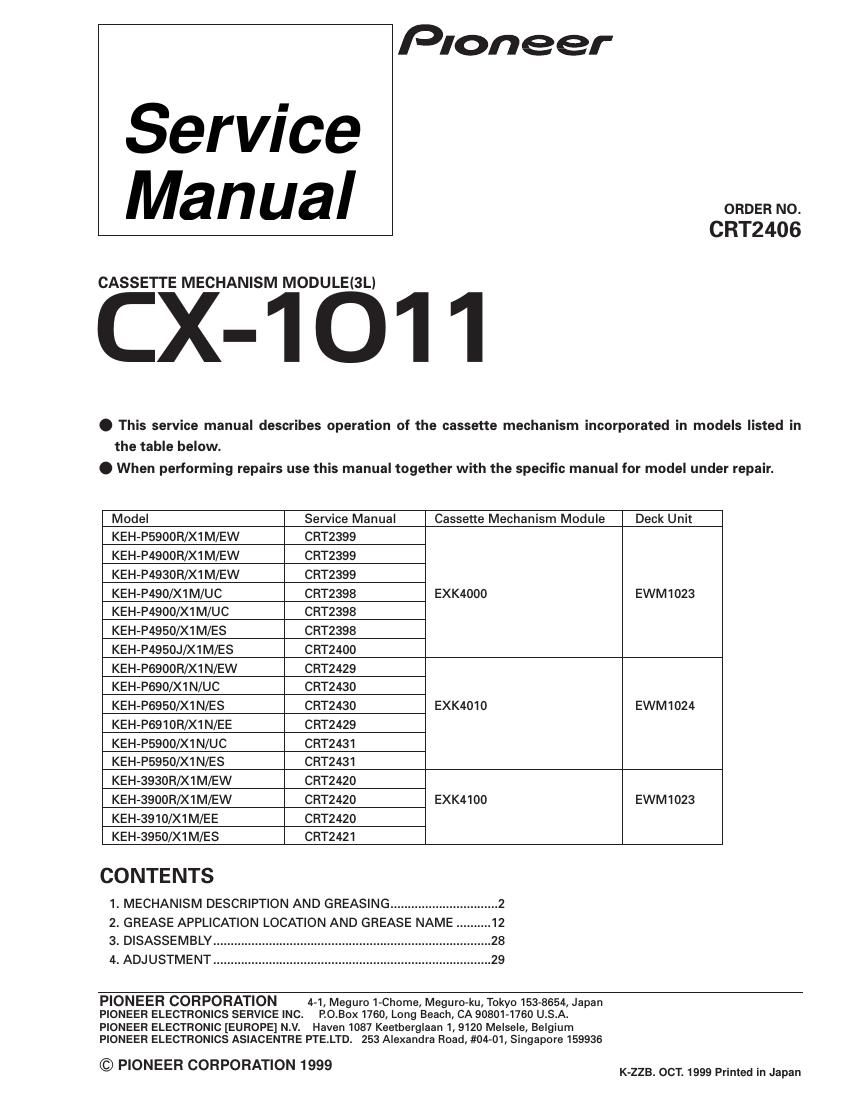

Pioneer cx 1011 service manual
This is the 30 pages manual for pioneer cx 1011 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer cx 1011 service manual (Ocr-read)
Page 1
2 CX-1011 1. MECHANISM DESCRIPTION 1.1 DRIVE OPERATION Inserting the cassette tape t Draw in tPut in down tRelease rt Forward play rt REW rt FF rt Reverse play Eject r Draw out r Lift r All motive force(except that for tape running) is supplied by the sub-motor. All the operation modes including tape insertion and ejection are switched via the mode gear. Mode gear Pre mode gear Chassis Worm wheel Worm gear Pre mode gear Worm wheel Worm gear Mode gearSub motor A
Page 2
CX-1011 3 Draw-in arm Draw-in lever Load buffer lever Load switch Load drive lever Cassette tape 1.2 LOADING AND EJECT OPERATIONS(1) -Loading operation 1. Insert a cassette tape into the slot. 2. The cassette tape pushes the draw-in lever. Then the load switch is turned ON via the draw-in arm and load buffer lever. 3. The sub motor starts running. 4. The sub motor turns the mode gear. Then the mode gear moves the load drive lever and load buffer lever. 5. The shaft holder of the load buffer lever rotates the draw-in arm to draw in the cassette tape. -Eject operation 1. The cassette tape is ejected in accordance with the reverse of the loading operations. After that, the load switch is turned OFF and the sub motor stops rotating.
