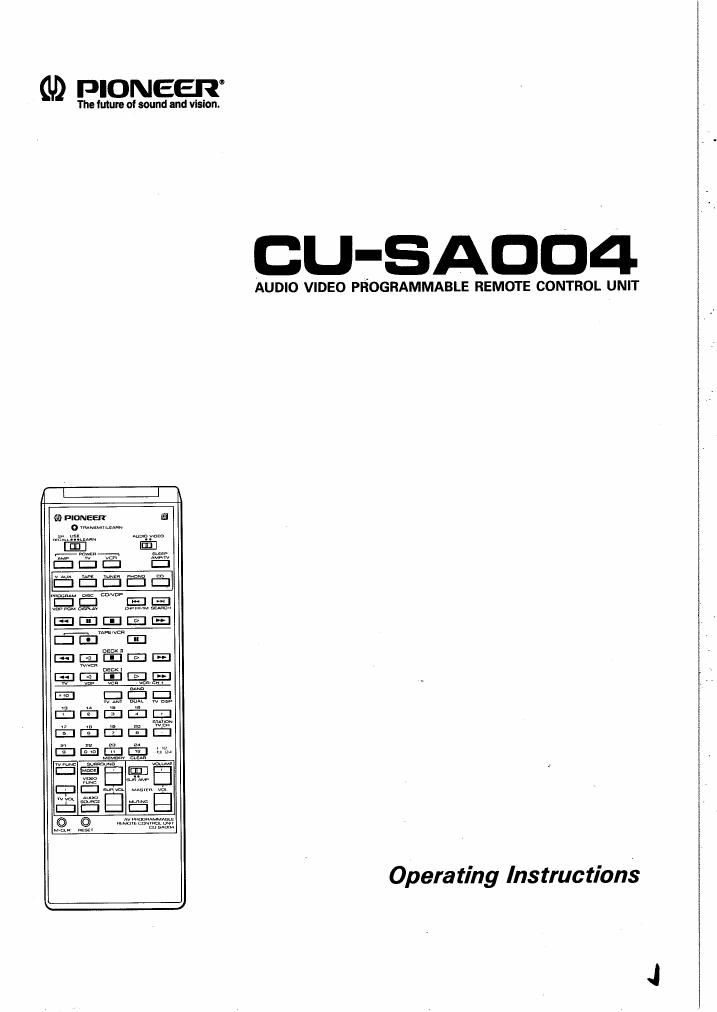

Page 1

QJ) PIONEER

The future of sound and vlslon.

CU-SADD4

AUDIO VIDEO PROGRAMMABLE REMOTE CONTROL UNIT

Opera ting Instructions

Page 2

Thank you for buying this Pioneer product.

Please read through these operating instructions in order to
know how to operate your model properly. After you have
finished reading the instructions, put them away in a safe
place for future reference.

Keys on the remote control unit are effective only if your
components have corresponding functions that are remote
controllable. Remote controllable functions of non-Pioneer
equipment may be programmed into this remote control unit
by using its LEARN mode.

CONTENTS

REMOTE CONTROL OPERATIONS
PANEL FACILITIES .................
USE OF LEARNING FUNCTIONS
SPECIFICATIONS ..................................... l

0(1)le

REMOTE CONTROL OPERATION

LOADING BATTERIES

1. Open the battery compartment cover on the rear of
the remote control unit. The cover should open ea-
sily if you slide ' in the direction of the arrow while
pressing on it with your thumb.

2. Take out the two supplied alkaline batteries (16/
AM3), and insert them into the battery compart-
ment in accordance with the indications in the com-

partment.

3. Close the cover of the battery compartment.

4. Press the RESET button on the bottom left side of
thefront of the unit with something suitable such as
a ball

Incorrect use of batteries may lead to leakage or
rupture. Always be sure to follow these guidelines:
A. .

Always insert batteries into the battery compartment
correctly matching the positive 1+) and negative (- ) Polar-
ities, as indicated inside the compartment.

B.

Never mix new and used batteries.

C.
Batteries of the same size may have different voltages,
depending on their type. Do not mix different type of
batteries.

D.

Be sure to use your batteries in accordance with the caution
labels affixed to them.

2

RANGE OF REMOTE CONTROL

When operating the remote control unit, point the front of
the unit at the front panel of the component. The remote
control unit may be used within a range of about 7 meters
(23 feet) from the remote sensor, within angles of up to
about 30 degrees.

These figures are general and do not necessarily apply to
learned commands.

7 m (23 feet)

Battery Replacement

Replace the batteries as soon as possible if pressing the
control keys does not cause the TRANSMIT/LEARN indi-
cator to light even after the RESET button has been
pressed. Learned commands will be lost from memory
within a short time if batteries are removed. Therefore,
have new batteries ready for replacement before remov-
ing old batteries.

Also, be sure to always use the specified batteries
lLR6/AM3-alkaline batteries).

NOTE:

As the units power switch is connected to the battery

compartment cover:

0 The unit will not operate when the cover is off even if
batteries are loaded.

0 If batteries are not loaded and the cover is Ieplaced, the
memory will be last after a few seconds.

0 With batteries loaded and the cover off, memory is re-
tained for about 30 minutes.

0 Be very careful not to lose the battery compartment
cover
