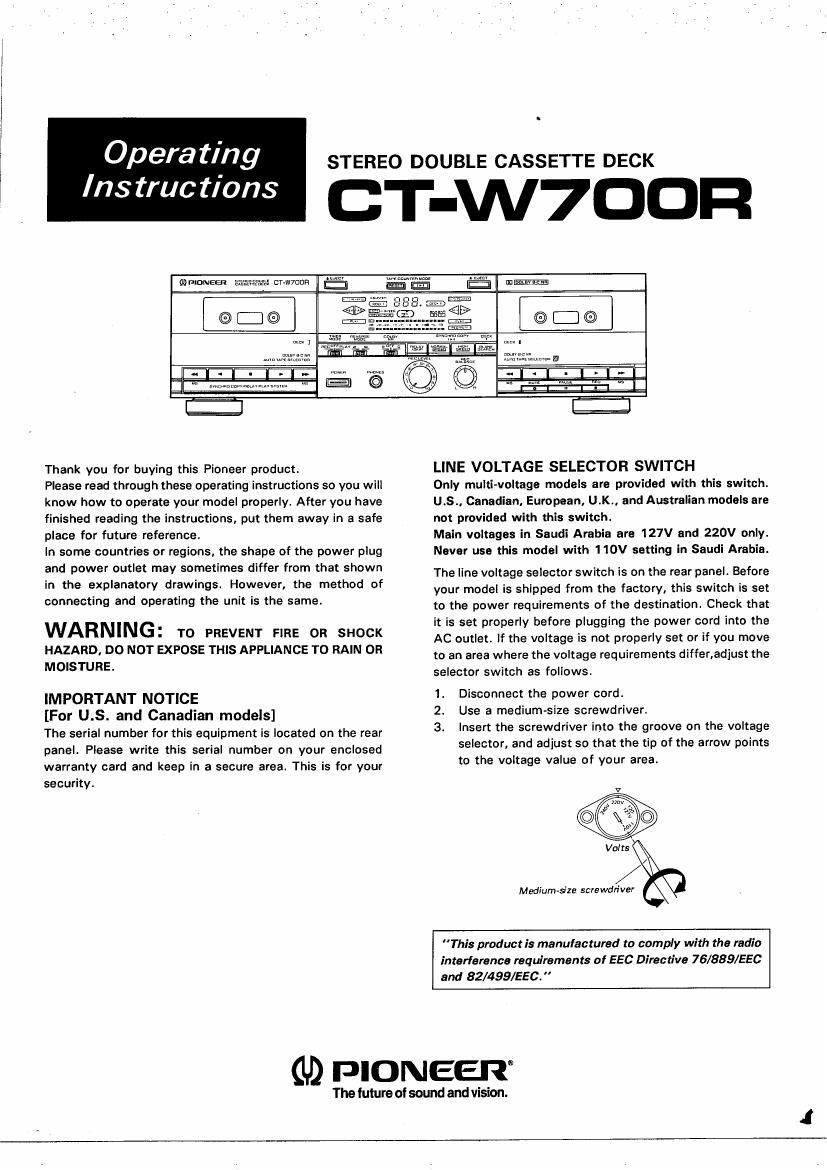

Page 1

Opera ting

Ins truc tions

STEREO DOUBLE CASSETTE DECK

CT-W7DOFI

-mm

DEC

Ii

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will
know how to operate your model properly. After you have
finished reading the instructions, put them away in a safe
place for future reference.

In some countries or regions, the shape of the power plug
and power outlet may sometimes differ from that shown
in the explanatory drawings. However, the method of
connecting and operating the unit is the same

WARNING: TO PREVENT FIRE on SHOCK
HAZARD, DO NOT expose THIS APPLIANCE TO RAIN on
MOISTURE.

IMPORTANT NOTICE

[For U.S. and Canadian models]

The serial number for this equipment is located on the rear
panel. Please write this serial number on your enclosed
warranty card and keep in a secure area. This is for your
security.

LINE VOLTAGE SELECTOR SWITCH

Only multi-voltage models are provided with this switch.
U.S., Canadian. European, U.K.. and Australian models are
not provided with this switch.

Main voltages in Saudi Arabia are 127V and 220V only.
Never use this model with 110V setting in Saudi Arabia.

The line voltage selector switch is on the rear panel. Before
your model is shipped from the factory, this switch is set
to the power requirements of the destination. Check that
it is set properly before plugging the power cord into the
AC outlet. If the voltage is not properly set or if you move
to an area where the voltage requirements differ,adjust the
selector switch as follows.

1. Disconnect the power cord.

2. Use a medium-size screwdriver.

3. Insert the screwdriver into the groove on the voltage
selector, and adjust so that the tip of the arrow points
to the voltage value of your area.

Medium-size screwdriver

"This product is manufactured to comply with the radio
interference requirements of EEC Directive 76/889/EEC
and 82/499/EEC.

(U) PIONEER

The future of sound and vision.

Page 2

IM PORTANT 1

The lightning flash with arrowhead. within an equi-
lateral triangle, is intended to alert the user of the
presence of uninsuleted "dangerous voltage" within
the products enclosure that They be of squicient
magnitude to constitute a risk of electric shock IO
persons,

CAUTION

RlSK 0F ELECTRIC SHOCK
DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.

The exclamation point within an equilateral triangle is
intended to alen the user of the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the apnliance.

IM PORTANT 2

If the apparatus l5 Iltted wtth AC mains power out
Iet(s), see REAR PANEL FACILITIES tor convenient
connection nI additional leFi componentls). Make
all connections to the AC outlet(s) and the signal
terminals first. Connect the plug to the wall socket
last make sure that the power switch is off.

FOR USE IN THE UNITED
KINGDOM

The wires in thts maths lead are coloured in accor-
dance with the following code:

Blue: Neutral

Brown. Live

As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured
marking identifying the terminals in your plug proceed
as follows:

The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or
coloured black.

The wire which is coloured brown must be connected
to the terminal which is marked with the letter L or
coloured red.

Equipment sold in the U.l<. is not supplied with
a power plug.

READ INSTRUCTIONS 7 All the satety and
operating instructions should be read before the
appliance is operated.

RETAIN INSTRUCTIONS 7 The operating instruc-
tions should be retained for Iuture reference.
HEED WARNING -AII warnings on the appliance
and in the operating lnstructions should be

adhered to,

FOLLOW INSTRUCTIONS 7 All Operating and use
instructions should be hallowed.

WATER AND MOISTURE 7 The appliance should
not be used near water - for example, near a
bathtub, Washbowl, kitchen sink, Iaundrv tuby in a
wet basement, or near a swimming pool. etc.

LOCATION -The appliance should be installed in a
stable location.

WALL OR CEILING MOUNTING 7 The appliance
should not be mounted to a well or ceiling.
VENTILATION 7 The appliance should be situated
so that its location or position does not interfere
with its proper ventilation. For example, the ape
pliance should not be situated on a bed. sofa, rug,
or similar surface that may block the ventilation
openings; or, placed in a built-in installation, such
as a bookcase or cabinet that may impede the

flaw OI air through the ventilation apentngs

HEAT - The appliance should be situated away trom
heat sources such as fadlators, heat registers,
stoves, or other appliances (including amplifiers)
that produce heat.

POWER SOURCES The appliance should be
connected to a power supply only of the type
described in the operating instructions or as
marked on the appliance.

POWER-CORD PROTECTION s Power-supply
cords should be routed so that they are not likely
to he walked on or pinched by items placed upon
or against-them, paying particular attention to
cords at plugs, convenience receptacles, and the
point where they exit trcm the appliance.

POLARIZATION 7 If your purchased product is
provided with a polarized power plug, please read
the following Instructions. This product is
equipped with a polarized alternating current line
plug (a plug having one blade wider than the
other). This plug will fit into the power outlet only
one way. This is a safety feature, if you are unable
to insert the plug fully into the outlet try reversing
the plug. if the plug should still fail to fit, contact
your electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the polarized

plug.
cLEANlNG 7 The appliance should be cleaned only
with a polishing cloth or a soft dry cloth Never
clean with furniture wax. henzine, insecticides or
other volatile liquids since they may corrode the
cabinet.
rowan LINEs-An outdoor antenna should be

SEirl/lCE ENTRANCE

located away Iwm power lines.

NONUSE PERIODS-The power cord of the
appliance should he unplugged from the outlet
when lett unused for a long period oi time.

OBJECT AND LIQUID ENTRY-Cars should be
taken so that objects do not (all and liquids are
not spilled into the enclosure through openings.

DAMAGE REQUIRING SERVICE7The appliance
should be serviced by a Pioneer authorized ser-
vice center or qualified seniice personnel when:

a The power-supply cord or the plug has been
damaged; or

0 Objects have Italian, or liquid has been spilled into
the appliance: or

I The appliance has been exposed to rain: or

o The appliance does not appear to operate narr
mally or exhibits a marked change in perfor-
mance; or

o The appliance has been dropped; or the enclosure
damaged

SERVICING7The user should not attempt to
service the appliance beyond that described in the
operating instructions. For all other servicing,
Contact the nearest Pioneer authorized service
center.

SERVICE
ENTRANCE
CON DUCTDRS'

SAFETY INSTRUCTIONS

fin

OUTDOOR ANTENNA GROUNDING - M an outs
side antenna is connected to the antenna termi-
na l, he sure the antenna system is grounded so as
to provide some protection against voltage surges
and built up static charges
In the USA. section 810 OI the National Elec-
trical Code, ANSI/NFPA No, 70-1954. provides
information with respect to proper grounding of
the mast and supporting structure, grounding of
the leadrin wire to an antenna discharge unit size
oi grounding conductors, location of antenna-
dlscharge unit, connection to grounding elec-
trodes. and requirements for the grounding eleo
trode. See Fig. A,

a) Use No. 10 AWG (5.3 mm2 cop-
per, No. a AWG (8.4 min ) alur
minum, No. 17 AWG (1 .o mmz)
copperclad steel, bronze wire. or
larger as ground wire,

b) Secure antenna lead-in and
ground wires to house with
stander)" insulators spaced train
4 feet (1.22 meters) to 6 feet
(1.33 meters) apart.

c) Mount antenna discharge unit as

closely as possible to where lead-

lrl enters house

Use jumper wire not smaller than

No.6 AWG (13.3 mmZ) copper.

or the equivalent, when a sepa-

rate antenna-grounding electrode
is used.

See NEC Section 310-21 (j)

STAND-OFF d)
lNSULATORS h

ANTENNA
LEAD-IN WIRE

I
I
I oRouNo
L. GROUND WIREa,p
(l CLAMPS

aoNolNc
JUMPER d
FIGA ..

To EXTERNAL ANTENNA
TERMINALS 0E PRODUCT

ANTENNA
* DISCHARGE uNtT c

EQUIPMENT i" GROUND
meeo
\
A GROUND
Efigfiiifiiifid'CEm o Esv ' CLAMPS
| ELE R 0 TEM jl'
(ed. interior metal water pipe) ~. on'loNAL ANTENNA

GROUNDING ELECTRODE
DRIVEN 3 FEET (2.44 m)
H.- lNTo THE EAnTrt
" IF Reading: or

LOCAL cooEs sEE

u NEt: sEchoN E10~2l (I).

2
