Pioneer ctw 630 r owners manual

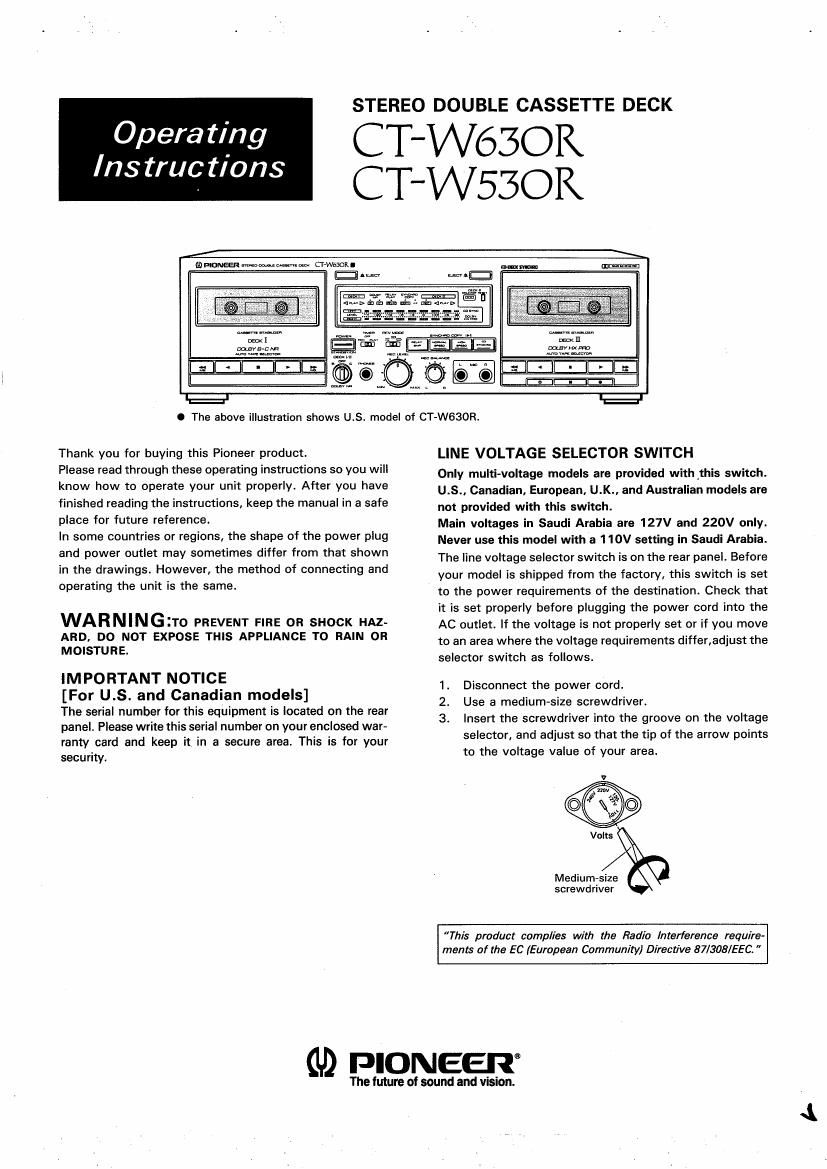

Page 1

Opera ting

Ins truc tions

STEREO DOUBLE CASSETTE DECK

CT'W63OR
CT-WSEOR

mmflmmfl-mm (.77me-

O The above illustration shows U.S. model of CT-W630R.

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will
know how to operate your unit properly. After you have
finished reading the instructions, keep the manual in a safe
place for future reference.

In some countries or regions, the shape of the power plug
and power outlet may sometimes differ from that shown
in the drawings. However, the method of connecting and
operating the unit is the same.

WARNINGrro PREVENT FIRE on suocx HAZ-
ARD, DO NOT expose THIS APPLIANCE TO RAIN on
MOISTURE.

IMPORTANT NOTICE

[For U.$. and Canadian models]

The serial number for this equipment is located on the rear
panel. Please write this serial number on your enclosed war»
ranty card and keep it, in a secure area. This is for your
security.

LINE VOLTAGE SELECTOR SWITCH

Only multi-voltage models are provided with this switch.
U.S., Canadian, European, U.K., and Australian models are
not provided with this switch.

Main voltages in Saudi Arabia are 127V and 220V only.
Never use this model with a 1 10V setting in Saudi Arabia.
The line voltage selector switch is on the rear panel. Before
your model is shipped from the factory, this switch is set
to the power requirements of the destination. Check that
it is set properly before plugging the power cord into the
AC outlet. If the voltage is not properly set or if you move
to an area where the voltage requirements differ,adjust the
selector switch as follows.

1. Disconnect the power cord.

2. Use a medium-size screwdriver.

3. Insert the screwdriver into the groove on the voltage
selector, and adjust so that the tip of the arrow points
to the voltage value of your area.

Medium-size
screwdriver

This product complies with the Radio Interference require-
ments of the EC [European Community) Directive 87/308/EEC. "

(ID PIONEER

The future of sound and vision.

Page 2

IMPORTANT 1

The lightning Ilash with arrowhead. within an equilateral
trianglay is intended to alert the user of the presence of
uninsuloted "dangerous voltage" Within the products
enclosure that maybeot sufficient magnitude to constitute
a risk or electric shock to persons,

CAUTION

RISK OF ELECTRlC SHOCK
DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER IOR BACK]. NO USER»
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is
intended to alert the user oi the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

IMPORTANT 2

If the aoparatusis fitted with AC mains power outletls),
see REAR PANEL FACILITIES for convenient
connection oI additional Hi-Fi oompnnentls). Make all
connections to the AC outletls) and the signal terminals
first. Connect the plug to the wall socket last. make
sure that the power switch is off.

FOR USE IN THE UNITED
KINGDOM

The wires In tint in its had an coloured in
accordance with the Iollowing coda:

Bluu: Neutral

Brown: Livo

As the colours or the wires in the mains lead of this
apparatus may not correspond with the coloured
marking identifying the terminals in your plug proceed
as follows:

The wire which is coloured blue must be connected to
the terminal 'which is marked with the letter N or
coloured black.

The wire which is coloured brown must be connected
to the terminal which is marked with the letter L or
coloured red.

Equipment sold In the 0.x, It not supplied witha power
plug.

READ INSTRUCTIONS -~ All the safety and operating
instructions should be read before the appliance
is operated.

RETAIN INSTRUCTIONS - The operating instructions
should be retained Iar future relevance.

HEED WARNING - All warnings on the appliance and
in the operating instructions should be adhered to.

FOLLOW INSTRUCTIONS - All onerating and use in-
structions should he Iollowed.

WATER AND MOISTURE 7 The appliance should not
be used near water - Ior example, near a bathtub,
washbowl, kitchen sink. laundry tub, in a wet
basement, or near a swimming pool. etc.

LOCATION - The appliance should be Installed in a
stable location.

WALL OR CEILING MOUNTING 7 The appliance
should not be mounted to a wall or ceiling.
VENTILATION - The appliance should be situated so
that its location or position does not intertere with
its proper ventilation. For example. the appliance
should not be situated on a bed, sora, rug, or slmi»
Iar surlace that mav block the ventilation opens
ings; or. placed in a built-in installation, such as
a bookcase or cabinet that may impede the Ilow

ol air through the ventilation openings.

HEAT - The appliance should be situated away Irom
heat sources such as radiators. neat registers,
stoves, or other appliances (including amplifiersl
that produce heat.

POWER souaczs _ The appliance should be oon-
nected to a power supply only of the type
described in the operating instructions or as
marked on the appliance,

POWER-CORD PROTECTION -~ Power-supply cards
should be routed so that they are not likely to be
walked on or pinched oy items placed upon or
against them. paying particular attention to cards
at plugs. convenience receptacles, and the point
where they exit from the appliance,

POLARIZATION - ll your purchased product is providr
ed with a polarized power plug, please read the role
lowing instructions. This product is eauipved with
a polarized alternating current line plug la plug haw
ing one place Wider than the otherl. This plug will
fit into the power outlet only one way. This is a
salety feature. it you are unable to insert the plug
lolly into the outlet, try reversing the plug. it the
plug should still fail to lit, contact your electrician
to replace your obsolete outlet. Do not deleat the
salety purpose or the polari ed plug.

CLEANING - The appliance should be cleaned only
with a polishing cloth or a soft dry cloth. Never
clean with Iurniture wax, oenzine. insecticides or
other volatile liquids since they may corrode the
cabinet.

POWER LINES - An outdoor antenna should be
located away trorn power lines.

NONUSE PERIODS - The power cord oi the appliance
Should be unplugged lrum the outlet when left
unused tor a long period at time.

OBJECT AND LIQUID ENTRV - Care should be taken
so that objects do not fall and liquids are not spilled
into the enclosure through openings.

DAMAGE REQUIRING SERVICE A The appliance

should be serviced by a Pioneer authorized service

center or qualified service personnel when:

The power-supply cold or the plug has been

damaged; or

Objects have lailen, or liquid has been spilled into

the appliance? or

The en nee has been exposed to rain; or

The appliance does not appear to operate normally

or exhibits a marked change in performance; or

The appliance has been dropped; or the enclosure

damaged.

SERVICING - The user should not attempt to service
the appliance beyond that described in the oper~
eting instructions. For all other servicing, contact
the nearest Pioneer authorized service center.

.FOWER LINES

SERVICE
ENTRANCE
coNDucTonSv

- rERMiNALs or

SAFETY INSTRUCTIONS

OUTDOOR ANTENNA GROUNDING - If an outside

antenna is connected to the antenna terminal, be
sure the antenna system is grounded so as to pro-
vide some protection against voltage surges and
built up static charges.
In the U.S.A. section steal the National Electri»
cal Code. ANSI/NFPA No. 7071984, provides
information with respect to proper grounding of
the mast and supporting structure, grounding of
the lead-in wire to an antenna discharge unit, Size
or grounding conductors location oi antenna dis-
charge unit, connection to grounding electrodes,
and requirements tor the grounding electrode. See
Fig, A,

CART 7 An appliance and cart combination should be
moved with care, Quick stops, excessive Iorce,
and uneven sultaces may cause the appliance and
cart combination to overturn,

al Use No.10 AwG (5.3 rnml cop-
per, No.8 AWG (8.4 inm'i alumis
nurn, No.17 AWG (1.0 mmzl
copper-clad steel, bronze wire, or
larger as ground wire.

bl Secure antenna leadin and
ground wires to house with stand»
ctr insulators spaced lrorn 4 test
(1.22 metersi to a leer ll 53

meters) apart.

Iggy cl Mount antenna discharge unit as

wisp closely as possible to where lead»

in enters house.

Use Jumper wire not smaller than

No.6AwG (I3.3mml copper, or

STAND-OFF
iNsULATohs p

to EXTERNAL dl
ANTENNA

PRODUCT the equivalent, when a separate
' GROUND antenna-grounding electrode is
me ,o ANTENNA _
ROUND 3 - DISCHARGE use ,
SERVICE ENTRANCE uNlT a See NEC Sermon 810' lil-
EQUIPMENT GROUND
WIRE a,p
GROUND
POWER SERVICE r CLAMPS
GROUNDING ELECTRODE svsTEM
{e g interior metal water pipei oprluNAt ANTENNA

BONDING
JUMPER a ll

no ,A

" GnouNmNG ELECLRODE

,F- DRIVEN s FEET rut ml
iNro THE EARTH

IF REQUIRED av

LocAt CODES SEE

NEC SECllON BIO-21 lil.

E
