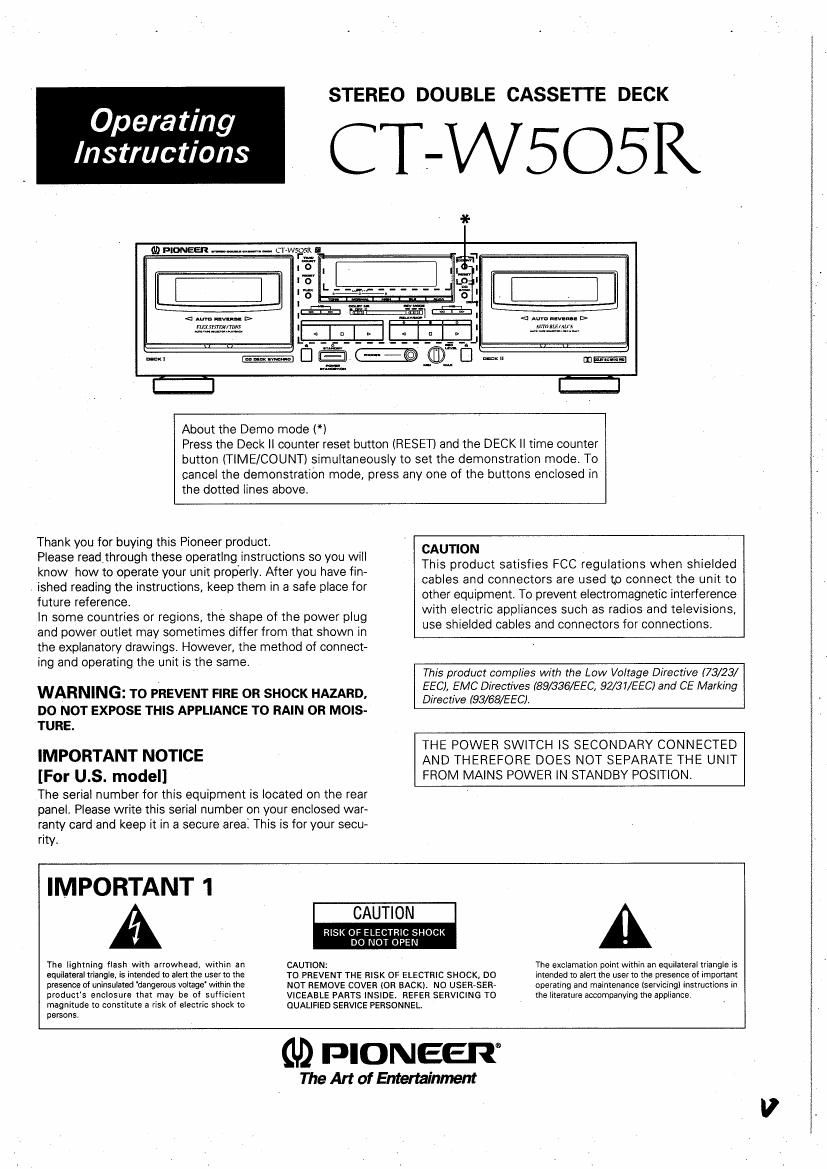

Operating

Instructions

STEREO DOUBLE CASSETTE DECK

CT-WSOSR

< .m ml...- i>

<1 Auvu awn-I i>

About the Demo mode (*I

Press the Deck || counter reset button (RESET) and the DECK Il time counter
button (TIME/COUNT) simultaneously to set the demonstration mode. To
cancel the demonstration mode, press any one of the buttons enclosed in

the dotted lines above.

Thank you for buying this Pioneer product.

Please reathhrough these operatlng instructions so you will
know how to operate your unit properly. After you have fin-
ished reading the instructions, keep them in a safe place for
future reference.

In some countries or regions, the shape of the power plug
and power outlet may sometimes differ from that shown in
the explanatory drawings, However. the method of connect-
ing and operating the unit is the same.

WARNING: TO PREVENT FIRE on SHOCK HAZARD.

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOIS-
TURE.

IMPORTANT NOTICE
[For U.S. model]

The serial number for this equipment is located on the rear
panel. Please write this serial number on your enclosed war-
ranty card and keep it in a secure area: This is for your secu-
rity.

CAUTION

This product satisfies FCC regulations when shielded
cables and connectors are used to connect the unit to
other equipment. To prevent electromagnetic interference
with electric appliances such as radios and televisions,
use shielded cables and connectors for connections,

This product complies with the Low Voltage Directive (73/23/
EEC), EMC Directives (89/336/EEC, 92/3 i/EEC) and CE Marking
Directive (93/68/EEC).

THE POWER SWITCH IS SECONDARY CONNECTED
AND THEREFORE DOES NOT SEPARATE THE UNIT
FROM MAINS POWER IN STANDBY POSITION.

IMPORTANT 1

A

The lightning flash with arrowhead, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated 'dangerous voltage' WIIIIII'I the
product's enclosure that may be of sufficient
magnitude to constitute a risk OI electric shock to
persons,

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK. DO
NOT REMOVE COVER (OR BACK). N0 USERSERV
VICEABLE PARTS INSIDE. REFER SERVICING T0
QUALIFIED SERVICE PERSONNEL.

A

The exclamation point Within an equilateral triangle Is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

(ID PIONEER

The Art of Entertainment

Page 2

IMPORTANT 2

FOR USE IN THE UNITEO
KINGDOM.

Thl wiru in this mains load In coloured in
accordance with the following coda :

blue neutral

brown live
If the plug provided is unsuitable for your socket out»
lets. the plug must be cut offend a suitable plug rit-
ted.

The cur-err plug should be disposed of and must not be
inserted into any 13 amp socket as this can result in elec-
tric shock. The plug or adaptoror the distribution panel
should be provided with 5 amp fuse As the colours of
the wires in the mains lead of this appliance may not cor-
respond with coloured markings identifying the terminals
in your plug, proceed as follows :

The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or coloured
black.

The wire which is coloured brown must be connected
to the terminal ,which is marked with the letter L or
coloured red.

Do not connect either wire to the earth terminal of a
three pin plug,

NOTE
After replacing or changing a luse. the fuse cover in the
plug must be replaced with a fuse cover which corre-

- sponds to the colour of the insert in the base or the plug

or the word that is embossed on the base of the plug,
and the appliance rnust'not be used without a fuse
cover. It lost replacement fuse covers can he obtained
from: your dealer.

Only 5 A fuses approved by B.S.l, or A.S.T.A to BS.
1362 should he used.

READ INSTRUCTIONS - All the salety and operating
instructions should be read before the appliance is
operated.

RETAIN INSTRUCTIONS '- The safety and operating
instructions should be retained lor Iuture refer
ence.

HEED WARNING - All warnings on the appliance and
in the operating instructions should be adhered to.

FOLLOW INSTRUCTIONS - All operating and use in-
structions should be followed.

WATER AND MOISTURE - The appliance should not
be used near water - for example, near a bathtub,
wasnbowl, kitchen sink laundry tub, In a wet base-
ment, or near a swimming pool. etc.

LOCATION - The appliance should be installed in a
stable location.

WALL DR CEILING MOUNTING - The appliance
should not be mounted to a wall or ceiling.

VENTILATION - The appliance should be situated so
that its location or position does not intertere with
its proper ventilation. For example, the appliance
should not be situated on a bed. sofa. mg, or simi-
lar surlace that may block the ventilation openings;
or. placed in a built-in installation. such as a book-
case or cabinet that may impede the flow or air
through the ventilation openings,

HEAT ~ The appliance should be situated away rrurn
heat sources such as radiators, heat registers.
stoves, or other appliances (including amplifiers)
that produce heat.

POWER sounces - The appliance should be con-
nected to a power supply only or the type de:
scribed in the operating instructions oras marked

POWER LINEs - An outdoor antenna should be lo-
cated away from power lines.

NDNUSE PERIODS~ The power cord of the appliance
should be unplugged item the outlet when leit un
used tor a long period of time.

OBJECT AND LIQUID ENTRV - Care should be taken
so that obiects do not lall and liquids are not spilled
into the enclosure through openings.

DAMAGE REQUIRING SERVICE - The appliance

should be serviced by a Pioneer authoriled service

center or qualified service personnel when:

The power-supply cord or the plug has been darn-

agecl.

Obiects have fallen, or liquid has been spilled into

the appliance.

The appliance has been exposed to rain

The appliance does not appear to operate normally

or exhibits a marked change in performance.

The appliance has been dropped or the enclosure

damaged,

SERVICING - The user should not attempt to service
the appliance peyond that described in the operat~
ing instructions. All other servicing should be re
ferred to qualified service personnel,

SAFETY INSTRUCTIONS

OUTDOOR ANTENNA GHOUNDING - It an outside

antenna is connected to the antenna terminal, he
sure the antenna system is grounded so as to prtr
vide some protection against voltage surges and
built-up static charges,
In the USA section 310 of the National Electri»
cal Code, ANSl/NFPA 70, provides information
with respect to propergrounding of the mast and
supporting structure, grounding of the lead-in
wire to an antenna discharge unit, size of ground-
lng conductors. location ol antenna discharge
unit. connection to grounding electrodes, and re-
quirements tor the grounding electrode, See Fig.
A

cnm - An appliance and cart combination should be
moved with care. Quick stops. excessive iorce,
and uneven surfaces may cause the appliance and
cart combination to overturn.

NEC - NATIONAL ELECTRIC CODE

ANTENNA
LEAD»IN
WIRE

on the appliance.

POWER-CORD PROTECTION - Powersupply Cords
should be routed so that they are not likely to be
walked on or pinched by items placed upon or
against them. Pay particular attention to cords at
plugs, convenience receptacles, and the point
where they exit item the appliance

POLARIZATION , it your purchased product is pick
vided with a polarized power plug, please read the
Iollowing instructions, This product is equipped
with a polarized altematinp current line plug (a plug
hawng one blade wider than the other), This plug
will lit into the power cudet only one way This is a
safety ieature. It you are unable to insert the plug
fully into the outlet, try reversing the plug, it the

ANTENNA
DISCHARGE UNIT
(NEC SECTION 810 , 10)

ELECTRIC
SERVICE
EQUIPMENT

GROUNDING CONDUCTORS
(NEC SECTION 810 - 21)

GROUND CLAMPS

plug should still fail to iit Contact your electrician to powga sgnwca Gaouunmc
replace your obsolete outlet. Do not defeat the ELECTRODE sVSTEM
sarety purpose at the polanzed plug. 6- A . (NEC ART 250, PART Hl

CLEANING - The appliance should be cleaned only
with a polishing cloth or a soil dry cloth. Never
clean with furniture wax, benzine. insecticides or
other volatile liquids since they may corrode the
cabinet

CONDENSATION. -

When the unit is brought into a warm room from previously cold conditions or when the room temperature is suddenly increased! condensation
may from inside and the unit may not be able to attain its full performance. if this occurs, allow the unit to stand for about an hour or raise the
room temperature gradually.
