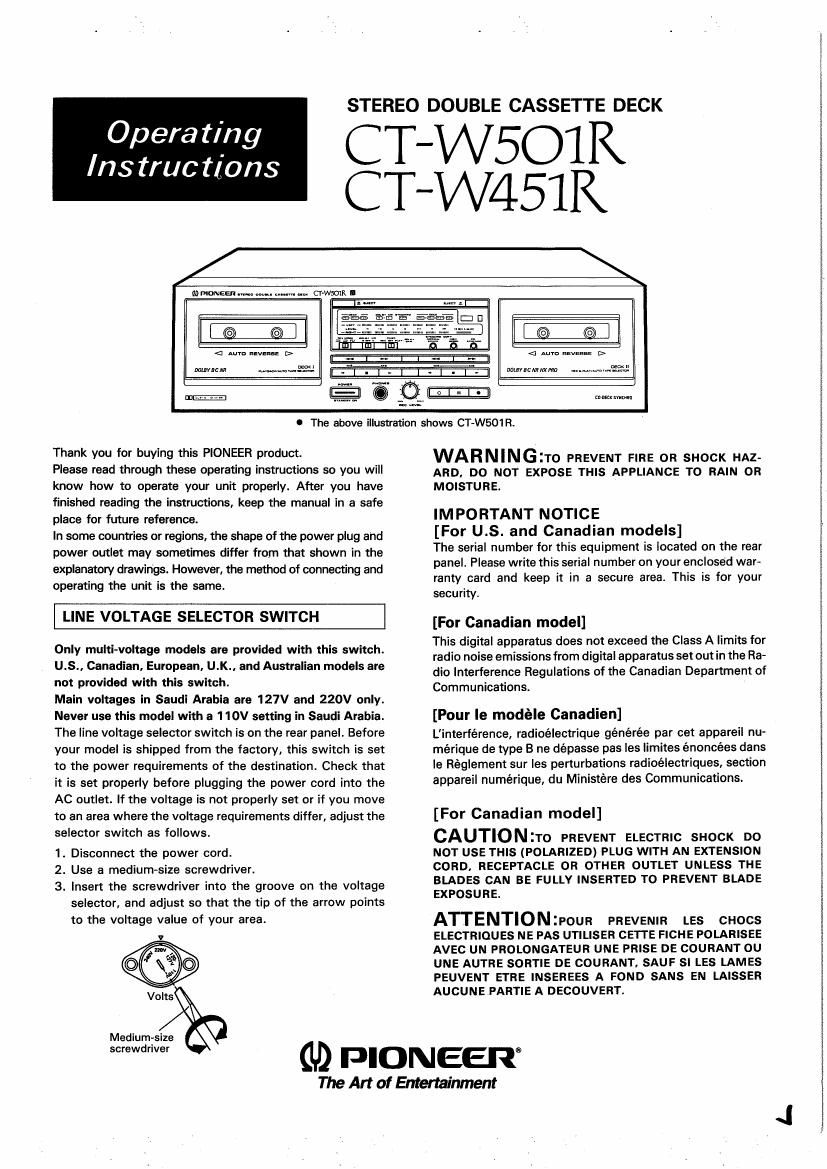

Page 1

Opera ting

Instructions

STEREO DOUBLE CASSETTE DECK

CT-WSOIR
CT-W451K

OD pioneer: ..._. a.-. 0...... m. cT-wsmk I

muvuun

<2 mm was D

7....533

nauvacmmrm

mom mm

0 The above illustration shows CT -W501 R.

Thank you for buying this PIONEER product.

Please read through these operating instructions so you will
know how to operate your unit properly. After you have
finished reading the instructions, keep the manual in a safe
place for future reference.

In some countries or regions, the shape of the power plug and
power outlet may sometimes differ from that shown in the
explanatory drawings. However, the method of connecting and
operating the unit is the same.

LINE VOLTAGE SELECTOR SWITCH

Only multi-voltage models are provided with this switch.
U.S., Canadian, European, U.K., and Australian models are
not provided with this switch.

Main voltages in Saudi Arabia are 127V and 220V only.
Never use this model with a 110V setting in Saudi Arabia.
The line voltage selector switch is on the rear panel. Before
your model is shipped from the factory, this switch is set
to the power requirements of the destination. Check that
it is set properly before plugging the power cord into the
AC outlet. If the voltage is not properly set or if you move
to an area where the voltage requirements differ, adjust the
selector switch as follows.

1. Disconnect the power cord.

2. Use a medium-Size screwdriver.

3. Insert the screwdriver into the groove on the voltage
selector, and adjust so that the tip of the arrow points
to the voltage value of your area.

Medium-size
screwdriver

WARNING:T0 PREVENT FIRE on SHOCK HAZ-
ARD. Do NOT EXPOSE THIS APPLIANCE T0 RAIN on
MOISTURE.

IM PORTANT NOTICE

[For U.S. and Canadian models]

The serial number for this equipment is located on the rear
panel. Please write this serial number on yourenclosed war-
ranty card and keep it in a secure area. This is for your
security.

[For Canadian model]

This digital apparatus does not exceed the Class A limits for
radio noise emissions from digital apparatus set out in the Re-
dio Interference Regulations of the Canadian Department of
Communications.

[Pour Ie modéle Canadien]

L'interférence, radioélectrique générée par cet appareil nu-
mérique de type B ne dépasse pas les IimiteS énoncées dans
le Réglement sur les perturbations radioélectriques, section
appareil numérique, du Ministére des Communications.

[For Canadian model]

CAUTIONn'o PREVENT ELECTRIC SHOCK DO
NOT usE THIS (POLARIZED) PLUG WITH AN EXTENSION
CORD, RECEPTACLE on OTHER OUTLET UNLESS THE
BLADES CAN BE FULLY INSERTED To PREVENT BLADE
EXPOSURE.

ATTENTION :Poun PREVENIR LES CHocs
ELECTRIOUES NE PAs UTILISER CETI'E FICHE POLARISEE
AVEC UN PROLONGATEUR UNE PRISE DE COURANT ou
UNE AUTRE sormE DE COURANT, SAUF SI LES LAMES
PEUVENT ETRE INSEREES A FOND SANs EN LAISSER
AUCUNEPARTIE A DECOUVERT.

GD DIONEEW

TheArtofEntertainment

Page 2

IMPORTANT
The lightning flash with arrowhead, within an equilateral
triangle, is intended to alert the user to the presence oi
uninsulated "dangerous voltage Within the product's
enclosure that may be OI sullicient magnitude chonstimte
a risk of electric shock to persons,
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACKI. NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The exclamation point within an equilateral triangle is
intended to aiert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
SAFETY INSTRUCTIONS
READ INSTRUCTIONS , All the saletv and operating
instructions should be read More the appliance is
operated.
RETAIN INSTRUCTIONS , The saletv and operating
instructions should be rerained for future
reference.
HEEDWARNING - All warningsan the applianceand in
the operating instructions should be adhered to.
FOLLOW INSTRUCTIONS ~ All operxling and use
instructions should be rollowed.
WATER AND MOISTURE , The appliance should not
be used nearwater - for example, near a bathtub,
washbnwl. kitchen sink. laundry tub. in a wet
basement. or near a swimming pool, etc,
LOCATION - The appliance should be installed in a
stable location.
WALL OR CEILING MOUNTING , The appliance
should not be mounted to .5 wall or ceiling,
VENTILATION - The applianceshauld be situated so
that its location or posiliun does not interfere with
its proper ventilation. For example, the appliance
should not be situated Dna bed, sofa, rug, orsimiiar
surface that may block thevarltilnticn openings; or,
placed in a builtrin installation, such as a bookcase
or cabinet that may impede the flow of air through
the ventilation openings.
HEAT - The appliance should he situated away rrom
heat sources such as radiators, heat registers.
stoves, or other appliances [including ampliﬁers)
that produce heat.
POWER SOURCES , The appliance should be
connected to a power supply only or the type
described in the operating instructions or as
marked on the appliance.
newswconn PROTECTION - Powersupply cords
should be routed so that they are not likely to he
walked on Dr pinched by items placed upon or
against thorn. Pay particular attention to cords at
plugs, convenience receptacles, and the point
where they exit from the appliance.
POLARIZATION - If your purchased product is
provided with a Dolariled power plug, please read
thefolldwinginstructidns.This productisequipped
with a polarized altsrnatingcurrsnt line plug ta plug
having one blade wider than the otherl. This plug
will ﬁt into the power outlet only one way. This is a
safety feature. If you are unable to insertthe plug
fully into the outier. try reversing the plug. If the
plug should still fail to ﬁt, Contactydurelectrician to
replace your obsolete outlet. Do not defeat the
salon, purposa or the polariled plug.
CLEANING - The appliance should be cleaned only
with a polishing cloth or s spit dry cloth. Never
clean with furni re wax, benzine, insecticides or
other volatile liquids since they may corrode the
cabinet.
POWER LINES - An outdoor antenna should be located
away from power lines.
NONUSE PERIODS - The power cord of the appliance
should he unplugged rrom the outlet when lert
unused for a long period or time.
OBJECT AND LIQUID ENTRY - Care should be taken
so that objects do nctrall and liquids are not spilled
into the enclosure through openings,
DAMAGE REQUIRING SERVICE - The appliance
should be serviced bya Pioneer authorized service
center or qualiﬁed service personnel when:
The power-supply cord or the plug has been
damaged.
Objects have rallen, or liquid has been spilled into
the appliance.
The appliance has been exposed to rain.
The appliance does not appsarto operate normally
or exhibits a marked change in performance.
The appliance has been dropped or the enclosure
damaged.
SERVICING , The user should not attempt to service
the appliance beyond that described in the
operating instructions. All other servicing should
be referred to qualified service personnel.
ELECTRIC
SERVICE
EQUIPMENT
0 GROUND CLAMPS
OUTDOOR ANTENNA GROUNDING , If an outside
antenna is connected to the antenna terminal, be
sure the antenna system is grounded so as to
provide some protection against voltage surges
and built-up static charges.
In the U. . section 310 of the National Electrical
Code. ANSI/NFFA 704 provides inlarmation with
respect to proper grounding of the mast and
supporting structure. grounding oftlrs lead-in wire
to an antenna discharge unit, sits at grounding
conductors, Iucalion of antenna discharge unit,
connection to grounding electrodes, and
requirements tor the grounding electrode, See Fig.
A
CART - An appliance and cart combination should be
moved with care. Ouick stops, excessive force, and
uneven surfaces may cause the appliance and cart
combination to overturn.

NEC - NATIONAL ELECTRIC CODE
ANTENNA
LEAD IN
WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810 7 20)
GROUNDING CONDUCTORS
lNEC SECTION am 7 21)
"- POWER SERVICE GROUNDING
ELECTRODE SYSTEM
FIG, A (NEC ART 250, PART H)
INFORMATION TO USER [FOR U.S. MODEL]
This equipment generates and uses radio Irequency
energy and it not installed and used properly, that is, in
strict accordance with the manufacturers instructions,
may cause interierence to radio and television recepr
tion. It has been two tested and found to comply with
the limits for a Class B computing device in accordance
with the specifications in Subpart J oi Part 15 of FCC
Rules, which are designed to provide reasonable pro-
tection against such interference in a residential instal-
lation. However, there is no guarantee that interlerence
will not occur in a particular installation.
ll [Ills equipment does cause interference to radio or
television reception, which can be determined by turn-
ing lire equipment on and on, ma user is encouraged to
try to correct the interference by one or more at the
rollowing measures:
a reorient the receiving antenna
a relocate this equipment with respect to the receiver
a move this equipment away ham the receiver
a plug this equipment into a different outlet so that
equipment and receiver are on different branch cir
cuits,
it necessary. the user should consult the dealer or an
experienced radio/television technician to additional
suggestions. The user may find the rollowing booklet
prepared by the Federal Communications Commission
helplul:
"How to Identity arid Resolve Radio-TV Interference
Problems".
This booklet is available trdm the us Government
Printing Office, Washington, D.C., 20402, Stock No.
004-000-00345-4.
The above iﬂwuctiorrs apply only to units Whizh will
be operated in the United States.
2
<
RRBlI17>
En
