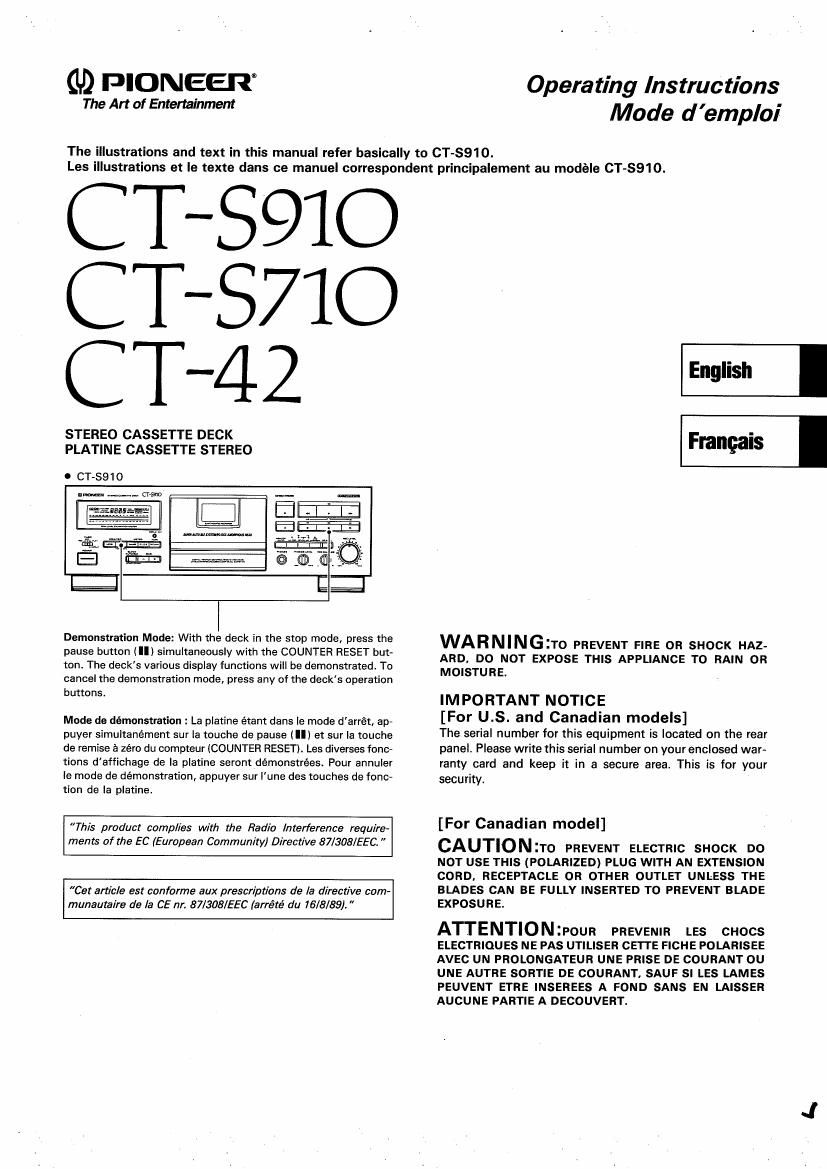

Page 1

(ID PIONEER

The Art of Entertainment

Operating Instructions
Mode d emploi

The illustrations and text in this manual refer basically to (IT-5910.
Les illustrations et Ie texte dans ce manuel correspondent principalement au modéle CT-5910.

C T-S910
C T6710
T-42

STEREO CASSETTE DECK
PLATINE CASSETTE STEREO

0 CT-891O

Demonstration Mode: With the deck in the stop mode, press the
pause button (II) simultaneously with the COUNTER RESET but-
ton. The deck's various display functions will be demonstrated. To
cancel the demonstration mode, press any of the decks operation
buttons.

Mode do demonstration : La platine étant dans la mode darrét, ape
puyer simultanément sur la touche de pause III) et sur la touche
de remise a zéro du compteur (COUNTER RESET). Les diverses tone
tions d'affichage de la platine seront démonstrées. Pour annuler
le mode de demonstration, appuyer sur lune des touches de func-
tion de la platine.

This product complies with the Radio Interference require-
ments of the EC (European Community) Directive 87/308/EEC.

Cet article est conforme aux prescriptions de la directive com»
munauraire de la CE nr. 87/308/EEC Iarrété du 76/8/89). "

Frangais

WARNING:T0 PREVENT FIRE on snocx HAZ-
ARD, Do NOT EXPOSE THIS APPLIANCE To RAIN on
MOISTURE.

IMPORTANT NOTICE

[For U.S. and Canadian models]

The serial number for this equipment is located on the rear
panel. Please write this serial number on your enclosed war-
ranty card and keep it in a secure area. This is for your
security.

[For Canadian model]

CAUTION:T0 PREVENT ELECTRIC snocx Do
NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION
CORD, RECEPTACLE on OTHER OUTLET UNL-Ess THE
BLADES CAN BE FULLY INSERTED To PREVENT BLADE
EXPOSURE.

ATTENTION :Poun PREVENIR LEs cnocs
ELECTRIQUES NE PAS UTILISER CE1TE FICHE POLARISEE
AVEc UN PROLONGATEUR UNE PRISE DE counANT ou
UNE AUTRE sorITIE DE COURANT. sAUI= SI LEs LAMEs
PEUVENT ETRE INSEREES A FOND sANs EN LAISSER
AUCUNE PARTIE A DECOUVERT.

Page 2

IMPORTANT 1

The lightning flesh with arrowhead. wlthln an equilateral
triangle, is intended to alert the user to the presence oi
uninsulatad "dangerous voltage" within the product's
enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER IOR BACK). NO USER»
SERVICEAELE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is
intended to alert the user to the presence ol important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

READ INSTRUCTIONS 7 All the sotety and operating
instrucn'ons should be read before the appliance is
operated.

RETAIN INSTRUCTIONS - The safety and operating
instructions should be retained for future
reference,

HEEDWARNING-Allwarninge ontheeppliancaand in
the operating instructions should be adhered to.

FOLLOW INSTRUCTIONS 7 All operating and use
instructions should be followed.

WATER AND MOISTURE - The appliance should not
be used near water 7 for example, near a bathtub,
washbowl, kitchen sink, laundry tub, in a we!
basement, or near a swimming pool, etc.

LOCATION 7 The appliance should be installed in a
stable location.

WALL OR CEILING MOUNTING 7 The appliance
should not be mounted top wall or ceiling.

VENTILATION - The applianéeshould be situated so
that its location or position does not interfere with
its proper ventilation. For example. the appliance
should not be situated on a bed,sola. rug. orsimiier
suriace that mayblock the ventilation openings; or,
placed in a built~in installation, such as a bookcase
or eabinetthat may impede the ilow cl air through
the ventilation openings

HEAT - The appliance should be situated away from
heat sources such as radiators, heat registers,
stoves. or other appliances (including amplifiers)
that produce heat.

POWER SOURCES - The appliance should be
connected to a power supply only or the type
oeecrlped in the operating instructions or as
marked on the appliance.

POWER-CORD PROTECTION 7 Power-supply cards
should be routed so that they are not likely to be
walked on or pinched by itams placed upon or
against them. Pay particular attention to cords at
plugs, convenience receptacles, and the point
where they exit from the appliance.

POLARIIATION - If your purchased prudum is
provided with a pal d power plug. please read
theiollowinginstructions.This productisequipped
with apolarized alternating current line plug (a plug
having one blade wider than the other). This plug
will fit into the power outlet only one way. This is a
safety feature. It you are unable to insert the plug
fully into the outlet, try reversing the plug. it the
plugshouldatillreiltoiit,contactyourelectricianto
replace your ohsolete outlet. Do not detear the
safety purpose of the polarized plug.

CLEANING - The appliance should be cleaned only
with a polishing cloth or a sort dry cloth. Never
clean with Iumiture wax, benline. insecticides or
other volatile liquids since they may corrode the
cabinet.

SAFETY INSTRUCTIONS

rowan LINES - An outdoor antenna should be located
away lrom power lines,

NONUSE PERIODS - The power cord oi the appliance
should be unplugged (mm the outlet when ieh
unused lor e long period of timer

OBJECT AND Llouln EN'rmr - Care should be taken
sothet objects donut tail end quuidsere not spilled
into the enclosure through openings.

DAMAGE REQUIRING SERVICE 7 The appliance

should be serviced by a Picneerauthorized service

center or gualilied service personnel when:

The powertsuppiy cord or the plug has been

damaged.

Objects have iallen, or liquid has been spilled into

the aleiance.

The appliance has been exposed to rain.

The appliance does not appearta operate normally

or exhibits a marked change in pertorrnance.

The appliance has been dropped or the enclosure

damaged.

SERVICING 7 The user should not attempt to service
the appliance beyond that described in the
operating instructions. All other servicing should
be referred to qualified service personnel.

ELECTRIC

GROUND CLAMPS

OUTDOOR ANTENNA GROUNDING 7 if an outside
antenna is connected to the antenna terminal, he
sure the antenna system is grounded so as to
provide some protection against voltage surges
and built-up static charges.

In the USA. section all) at the National Electrical
Code, ANSI/NFPA 70, provides information with
respect to proper grounding at me mast and
supporting structure, grounding of the lend-in wire
to an antenna discharge unit. sire of grounding
conductors, location of antenna discharge unit.
connection to grounding electrodes, and
requirements for the grounding electrode See Fig.
A. '

CART 7 An appliance and cart combination Should be
moved with care. Quick stops, excessive force, and
uneven surfaces may cause the appliance and cart
combination to overturn.

NEC - NATIONAL ELECTRIC CODE

ANTENNA

ANTENNA
DISCHARGE UNIT
(NEC SECTION 810 7 20)

GROUNDING CONDUCTORS
(NEC SECTION 810 7 21)

'<-_ POWER SERVICE GROUNDING
ELECTRODE SYSTEM

FIG. A (NEC ART 250, PART H)

2
< RRE1057 >
En
