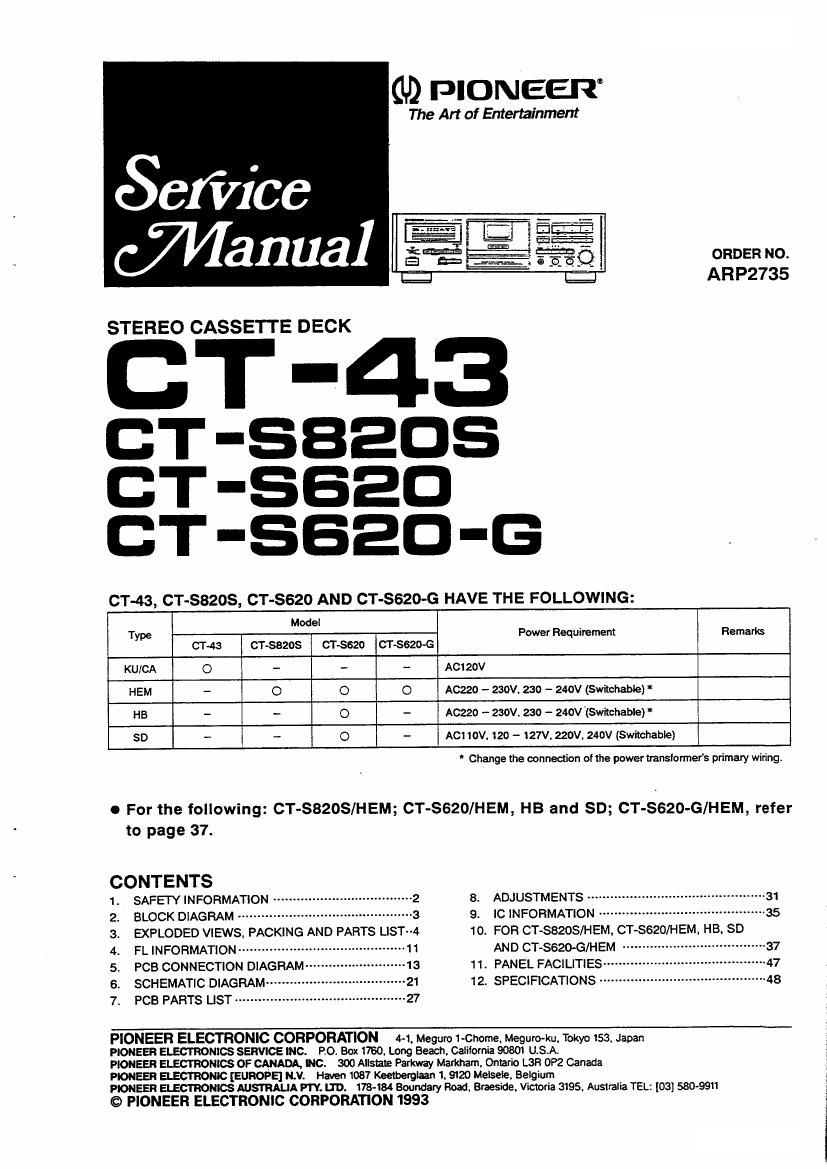

Page 1

GD PIONEER

The Art of Entertainment

Sefiice
Wanna]

512$ '7
ORDER NO.
ARP2735

STEREO CASSETTE DECK

CT '43
CT 63205

GT -5620
CT -SEED-G

CT-43, (IT-$8205, CT-SGZO AND CT-SSZO-G HAVE THE FOLLOWING:
ModeI

Type Power Requirement Remarks

CT 43 CT-S8208 CTSSZO CT~SSZO~G
KU/CA O - ' '-
H EM - 0

HB - "

AC1 20V

O Aczzo - 230V, 230 - 240v (SwiIchabIe) *

- Ac220 - 230v. 230 - 240v (Switchable) *

SD - -

OOO

- AC1 10V. 120 - I27V. 220V. 240V (Switchable)

Change the connection of the power transIormers primary wiring.

. For the following: CT-SBZOS/HEM; CT-SGZO/HEM, HB and SD; CT-SGZO-G/HEM, refer
to page 37.

CONTENTS

1. SAFETY INFORMATION ..... 2 a. ADJUSTMENTS -----

2. BLOCK DIAGRAM ------------ 9. IO INFORMATION --

a. EXPLDDED VIEws, PACKING AND PARTS LlST--4 10, FOR CT sazoS/HEM. OT-Sszo/HEM, HB SD

4. FL INFORMATION --------------------- ....11 AND CT same/HEM

5. PCB CONNECTION DIAGRAM- 11. PANEL FACILITIES ----- «47
s. SCHEMATIC DIAGRAM ----- 12. SPECIFICATIONS ~~~~~~ --48
7. PCB PARTS UST -------------

PIONEER ELECTRONIC CORPORATION

4-1. Megurc 1-Chome, Meguro-ku. Tokyo 153. Japan

PIONEER ELECTRONICS SERVICE INC. PO. Box 1760. Long Beach. California 90801 U.S.A

PIONEER ELECTRONICS OF CANADA. NC. 300 AlIstaTe Parkway Markham OnIario L3H 0P2 Canada

PIONEER moum [EUROPE] m1. Haven 1087 Keetbe'glaan I 9120 MeIseIe BeIgium

PIONEER ELECTRONm AUSTRALIA PW. un. 178-184 Boundary Road. Braeside Victoria 3195 Auslelia TEL: [03] 580.9911
© PIONEER ELECTRONIC CORPORATION 1993

Page 2

CT-43

'1 . SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void
the warranty. If you are not qualified to perform the repair of this product properly and safely, you should

not risk trying to do so and refer the repair to a qualified service technician.

WARNING

Lead in solder used in this product in liated by the California Health and Welfare agency as a known reproductive toxicarrt which

may cause birth defects or other reproductive harm (Calilornia Health & Safety Code. Section 35249.5).

When servicing or handling circuit boards and other components which contain lead in solder. avoid unprotected skin contact with

the solder. Also. when soldering do not inhale any amoka or turned produced.

NOTICE
(FOR CANADIAN MODEL ONLY)

Fuse symbols E- (fast operating fuse) and/or ~El} (slow operating fuse) on PCB indicate that replacement parts

must be of identical designation.

REMARQUE
(POUR MODELE CANADIEN SEULEMENT)

Les symboles de fusible a (fusible de type rapide) etlou E- (tusible de type lent) sur CCl indiquent que les

pieces de remplacement dcivent avcir la meme designation.

(FOR USA MODEL ONLY)
1 . SAFETY PRECAUTIONS

The following check should be performed for the
continued protection of the customer and service
technician.

LEAKAGE CURRENT CHECK

Measure leakage current to a known earth ground
(water pipe. conduit. etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or

metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft. etc.). Plug
the AC line card of the appliance directly into a 120V
AC 60Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5mA.

A- Reading should

0
Leakage not be above
current 0-5'"A

tester

Device
under
test

Test all
exposed metal
surfaces

0 Also test with
plug reversed
(Using AC adapter
plug as required)

Earth
ground

AC Leakage Test

equivalent between the earth ground and all exposed,

ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A P0-
TENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED BEFORE RETURNING THE APPLIANCE TO
THE CUSTOMER.

2. PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the appli-
ance have special safety related characteristics. These
are often not evident from visual inspection nor the
protection afforded by them necessarily can be ob-
tained by using replacement components rated for vol-
tage, wattage, etc. Replacement parts which have
these special safety characteristics are identified in
this Service Manual.

Electrical components having such features are

identified by marking with a A on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
dose not have the same safety characteristics as the
PIONEER recommended replacement one, shown in
the parts list in this Service Manual, may create shock,
fire, or other hazards.

Product Safety is continuously under review and
new instructions are issued from time to time. For
the latest information, always consult the current
PIONEER Service Manual. A subscription to. or ad-
ditional copies of, PIONEER Service Manual may be
obtained at a nominal charge from PIONEER.
