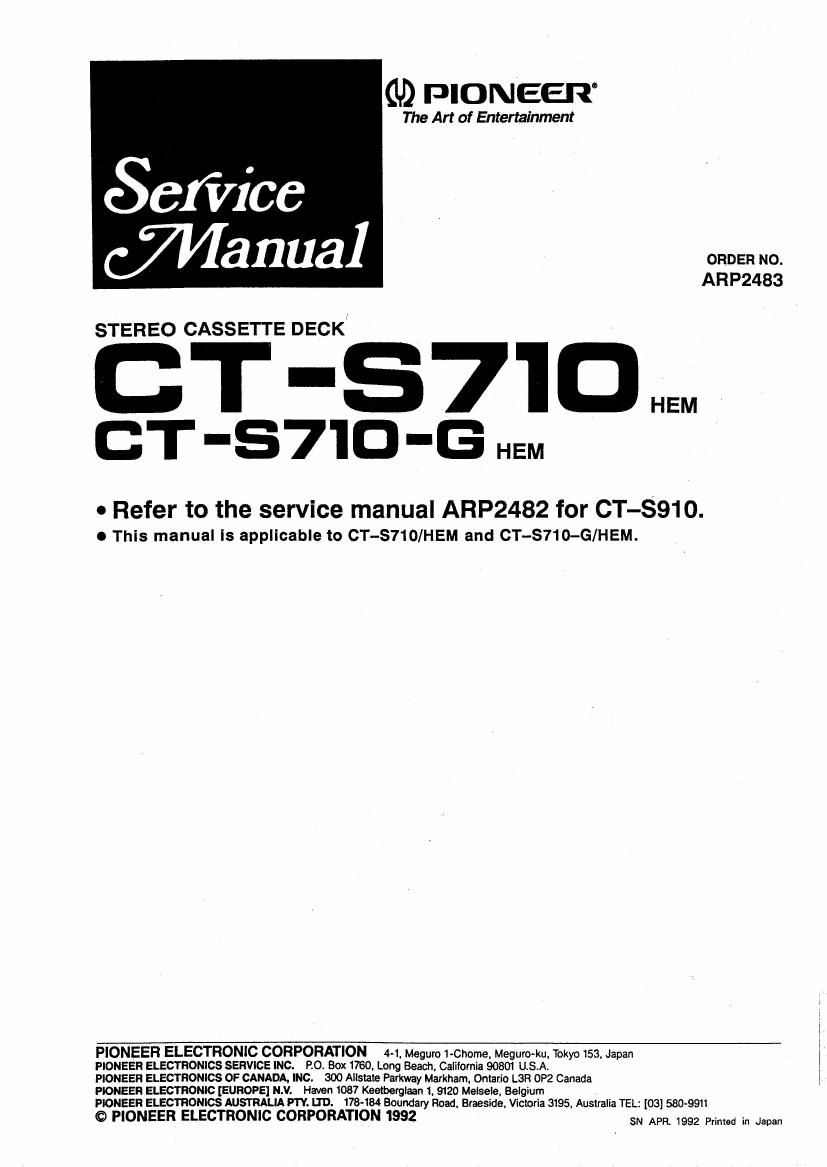

Page 1

(U) PIONEER

The Art of Entertainment

ORDER NO.
ARP2483

STEREO CASSETTE DECK

CT -S7'ID.EE

CT 5710 "'G HEM

. Refer to the service manual ARP2482 for CT-3910.
o This manual Is applicabie to CT-S710/HEM and CT-S710-G/HEM.

PIONEER ELECTRONIC CORPORATION 4-1, Megum 1-Chome, Meguro-ku. Tokyo 153. Japan

PIONEER ELECTRONICS SERVICE INC. 90 BOX 1760, Long Beach, CZIIIOMIE 90801 USA

PIONEER ELECTRONICS OF CANADA, INC. 300 AIISIaIB Parkway Markham, Ontario L39 0P2 Canada

PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087 Keetbergfaan 1, 9120 Meisele, Beigium

PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 173484 Boundary Road. Braeside, Wctoria 3195, Auslraiia TEL: (03] 580-9911

9 PIONEER ELECTRONIC CORPORATION 1992 SN AFR 1992 mm in Japan

Page 2

CT-S71 O, CT-S71 O-G

CONTRAST OF MISCELLANEOUS PARTS

NOTES:

- Pans without part number cannot be supplied

- The A mark found on some component pans indicates the importance of the safety factor of the part Therefore. when replacing. he sure to use parts of
identical designation.

~ Parts marked by Q" are not always kept in stock Their delivery time may be longer than usual or they may be unavailable

CT-S710/HEM, CT-S710-G/HEM and CT-8910/HEM have the same construction except
for the following:

Part No.
Mark Symbol & Description CT .391 0/ CT -S71 0/ CT $71 0~Gl Remarks
HEM type HEM type HEM type

CONTROL unll Non supply Non supply Non supply
BALANCE VR unit Non supply Non supply Non supply
FL unit Non supply Non supply Non supply
FUNCTION uniI Non supply Non supply Non supply
BIAS unit Non supply Non supply Non supply
HEADPHONE unit Non supply Non supply Non supply
VR unit ' ------ Non supply Non supply
MAIN unit Nan supply Non supply Non supply

G) Mechanism unit RYM1152 RYM11$1 RYM1161

A AC power cord ADGl 036 PDGI 003 PDG1003

A Power transformer RTT1201 R'IT1 202 FITI'1202
VR ring RATIO RAT1011 RAT1010
VR knob ------ RACI707 RACI708
FL lens RAH201 9 RAH2032 RAH2082
Function knob RACI'IM RACI706 RACWII
Slide SW knob RAC1582 RACI 562 RACISM)
Balance knob RAC1705 RACI705 RACIGBZ
Power button » RAC1703 RACI703 FIA61657
Packing case RHG1353 RHG1357 HHS-1358
Panel slay , RNT1139 RNT1140 RNT1141
Washer ABEIOOQ
Washer RBF1019 - - ~
Cord with mini plug ------ PDE-31 9 PDE-319
VR knob assembly RXA1472 - - : - ~ - - .
Bonnet RXXI 505 RXX1516 RXXI 508
Doorassembly RXX1514 ------
Front panel assembly RXX151 0 RXX1511 RXX1512

MECHANISM Unit
Mechanism Unit RYM1161 and RYM1152 have the same construction except for the
following:

Part No.
Mark Symbol & Description Remarks

RYM1152 RYM1161
Screw RBA1074 REA-064
Spring RBH1226 ------
Bell HEB-501 REBI I43
Insulator REB1099 ------
Rubber cushion ------ REB1125
Motor bracket FINK1497 ------
Capstan motor assembly RXM1016 RXX1491
Capstan motor ------ RXM1054
Head base assembly RXX1443 RXX1523
