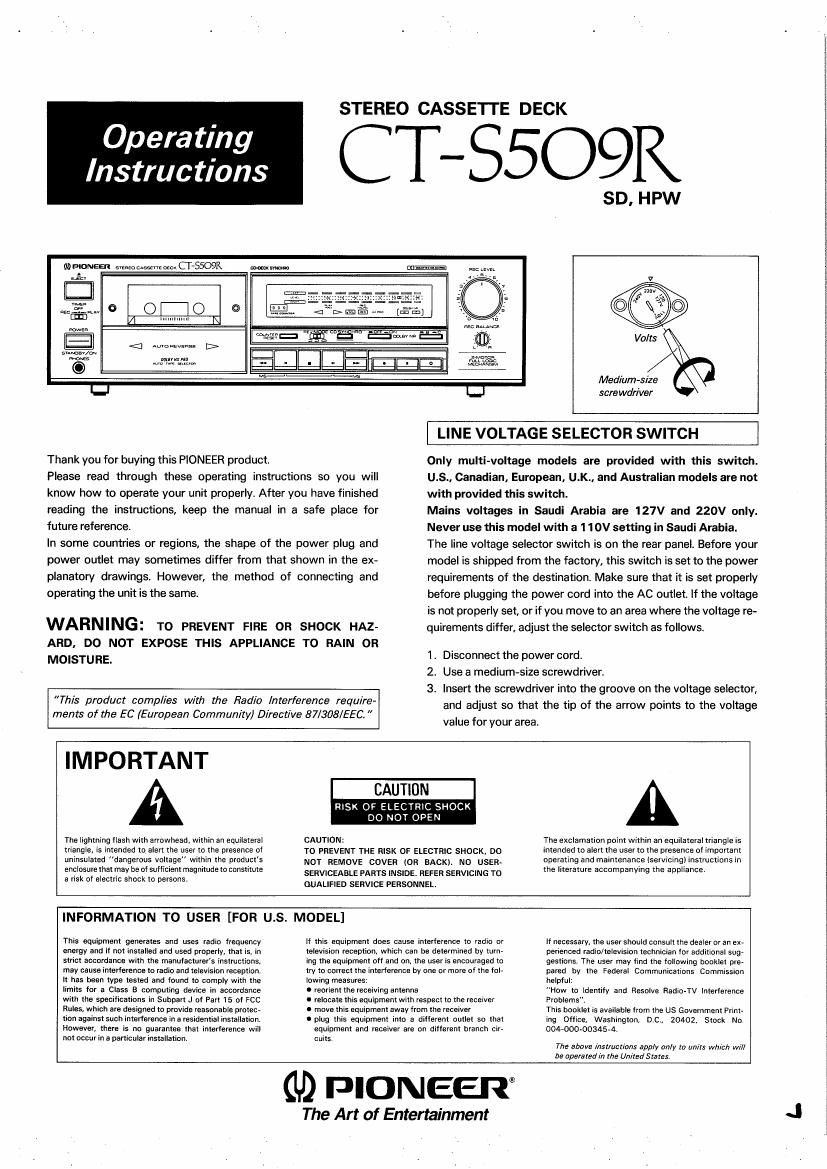

Opera ting

Instructions

STEREO CASSETTE DECK

(V) nloiuazn svsaso onseervsoecx CI-SSO9K
a

m o Ol-lO a

see:

< aumasosaaa >

sunnav/ow
norms lain-hum

Medium-size

Thank you for buying this PIONEER product.

Please read through these operating instructions so you will
know how to operate your unit properly. After you have finished
reading the instructions, keep the manual in a safe place for
future reference,

In some countries or regions, the shape of the power plug and
power outlet may sometimes differ from that shown in the ex-
planatory drawings. However, the method of connecting and
operating the unit is the same.

WARNING: TO PREVENT FIRE on SHOCK HAZ-
ARD. DO NOT EXPOSE THIS APPLIANCE T0 RAIN on
MOISTURE.

This product complies with the Radio interference require-
ments of the EC {European Community) Directive 87/308/EEC. "

I-I screwdriver

l LINE VOLTAGE SELECTOR SWITCH

Only multi~voltage models are provided with this switch.
U.S., Canadian, European, U.K., and Australian models are not
with provided this switch.

Mains voltages in Saudi Arabia are 127V and 220V only.
Never use this model with a 1 10V setting in Saudi Arabia.
The line voltage selector switch is on the rear panel. Before your
model is shipped from the factory, this switch is set to the power
requirements of the destination. Make sure that it is set properly
before plugging the power cord into the AC outlet. If the voltage
is not properly set, or if you move to an area where the voltage re-
quirements differ, adjust the selector switch as follows,

1. Disconnect the power cord.

2. Use a medium-size screwdriver.

3. Insert the screwdriver into the groove on the voltage selector,
and adjust so that the tip of the arrow points to the voltage
value for your area.

IMPORTANT

The lightning ilash with arrowhead, within an equilateral
triangle, is inrended to alcn the user ID the presence or
unlnsulated dangerous voltage" within the produci's
enclosure that may be oi suiiicianl magnitude to constitute
a risk oi electric shock in persons.

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). N0 USER»
SERVICEABLE PARTS INSIDE. REFER SERVICING To
QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is
inrended to alert rha user to ma presence at Important
operating and maintenance lssrvicingl insrruclions in
the literature accompanying the appliance.

This equipment generates and uses radio frequency
energy and it not installed and used proparly, that is, in
strict accordance with the manulaciulev's instructions,
may cause interference to radio and television reception.
It has been type tested and mod to comply with the
limits for a Class a computing device in accordance
with the specifications in Subpart J oi Part 15 or FCC
Rules, which are designed lo provide reasonable protec-
tion against such iniorisrence in a residential installation.
However. there is no guarantee that inierierence will
not occurin a pamcular installation.

INFORMATION TO USER [FOR U.S. MODEL]

ii this souipmani does cause inrariaranca lo radio or

television reception, which can he determined by turn.

ing the souipmonl on and on, the user is encouraged to

lry to correct lhe inisriarenca by one or more oi iha inl-

lowing measures:

a reorient the receivan antenna

- relocate this souipmoniwiih resoacl to the receiver

9 move this aouiomanr away irorn the receiver

- plug this equipment into a oiirereni ouilel so that
equipment and receiver are on dillerent branch cir-
culls

If necessary. the user should consult inc dealer or an ex»
penenced radio/television technician tor additional sug
gestions. The user may irnd the following booklet pre-
pared by the Federal Communicauons Commission
helpful

How to ldaniily and Resolve deio-rv Interference
Problems".

This booklet is available train the us Government Prlnl-
ing orlice, Washington, no, 20402. Stock No
0047000-00345-4.

The above Instluclions apply only to units which wr/I
be operated in the United Siam.

(U) PIONEEIT

The Art of Entertainment

Page 2

INSTALLATION . .
MAINTENANCE. . I . .
HANDLING CASSETTE TAPES .............................
CONNECTIONS ............
FRONT PANEL FACILITIES
PLAYBACK ................ I . .
MUSIC SEARCH ........................................

CONTENTS

N

7

RECORDING. I

RECORDING MUTE . . . I .
RECORDING AND PLAYBACK USING AN AUDIO TIMER. . ..
CD-DECK SYNCHRO RECORDING
TROUBLESHOOTING
SPECIFICATIONS ......

NOLDQOCOCD

INSTALLATION

MAINTENANCE

When installing the deck, avoid locations with high
temperatures or humidity, and make sure that the
deck receives adequate ventilation.

I Do not install the deck in locations subject to direct sunlight or near a
space heater or other heating device, as this may cause damage to
the finish or the internal parts.

I Malfunctions may also result it the deck is installed in an excessively
humid or dusty location Do not install the deck next to kitchen count-
ers or other locations subjectto oily smoke or humidityI

I If the deck is placed directly on top of an amplifier, it may pick up
humming or other noise. Also, if the amplifier generates a large
amount of heat, the deck may malfunction.

I If the deck is located near a television set, it may pick up interference
noise, which will be recorded as a whistling sound on the tape. If this
happens, move the deck further away from the television set or turn

the television set off when operating the deck.

I Do not place a cloth over the deck, or block the ventilation slots in
any other way The ventilation slots on this deck are necessary to
keep internal parts cool. if they are blocked, the deck may
malfunction.

CONDENSATION (DEW)

When the deck is moved from a cold location to a warm location, or
when the temperature of the room changes suddenly, condensation may
form on the surface of the mechanical parts, and adversely affect the
periom'tance of the deck. In such cases, wait for about one hour to allow
the deck to adjust to the room temperature.

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the plug by tugging
the cord and never touch the power cord when your hands are wet as
this could cause a short circuit or electric shock. Do not place the unit,
a piece of furniture, etc., on the power cord, or pinch the cord Never
make a knot in the cord or tie it with other cords. The power cords
should be routed such that they are not likely to be stepped on. A
damaged power cord can cause fire or give you an electrical shock
Check the power cord once in a while. When you find it damaged, ask
your nearest PIONEER authorized service center or your dealer for a
replacement.

2

Cap... g;
%o
%

Pinch roller

Combination head

Capstan
Pinch roller

CLEANING THE HEADS, PINCH ROLLERS AND
CAPSTANS

The heads, pinch rollers and capstans are likely to get dirty quite easily. If
these parts; particularly the heads; get dirty, the high frequency compo-
nents of a recording will not be reproduced and the stereo balance will be
impaired, resulting in a deterioration of the playback sound. it is therefore
recommended that the head section be cleaned reg ulafly.

1. Set the POWER switch to STANDBY.
2. Press the EJECT button to open the cassette door.

3. Dip a cleaning swab in cleaning fluid and use it to wipe the heads,
capstans and pinch rollers.

NOTE:
After cleaning the head section, do not load a tape until the cleaning fluid
has dried completely (about 2 or 3 minutes).

DEMAGNETIZING THE HEADS

After using the cassette deck for a period of time. the heads will become
magnetized. The same effect will occur if a magnetized screwdriver,
magnet, or other magnetized object is brought too close to the heads.
When the heads become magnetized, high frequency sounds will be lost
during recording or playback, and interference noise may also occur. The
heads should be regularly demagnetized with a head demagnetizer,
which can be purchased at most audio stores.

When demagnetizing the heads, make sure that the POWER switch of
the cassette deck is set to STANDBY. For detailed instructions, refer to
the operating instmctions of the head demag netizerI

CLEANING THE FRONT PANEL

Clean the deck regularly with a soft cloth. If the front panel gets dirty or
greasy, clean it with a damp cloth and mild soap, then wipe it dry with a
soft cloth Never use volatile cleaners like thinners, benzine or alcohol be-
cause they will damage the panel finish.
