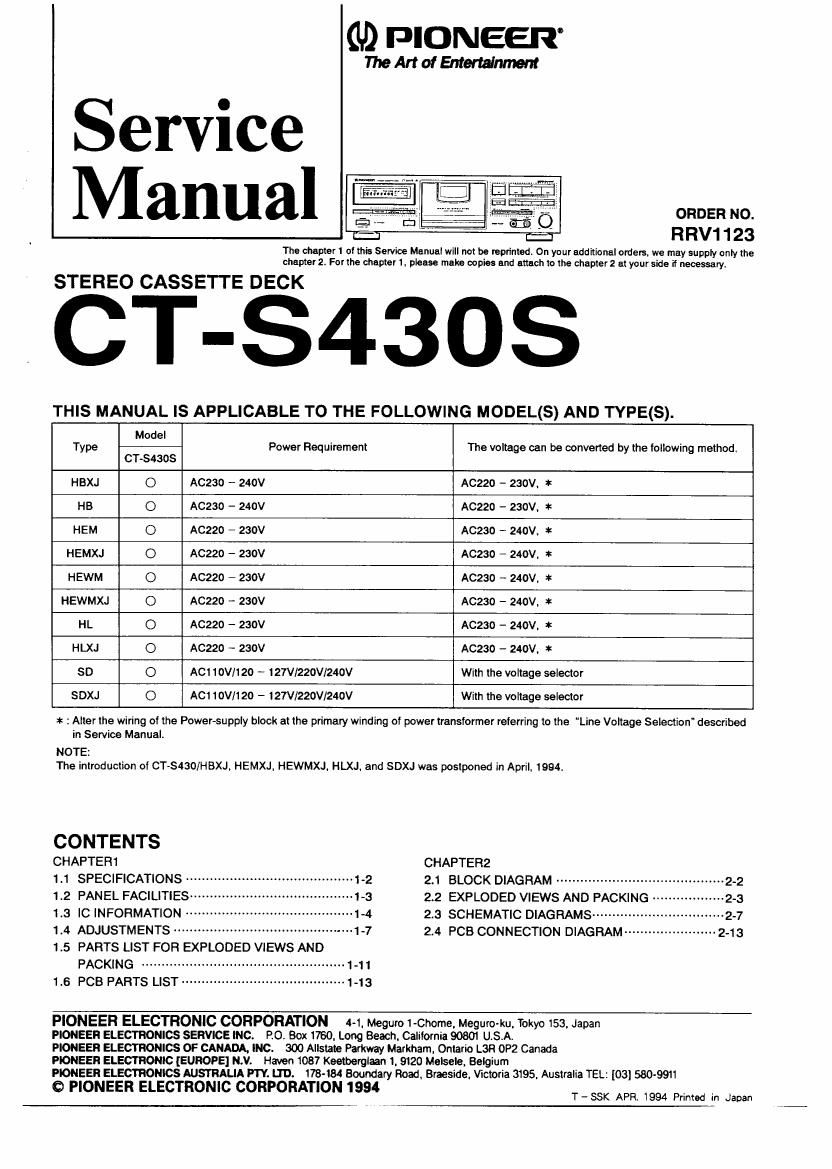

Page 1

(U) PIONEER

WMolEnterunm

Service

Manual

ORDER NO.

RRV1123

The chapter I a! this Service Manual will not be reprinted. On your additional orders. we may supply only the
charter 2. For the chapter 1, please make copies and mulch to the chamerZ at your side it necessary.

STEREO CASSETTE DECK

CT-S43OS

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Type Model Power Requirement The voltage an be converted by the following method.
CT-SASOS
HBXJ O AC230 - 240V A0220 - 230V. 3:
H3 0 A0230 - 240V AC220 - 230V, *

HEM O AC220 , 230V A6230 - 240V. *
HEMXJ O Aczzo - 230v A0230 7 240v, a:
HEWM O A0220 - 230V A0230 ~ 240V, *

HEWMXJ O AC220 - 230V A6230 - 240V. *
HL 0 Aczzo - 230v Aczao - 240v, a:

HLXJ O A0220 - 230V A0230 - 240V, *

SD 0 AC1 10V/l20 ~ 127V/220V/240V With the voltage selector

SDXJ O AC1 HIV/120 - iZTV/220V1240V With the voltage selector

* : Alter the wiring of the Power-supply block at the primary winding oi power transformer referring to the Line Voltage Selection" described

in Service Manual.
NOTE:

The introduction of CT-SAaO/HBXJ. HEMXJ, HEWMXJ, HLXJ. and SDXJ was postponed in April. 1994.

CONTENTS

CHAPTER1

1.1 SPECIFICATIONS .......................................... 1.2
1.2 PANEL FACILITIES~~ ..... 1.3
1.3 IC INFORMATION ..... 1.4

1.4 ADJUSTMENTS ............................................. 1_7

1.5 PARTS LIST FOR EXPLODED VIEWS AND
PACKING ...........

15 FOB PARTS LIST.

---1-11
---1-13

CHAPTERZ

2.1 BLOCK DIAGRAM ...............................
2.2 EXPLODED VIEWS AND PACKING -
2.3 SCHEMATIC DIAGRAMS ----------------
2.4 PCB CONNECTION DIAGRAM ----------------

PIONEER ELECTRONIC CORPORATION 4-1. Meguro 1-Chome, Meguro-ku. Tokyo 153, Japan

PIONEER ELECTRONICS SERVICE INC. R0. BOX 1760. Long Beach. CaliIorrIia m U.S.A.

PIONEER ELECTRONICS OF CANADA. INC. 3W Allstate Parkway Markham, Ontario L3H 0P2 Canada

PIONEER ELECTRONIC [EUNOPE] N.V. Haven 1037 Keetberglmn I, 920 MOISEIC, Belgium

PIONEER ELECTRONICS AUSTRALIA P'W. LTD. 178484 Boundary Road. Braeside, Victoria 3195, Australia TEL: [03) 580-9911

0 PIONEER ELECTRONIC CORPORATION 1994

T-SSK APR. 1994 Printed in Japan

Page 2

CT-S4308

1.1 SPECIFICATIONS

System.
Heads

............................... 4 track, Z-channel stereo
ard Permalloy" recording/playback head X l
Ferrite erasing head X 1
Motor ................................................................. DC servo motor X 1
Wow and Flutter ............................................... 0.070% (WRMS, JIS)
10.18% (DIN)
Fast Winding Time ......... ....Approx, 100 seconds (060 tape)
Frequency Response (at #20 dB recording level)
TYPE IV (Metal) tape.,. 25 to 18,000 Hz (16 dB)
TYPE II (High/CrOz) Tape 2510 174000 Hz (:6 d8)
TYPE I (Normal) Tape 25 to 17,000 Hz (16 dB)
Signal-to-Noise Ratio (Dolby NR OFF)

Dolby NR 0" ..................................................... More than 57 dB
Noise Reduction Effect
Dolby B-type NR 0N ........................ More than 10 dB (at 5 kHz)

Dolhv C-type NR 0N.
Dolby S»type NR ON.

, More than 19 dB (at 5 kHz)
, More than 22 dB (at 5 kHz)

(CT-S4305 only)
Harmonic Distortion ........................................ No more than 10%
(at -4 dB: 160 nwb/m)

Input (Sensitivity)
LINE (lNPUT) ........................... 100 mV (Input impedance 67 k9)
Output (Reference level)
LINE (OUTPUT) .........
Headphone (PHONES).

.,0.5 V (Output impedance 2] k9)
.133 mW (Load Impedance 32 Q)

CHAPTER 1

Miscellaneous

Power requirements
U.K,, model...............r.....
Australian model.

Power consumption.

WAC 230-440 Volts~. 50/60 Hz
AC 240V. 50/60 Hz
................... 16 W

Dimension 1420 (W)><125 [HIXZBO (D) mm
Weight (without package)
U.K. model and Australian model ...................................... 38 kg
Subfunctions
O Dolby B~type, C-tvpe and S-type NR systems (CT-$4305)
O Dolby Brtype and C-type NR Systems ((315330)
c DOLBY HX PHD system
I Auto tape selector (TYPE I, II, IV)
- Headphones jack
0 4-digit electronic tape/time counter
o Music search up to 115 selections
0 Automatic space recording mute
C SUPER AUTO BLE tuning system
0 FL level meter 7 + 1 segments (with peak hold)
0 Ba] System remote control available
0 CD - DECK SYNCHRO function
0 FLEX system
3 Display all
0 Last memory
0 Timer play
Accessories

Operating instructions
Connection cord with pin plug
Remote control cord .......
CD - DECK SYNCHFIO control cord

_._.~_.

NOTE:
Specifications and design sub/eel to possible modificalions with-
oul notice, due to improvements.
